Laser Welding and Cleaning

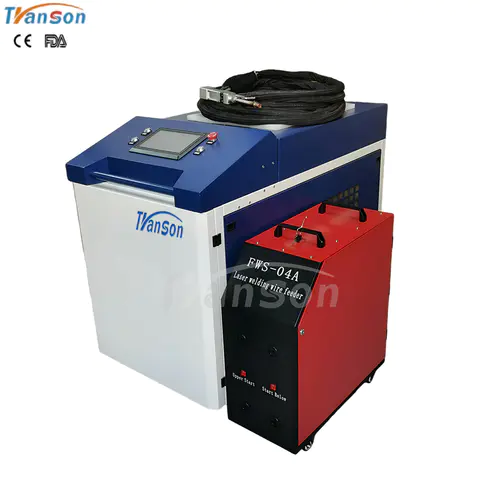

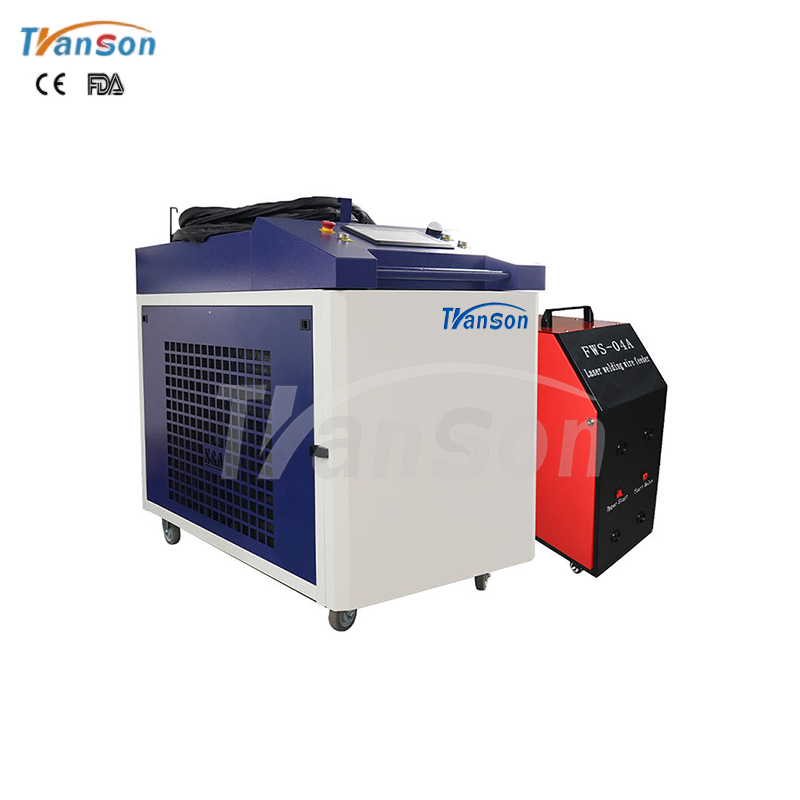

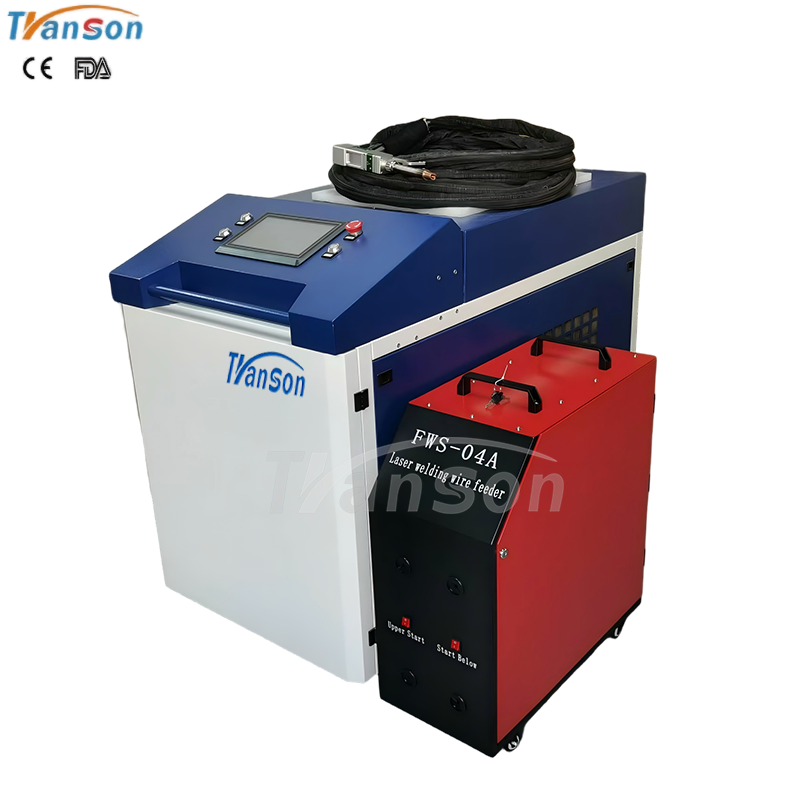

Laser welding machine-with four-wire feeder laser welding machine welder 6000W

Fiber Model: TSF

Power: 6000W

Cooling way:Water cooling

Operation way:Handheld model

Laser Wavelength:1064nm

这里可以自定义设置

Laser welding machine-with

four-wire feeder

The 6000W laser welding machine is equipped with a 4-wire feeder that can simultaneously feed two or four wires,It is designed to meet the needs of heavy-duty jobs and high-precision welding applications. It excels in welding thick metals, capable of welding carbon steel up to 14mm thick, and aluminum plates up to 10mm thick.

This versatile feature makes it ideal for a wide range of welding applications, ensuring superior performance and reliability.

Machine video

6000W Four-Wire Welding Machine

6000W Four-Wire Welding Machine

Products Name	Fiber Laser Welding Machine-with four-wire feeder
Model	TSF
Laser Power	6000w
Cooling way	Water cooling
Laser Wavelength	1064nm
Laser Power	0-100%
Working temprature	0- 40 ℃
Voltage	380V,50-60hz, 3phase
Touch Screen	10-inch HD Display
Operation way	Handhold model
Maximum Weld Bead Width	3mm
Maximum Welding Thickness	Carbon steel up to 14 mm Stainless steel up to 14 mm Aluminum up to 10 mm
Optic cable length (bending radius≥250mm)	8m, can be customized
Working Humidity Conditions:	≤ 80%RH
Packing size	15708301550mm+770410980mm
Gross weight about	320kgs+45kgs

RODUCT DETAILS

Handheld Laser Head

It can be used forcontinuous welding of variousangles and positions.

Handheld Laser Head

Wire Feeding Nozzle

It can send two wires or four wires at the same time

Wire Feeding Nozzle

The operation is simple andclear,and the system supportsmultiple languages.

Control Panel

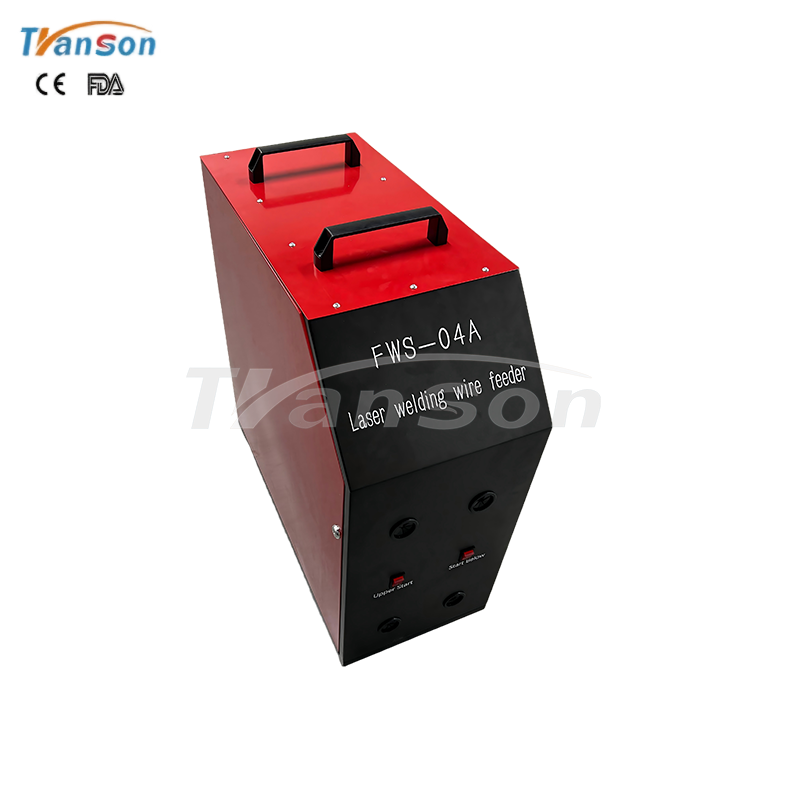

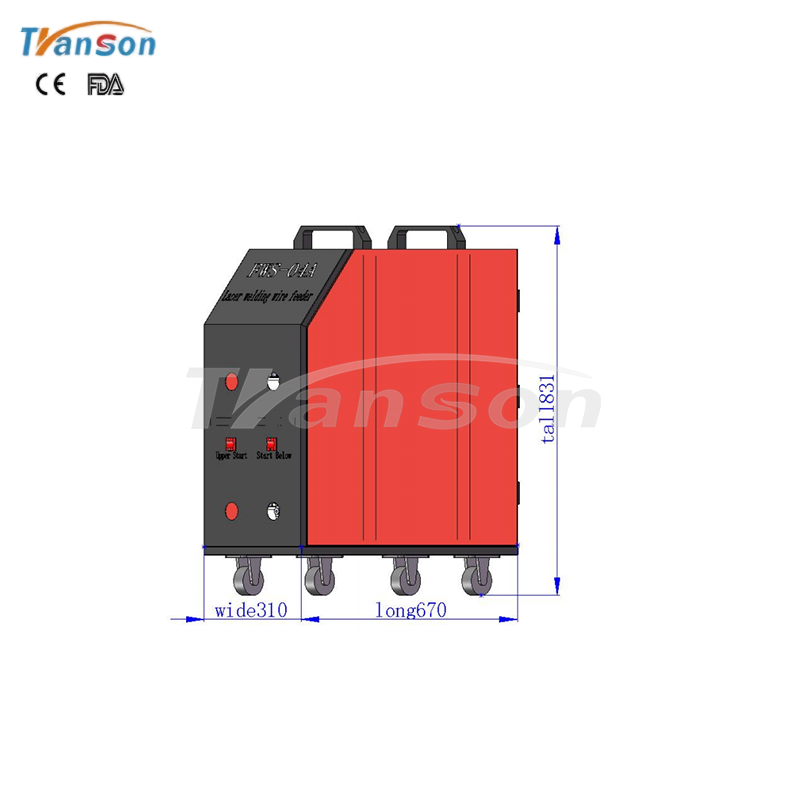

Four wire feeder

1. Employs a stepper motor, providing high torque output and ensuring smooth operation even under high speed and heavy loads. 2. The stepper motor enables precise position control, down to the millimeter level, ensuring synchronized wire feeding. 3. Wider weld bead range, up to 12mm, resulting in higher weld fullness. 4. Compatible with single-pendulum and double-pendulum welding heads up to 3000W. 5. Can feed two or four wires simultaneously. 6. Maximum wire diameter up to 2mm, minimum 1.2mm.

Four wire feeder

APPLICATION

1. Wide weld seam: Maximum weld seam width up to 3mm

2. Wide weld bead: Maximum weld bead width up to 12mm

3. High fillet: Weld height up to 3mm

10mm aluminum plate

10mm aluminum plate

Effortless Weld Aluminum Up to 10mm

10mm carbon steel

10mm carbon steel

Weld Carbon Steel Up to 14mm Thick with Precision and Strength.

Carbon steel fillet weld

Carbon steel fillet weld

High fillet: Weld height up to 3mm

11mm thick carbon steel wide seam welding

11mm thick carbon steel wide seam welding

Wide weld seam: Maximum weld seam width up to 3mm Wide weld bead: Maximum weld bead width up to 12mm

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
