Key Chains Making Desktop Metal Fiber Laser Marking Machine...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.001mm

Graphic Format Supported:: AI, BMP, Dst, DXF, PLT

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD Software

Place of Origin:: Shandong, China

Brand Name:: TRANSON

Model Number:: TSF-20

Certification:: ce, ISO, FDA

Laser source:: JPT

Warranty:: 2 Years

Applicable Material:: Metal Plastic

Marking Speed:: 0-7000mm/s

Laser wavelength:: 1064mm

Marking Depth:: 0-1mm (according materials)

Laser Power:: 30W Optional

Packing:: standard export cases

Laser Head:: galvonometer head

Keywords:: Fiber Laser Markng Machine

After-sales Service Provided:: Engineers available to service machinery overseas

Power:: 20w

Supply Ability

Supply Ability:: 300 Set/Sets per Month

Product Description

Fiber laser marking machine is the use of laser beam in a variety of different material surface marked with a permanent mark. Effect of marking is exposed deep substance through the surface material evaporation, showing the required the etching pattern, text, and other types of bar code graphics.

Benefits of Fiber Laser Marking Machine

1).Environmentally friendly: Using no harsh chemicals during the process. No need water chiller to cool, small size small occupation, can be easily installed in many places.

2).Cost-effective: No maintenance during the 100,000 hours working life. One machine can be used in many different materials & industry. Minimal part replacement.

3).High efficiency: Computer operated, suitable for automatically processing(like production line, automatically filling line).

Model	TSF20 deaktop model
Laser type	Fiber Laser
Laser power	20W
Beam quality	M2< 1.5
Laser wavelength	1064±1 nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~250KHz
Power supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling system	Air Cooling
Graphic format supported	DWG.DXF.PLT.CNC.GBR.DST.AI.BMP
	XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Working area	110mm110 mm(Standard) can choose 5050mm
Marking depth	<1mm
Marking speed	<5000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300-600W
Operation temperature	0~40°C
Operation system	Microsoft Windows system
Operating environment	Clean and free of dust, focal

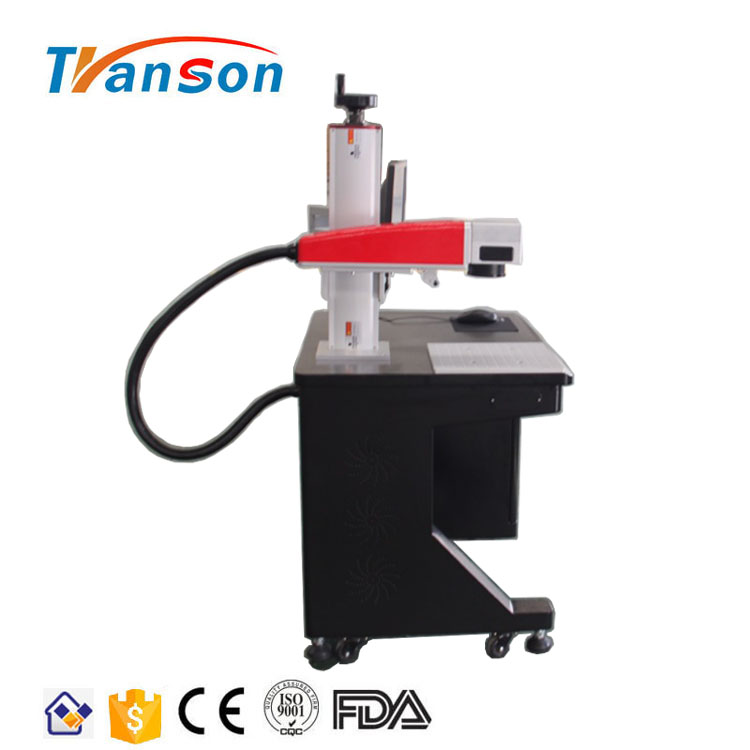

Product Display

Product Detials

Application

1.Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

2.Applicable Materials

Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
