JPT E Series 20W MOPA Fiber Laser Marking Machine Desktop Type for Metal Silver Steel Aluminum Gold Bronze Affordable

这里可以自定义设置
JPT E Series 20W MOPA Fiber Laser Marking Machine Desktop Type for Metal Silver Steel Aluminum Gold Bronze Affordable
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Marking
Working Accuracy:
0.001mm
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, JPEG
Laser Type:
Fiber Laser
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
JPT
Control System Brand:
BJJCZ
Marking Head Brand:
Sino
Weight (KG):
115 KG
Key Selling Points:
Easy to Operate
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support
Local Service Location:
United Kingdom, Philippines, Peru, Pakistan, Russia, Romania
Showroom Location:
United Kingdom, Philippines, Peru, Pakistan, Russia, Romania
Marking Area:
110mm*110mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Machine
Working Voltage:
AC 220V 50HZ / AC 110V 60HZ
Laser wavelength:
1064nm
Marking area:
110*110mm/175*175mm/200*200mm/300*300mm
Type:
Desktop
Laser source:
JPT
Laser Power:
20W
Product Keywords:
Mopa
Function:
Colour Mark
Power supply:
110V/220V
Lifespan of laser device:
100000 Hours
Supply Ability
Supply Ability:
300 Set/Sets per Month
Video Description

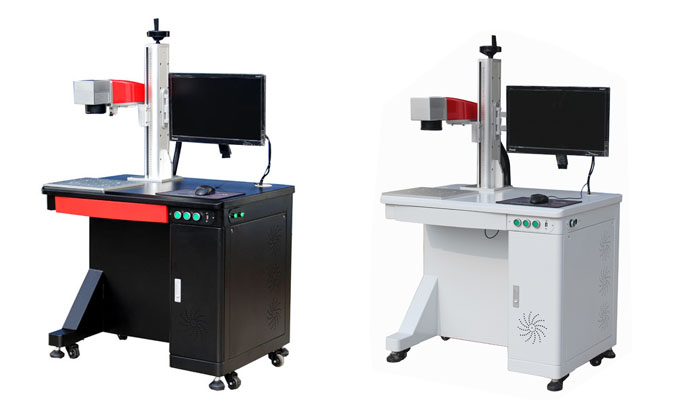

JPT E Series MOPA Color Fiber Laser Marking Machine

Product Description



Features of mopa laser:

1.Colourful marks on stainless steel.

2.Mark black on white plastic.

3.Mark white on black plastic.

4.Mark black on aluminum.



Application materials:

Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc

Alloy and metal oxides: Anodized Aluminum

Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.



Application Industry:

1.Electrical Engineering and Electrical part and component

2.Mobile (Cover, battery, keyboard, IPhone Case)

3.Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft

4.Building materials,PVC pipe

5.Car motor car spare part, Instrument and meters and cutting tool

6.plastic case,aviation and aerospace,

7.military product,hardware fitting and accessory,sanitary appliance

8.food and beverage ,Medicine package and medical instrument,solar Pv industry



Model

MOPA Fiber Laser Marking Machine

Laser Power

20W/30W/60W/70W/120W

Laser Wavelength

1064nm

Q-frequency

20KHz~30KHz

Divergence

0.3mard

Marking Range

110*110mm

Minimum Line Width

0.02mm

Minimum Character

0.15mm

Marking Depth

0 ~0.5mm

Repeatability Accuracy

±0.001mm

Beam Quality

M2:1.2~1.8

Marking Format

Graphics

Marking Format

Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,

Batchnumber,Serialnumber,Frequency,etc.

Graphic Format Supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

Working Voltage

220V±10%/50Hz/4A

Unit Power

<0.5kw

Laser Module Life

>100000 hours



Colorfu MOPA Samples:

Packaging & Shipping



Company Information

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer with ability of research and development, design and production. Our products include fiber laser marking machine, co2 laser marking machine, co2 laser engraving and cutting machine, cnc router and cnc plasma cutter. These machines have been exported to many countries, such as, United Kingdom, Poland, Hungray, Italy, Netherlands, Romania, United State, Mexico, Brazil, Canada, Australia, Korea, Russia, Peru, Chile and other more than 100 countries. Due to strict control for machine quality and good after sale service, Transon has won an excellent reputation in the global market.

Related

FAQ:

Q1: Are you a factory or trading company?

A: We are a manufacturer found in 2010.

Q2: Where are you located? How can we visit you?

A: Sure, welcome customer all over the world come visit us. We locates in Jinan city of Shandong, in the north of China.Tell us your flight number or train number, we will pick up you.

Q3: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can suggest you the most suitable machine . Please kindly tell us:

1)    .What work you will do? Mark, engrave or cut?

2). What’s the size and thickness of the material?

Q4: What's your payment terms? Delivery time and MOQ?

A: We accept T/T(bank transfer), L/C, Paypal,  West union, etc.

Usually we need 30% as deposit, balance paid before shipment.

Delivery Time: 7-10 days after payment

MOQ: 1set

This product is much more popular in end user's market. It is the perfect companion for a multitude of businesses, including sign makers, woodworkers, exhibition stand manufacture and general fabrication. This product comes with first-class technology and first-class service. It is the perfect companion for a multitude of businesses, including sign makers, woodworkers, exhibition stand manufacture and general fabrication.
