Italy 9 Kw Hsd Air Cooling Spindle Yaskawa Servo Motor...

Overview

Quick Details

Condition:: New

CNC or Not:: CNC

Place of Origin:: Shandong, China

Brand Name:: Transon

Model Number:: TSW1325-ATC

Voltage:: 380V/50HZ

Dimension(L*W*H):: 3600*2000*1800mm

Certification:: CE

Worktable size:: 1300mm*2500mm

Spindle power:: 9kw HSD air cooling from Italy

Spindle speed:: 0-24000rpm

Motor and driver:: Yaskawa servo motor

Control system:: Taiwan SYNTEC

Transmit way X/Y axis:: Rack and Opinion + Hiwin Square guide from Taiwan;

Z axis:: ball screw TBI

Worktable:: T-slot Vacuum table

Tool Storage:: Line Auto Tool Storage (8 pcs)

Removing way:: Gantry moving

Weight:: 3000KG

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 year

Power:: 9KW HSD

Supply Ability

Supply Ability:: 15 Set/Sets per Month as per the contract

Italy 9 KW HSD air cooling spindle YASKAWA servo motor SYNTEC control system Woodworking CNC Router

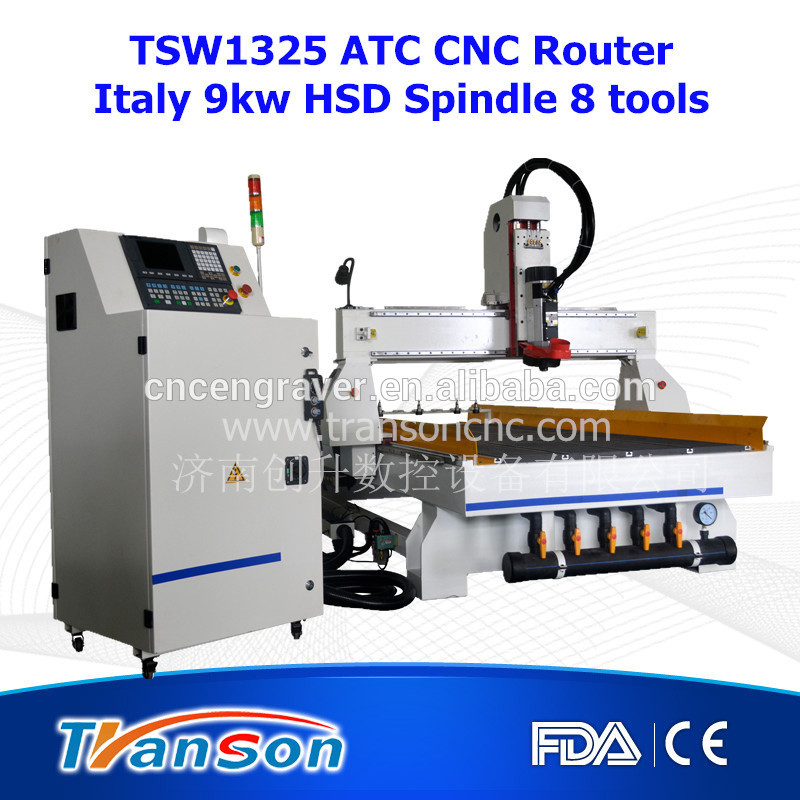

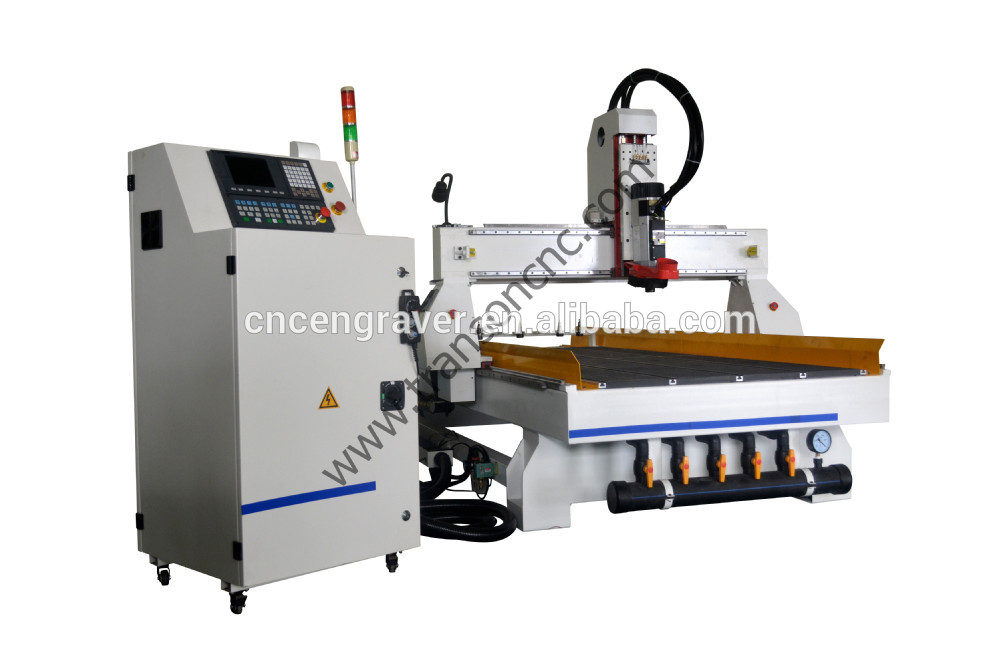

Machine picture:

Features of TSW 1325 ATC HSD 9 KW Woodworking CNC Router

♦ Suitable for diversification, production and processing of difficult mode, belonging precision high-efficiency processing equipment.

♦ Working table can be directly adsorbed whole big plate processing, does not require any action cropped.

♦ It can be any permutation and combination with vertical drilling, sidetracking, a single drill, drilling, and other multi-purpose drill mode.

Application of TSW 1325 ATC HSD 9 KW Woodworking CNC Router

♦ This machine suitable for processing wood door, decorative buckle line, paint doors, paint cabinet doors, bathroom cabinets and other plate;

♦ Advertising Industry: Logo, meeting sign board, signage, billboard etc;

♦ Artwork and Decoration Industry: wood crafts, gift wood box etc;

♦ Electronic Industry: circuit board, insulation material etc;

♦ Music Industry: musical instrument, loudspeaker box etc;

♦ Soft metal: aluminum, copper etc;

Parameter of TSW 1325 ATC HSD 9 KW Woodworking CNC Router

Modle	TSW1325-ATC
Working Area	1300mm(x)2500mm(y)300mm(z)mm (Z aixs high can choose)
Worktable size	1300mm*2500mm
Working table	T-Slot and Vacuum Table (combine)
Spindle	9.0KW HSD ATC, 24000rpm (Original Italian Spindle)
Transmitting System	X\Y axis Rack and Opinion + Hiwin Square guide from Taiwan; Z axis ball screw TBI
Tool Storage	Line Auto Tool Storage (8 pcs)
Control system	SYNTEC Control System ( support 3 Axis and 4 Axis)
Driving Motor	Yaskawa Servo Motors (Japanese Brand)
Processing Resolution	±0.02mm
Reposition Resolution	±0.03mm
Traveling Speed	Min 40000mm/min
Processing Speed	Min 20000mm/min
Voltage	380v/50hz 3 phase (220v/50hz can choose)
Body (bed)	Steel thickness min. 5mm
Gantry material	Steel thickness min.10mm
Inverter	11KW Delta inverter
Gearbox	Germany Eselle or Japan Shimpo can choose
Dust Collect	Can choose
Vacuum Pump	Chinese Vacuum Pump or Becker Pump can choose
Rotary device	Can choose
Note	Can be customized according to the requirements

Samples:

More machine models for reference:

We Jinan Transon CNC Equipment Co., Ltd have been engaged in manufacture cnc machine for many years, offering proffessional engraving and cutting solution to globle clients.

Do you want to cooperate with one company

who provide you good qualtiy machine with good price!

who friendly service for you all time!

who also willing to establish long term and reliable business relationship with you!

If, pls directly leave massage below, and kindly tell me:

1. machine models you need or worktable size

2. spindle power, or which kind of work you will do, cutting or engraving?

3. If cutting, how thickness materials you will cut, which kind of materials?

Thanks you!

24 hours service for you, please contact

email: laura(at)transoncnc.com

Skype: lauratranson

Whatsapp:+86 18653117691

Transon Laura waiting for share all machine information with you any time, just contact me!!!

TSW 1325 ATC HSD 9 KW Woodworking CNC Router

With continuous improvement, the product is believed to have greater sales growth in the future. It is suited for the use of rotary devices, allowing one to engrave cylindrical objects. After years of development, Jinan Transon CNC Equipment Co., Ltd. has accumulated a large number of consumer groups, domestic and foreign brand resources. It is suited for the use of rotary devices, allowing one to engrave cylindrical objects.

Italy 9 KW HSD air cooling spindle YASKAWA servo motor SYNTEC control system Woodworking CNC Router
