1. Applicable industry
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
2.Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.

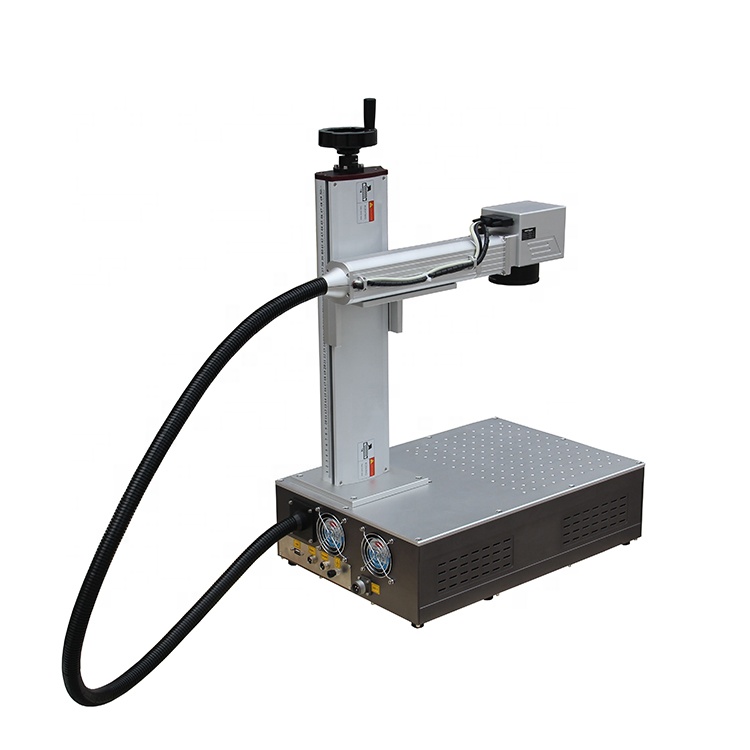

1, Super mini model fiber laser making machine, easy move around.
2.Wide range: Can be used on All metal and some nonmetal like plastic, leather, ABS,etc.
3.Permanent marking: It won’t fade, run or become less discernable as time passes.
4.Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
5).Easy to operate: Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop.
6).High precision: 0.003mm re-position accuracy. Minimum line width 0.01mm.
7.Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.
Parameters:
Model | TSF-20/ TSF-30 |
Laser source | Raycus brand (IPG, MAX, JPT optional) |
Laser power | 20W,30W |
Weave length | 1064 nm |
Marking area | 110*110mm,175*175mm,220*220mm,300*300mm,500*500mm |
Laser repetition frequency | 20KHZ-80KHZ |
Beam quality | M²:1.5 |
Marking speed | 7000-12000mm/s |
Marking depth | 0.01-1mm |
Repetition Precision | 0.01mm |
Minimum Line Width | 0.017mm |
Minimum Character | 0.2 mm |
Cooling Style | Air cooling |
Positioning Way | One inner red light and two out red light |
Laser Source Life Span | More than 100,000 hours |
Control software | JCZ EZCAD 2.12 Professional fiber laser marking software |
Supported Format | Bitmap: BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF Vector: AI, PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR |
Control board | ORIGINAL BJJCZ |
Operating Voltage | AC220V/50HZ/ or AC110V/60HZ |
Gross Power | ≤500W |
Supported Windows | Windows XP,7,8,10 |
Certificate | ISO, CE, FDA |
Material can be processed | all metal material and part of non-metal material,such as hard plastic |
Others | USB cable for connection, U flash disk with software and English manuals and install video. |
After-sales Service | Three years warranty for machine. Whole life maintenance. We offer overseas engineer service if needed. We accept user to our factory for free training. |
Packaging | Standard export plywood box |
Packaging Dimension | 780*480*420mm |
Gross weight | 50kg |
Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC Router and Laser equipment, specialized in researching and studying the application in advertising, woodworking, laser and other fields.
We guarantee everything is under our inspection and control, including the selection of raw materials, assembly technology, testing, packaging, and fast technical support and good after-sales service.
If you are interested in our products, please do not hesitate to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010.
Q2: Where are you located? How can we visit you?
A: We locates in Jinan city of Shandong, in the north of China.
Q3: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1).What work you will do?
2). What work table size you will need?
Q4: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc.
Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set
Q5: If I bought a machine, how could you make it safe while shipping.
A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case.
Q6: What's your quality control system?
A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm.
Q7: What's your after-sales service?
A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years.
2) Engineers available service machinery overseas
3) 7X24hours online support and whole life maintenance.
Q8: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disc send together with the machine including machine user manual and software user manual .
2) Online (Skype, Whatsapp, Wechat, Phone)
3) Remote desktop software (Team viewer)
4) Demo Video
Q9:This is my first time buy machine from China, how i buy machine from you?
A:Choose suitable machine through talking with our seller manager → Pay to us→ manufacture and testing machine(about 3-5 workdays) →shipping to you
If you have any other questions, please write email to us or call us, we will reply you ASAP.
