Hot Sale Low Price Co2 Laser Engraving And Laser Cutting...

Overview

Quick Details

Application:: Laser Engraving

Applicable Material:: Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Engraving Area:: 1300*900mm

Laser Type:: CO2

Engraving Speed:: 0-6000mm/min

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, PNG EPS

Condition:: New

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Place of Origin:: China

Brand Name:: Transon

Dimension(L*W*H):: 1760*1310*1140mm

Certification:: ce, ISO, FDA

Laser Source Brand:: Reci

Laser Head Brand:: Transon

Servo Motor Brand:: easy

Guiderail Brand:: PMT

Control System Brand:: Ruida

Optical Lens Brand:: Wavelength

Key Selling Points:: Easy to Operate

Warranty:: 1 Year

After-sales Service Provided:: Field maintenance and repair service

Applicable Industries:: Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining, Advertising Company

Keywords:: Laser Cutting Machine

Laser power:: 60W/80W/100W/130W/150W(optional)

Laser tube:: Glass Sealed CO2 Laser Tube

Communication interface:: USB

Operating temperature:: 0-45℃

Smallest Character Engraving:: English 1.0*1.0mm

Locating Precision:: ≤±0.01mm

Highest Scanning precision:: 2500DPI

Power supply:: 220C/50Hz 110V/60Hz

Driving system:: 3 phases stepper motor

Supply Ability

Supply Ability:: 100 Set/Sets per Month Laser Cutting Machine

hot sale low price co2 laser engraving and laser cutting machine for fabric leather acrylic wood

Laser Cutting Machine

Co2 laser engrave and cutting machine can be applied to different materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries.

The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting. It’s with high compatibility, powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, AI and many other graphs, support win 7, win 8 and win 10 computer operatting system.

Applicable Industries:

Model industry (construction models, aviation and navigation models and wooden toys), advertisement,

decoration, arts and crafts, electronic and electric appliances, etc.

Working materials:

Nonmetal materials such as acyl, wood planks (light planks, paulownia wood), bamboo ware. double

color sheets, paper,leather, shells, coconut shells.ox horns, resin, animal grease, ABS boards, lampshade, etc.

Parameter:

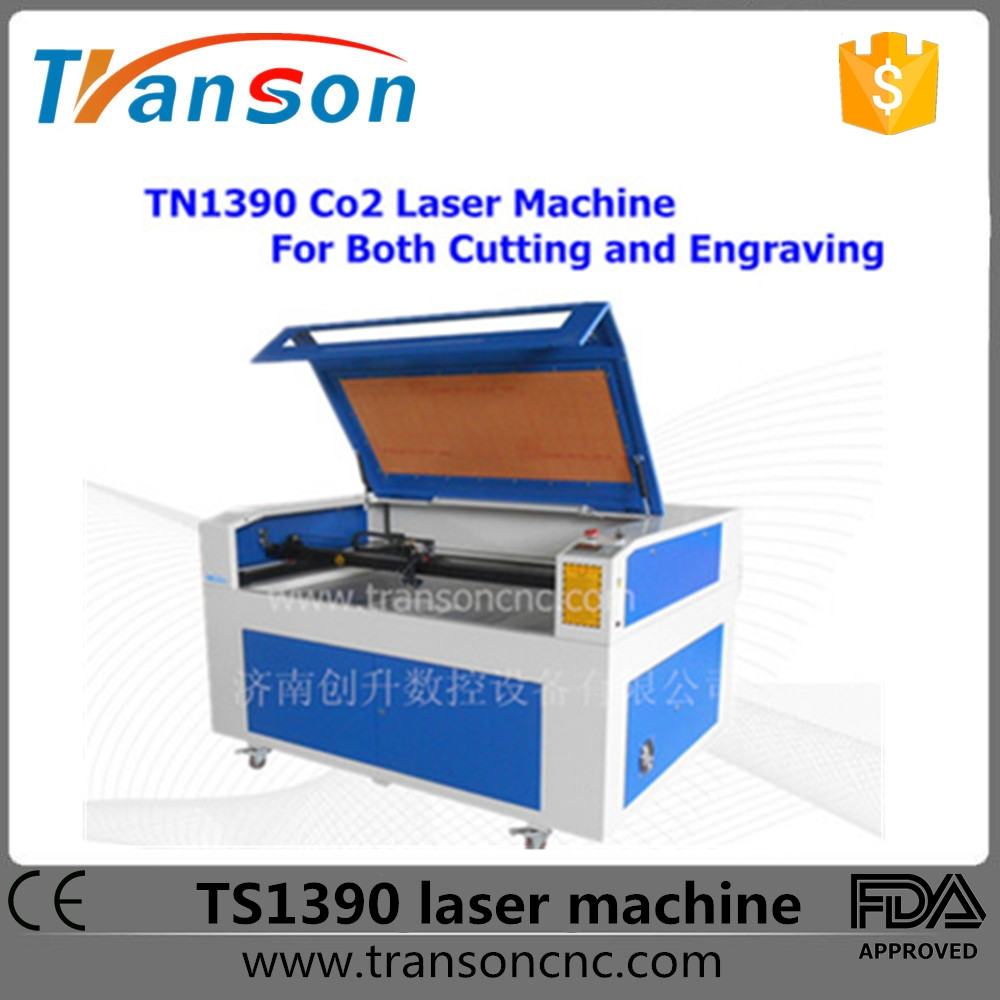

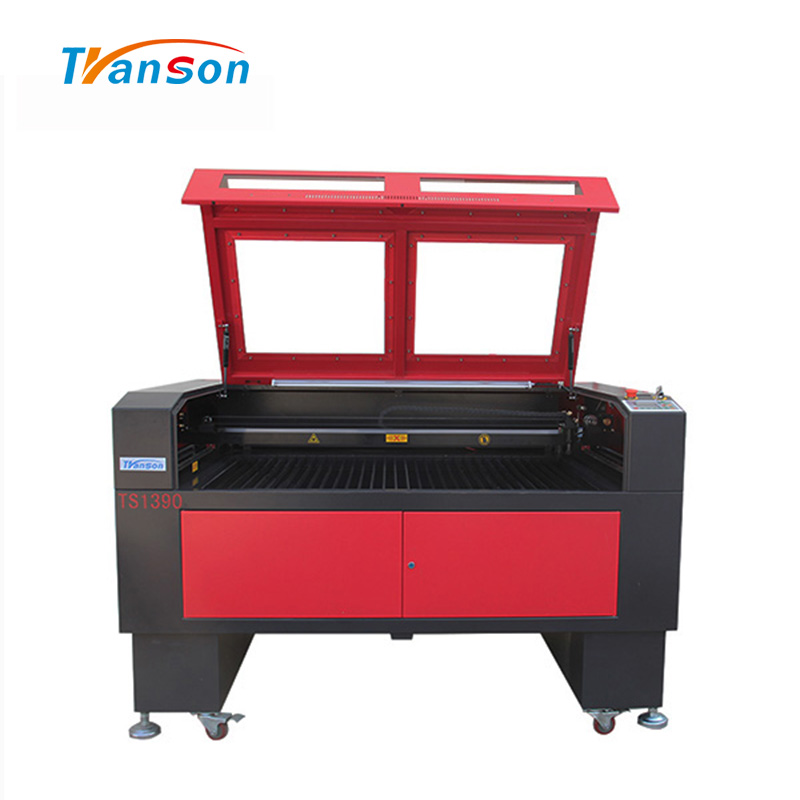

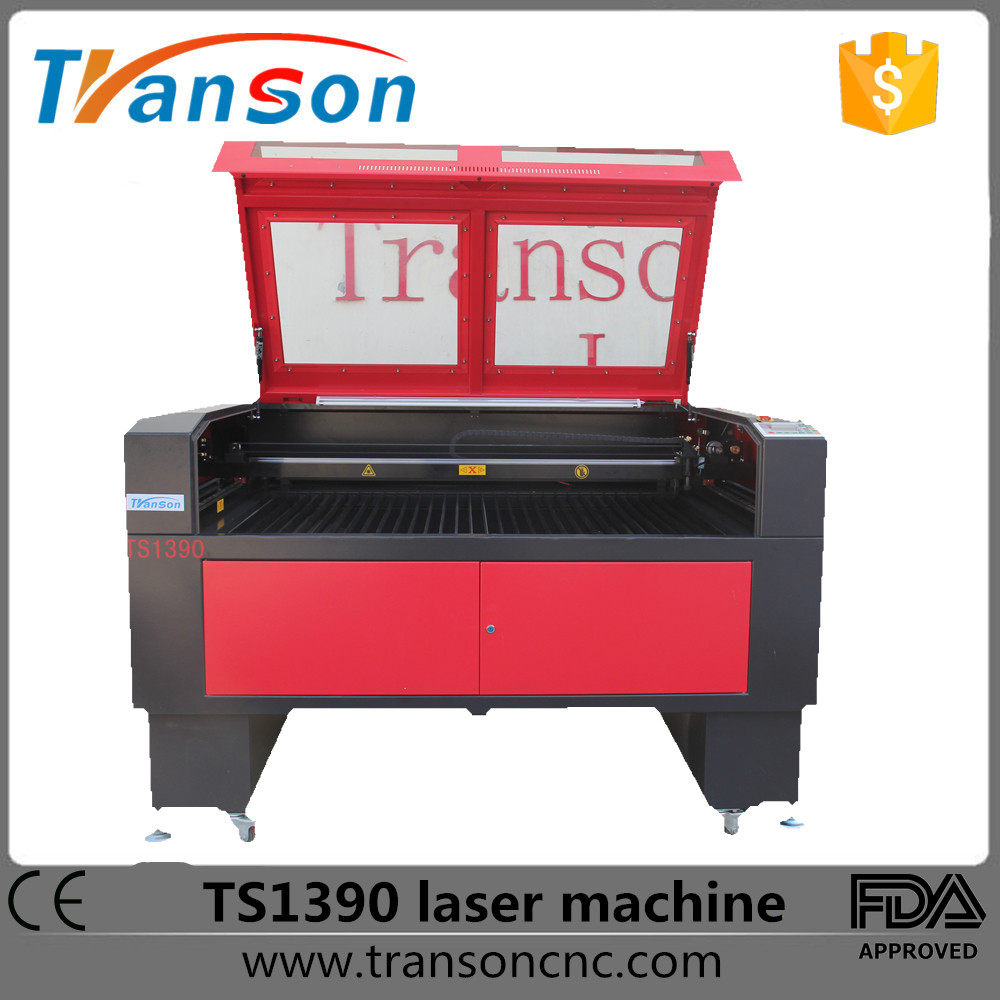

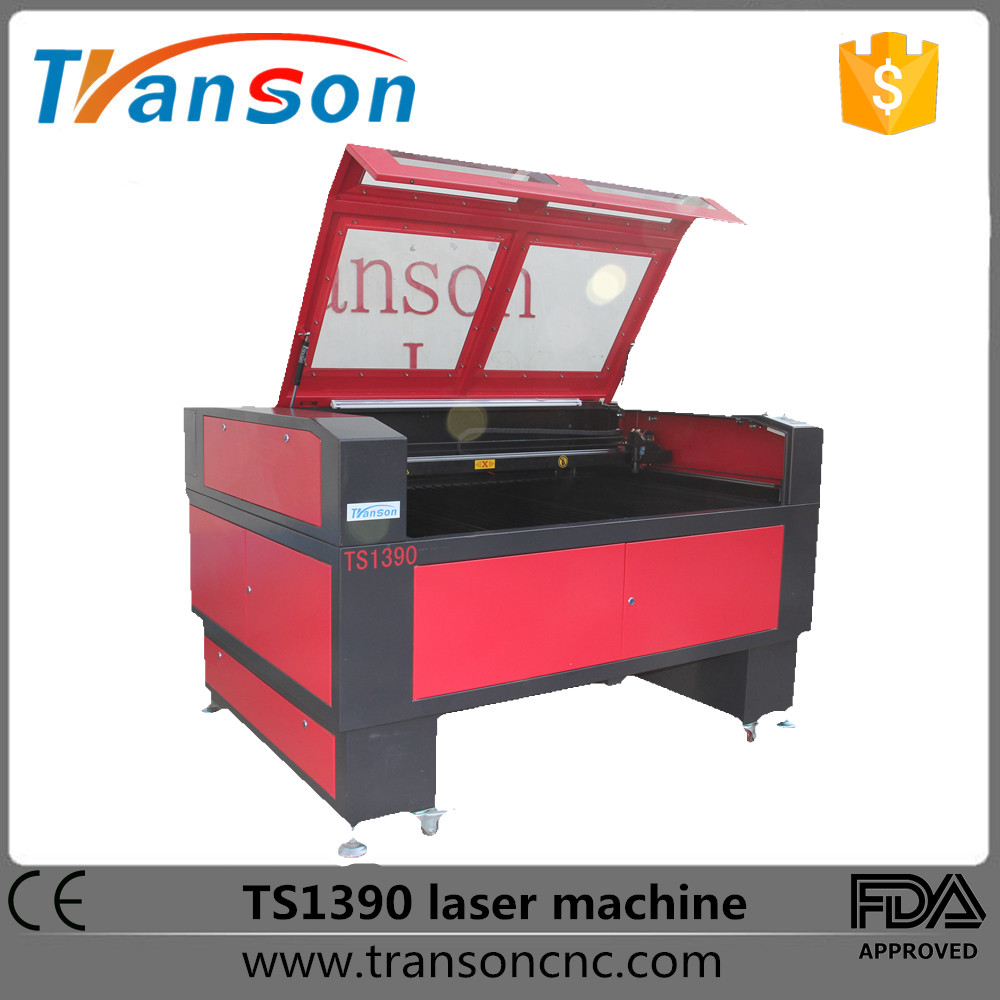

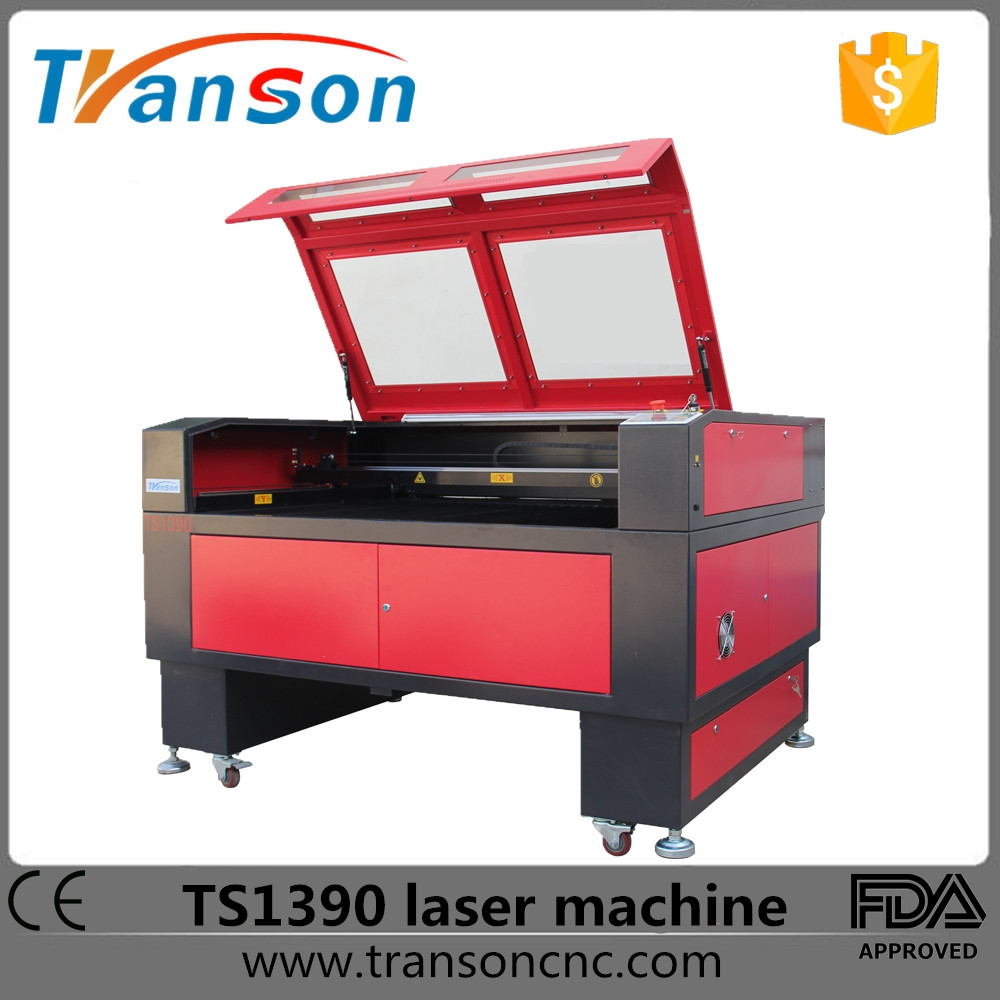

Model		TS1390
Working area		900mm*1300mm
Laser power		100-120W Reci Glass tube
Laser type		CO2 sealed laser tube, water-cooled
Engraving speed		0-70000mm/min
Cutting speed		0-40000mm/min
Highest scanning precision		2500DPI
Power supply		220v/50Hz , 110v/60Hz
Min. shaping character		English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported		BMP, PLT, DST, DXF, AI
Software supported		CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut
Control system		DSP
Driving system		Stepper motor(servo option)
Color separation		Yes
N.W/G.W	100-120w	365kg/445kg
Optional parts	1.Motorised up and down worktable 2.Rotary attachment with roller/clip 3 Water chillers 4 Red dot pointer 5.Auto focus
Consumable parts (Recommended)	1.Extra laser tube 2.Extra 1 lens and 3 mirrors

We have also below blue and white color on sale:

Package & delivery

Nearly 80%-90% products are transported by sea.

The packaging is international standard plywood box.It can be placed in the container.

If you need the machine urgently, we can handle it by air.

In addition,those machines can also be transported by land if you are from Russia,Kazakhstan,Vietnam,Laos,Hong Kong(China) and another special country or regions.
