Hot Sale CO2 Laser Engraving Machine For Nonmetal

这里可以自定义设置
Hot Sale CO2 Laser Engraving Machine For Nonmetal
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Engraving
Applicable Material:
Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Pressboard
Engraving Area:
1400mm*900mm/ 55.12in*35.43in
Laser Type:
CO2
Engraving Speed:
0-70000mm/min
Graphic Format Supported:
AI, PLT, DXF, BMP, DXP, JPG
Condition:
New
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Place of Origin:
Shandong, China
Brand Name:
Transon
Dimension(L*W*H):
1860*1310*1050mm
Certification:
ce, ISO, FAD
Laser Source Brand:
RECI
Laser Head Brand:
Transon
Servo Motor Brand:
stepper motor
Guiderail Brand:
PMT
Control System Brand:
RuiDa
Optical Lens Brand:
Wavelength
Weight (KG):
360 KG
Key Selling Points:
Easy to Operate
Warranty:
1 Year
After-sales Service Provided:
Online support
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Printing Shops, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support
Local Service Location:
United Kingdom, Philippines, Peru, Pakistan, Russia, Romania
Showroom Location:
United Kingdom, Peru, Pakistan, Russia, Romania
Product name:
C02 Laser Engraving Cutting Machine
Laser power:
150w
Laser tube:
RECI
Laser tube type:
Sealed CO2 Laser Glass Tube
Control system:
Ruida Control System
Working area:
1400*900mm
Keywords:
Co2 Laser Cuting Machine
Function:
Cutting Engraving Non-metal Materials
Type:
Water Cooling CO2 Laser Engraving Machines
Machine type:
Nonmetal Laser Cutter Engraver
Supply Ability
Supply Ability:
300 Set/Sets per Month

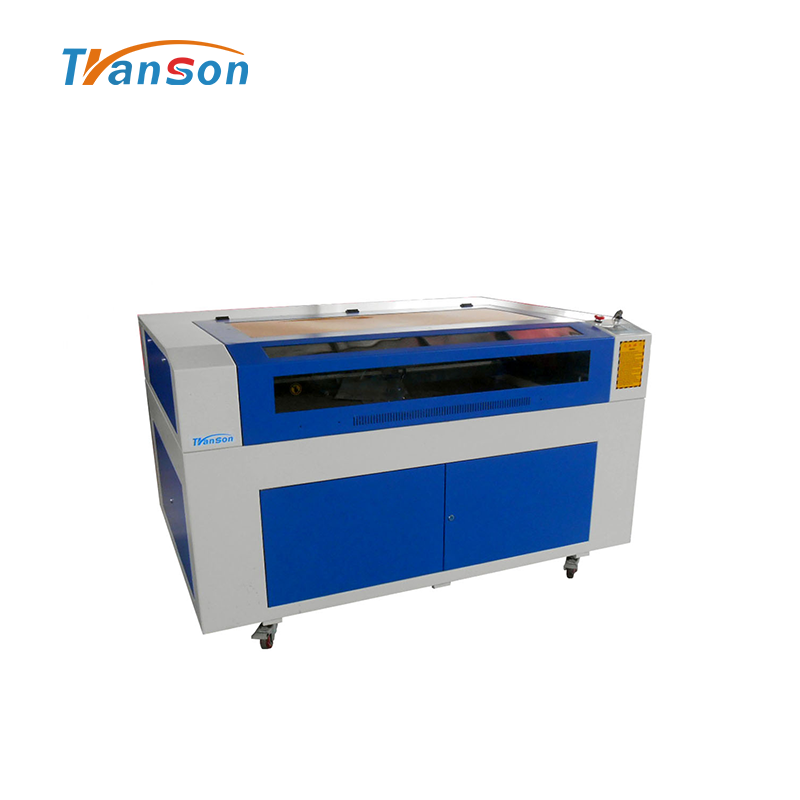

TN1490 CO2 Laser Engraver Cutter For Nonmetal

Wood MDF Acrylic Leather

Cutting and Engraiving Solutions of Woos, MDF,Acrylic,Cloth, Leather,Double color sheet,Other nonmetal materials.

Fast Speed, Smooth Cutting Effect,High Efficiency.

Product Description

Our laser engraver can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries.

The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting It's with high compatibility powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, Al and many other graphs, support win 7, win 8 and win 10 computer operating system



PARAMETERS:

Model

TN6090 / TN1290 / TN1390 / TN1490/ TN1610

Working area

600*600mm / 900*1200mm / 900*1300mm/900*1400mm/ 1000*1600mm (L*W)

Laser power

40W/60W/90W/100W/120W/150W/180W

Laser type

CO2 sealed laser tube, water-cooled

Worktable

Standard with Metal slat worktable

Engraving speed

0-70000mm/min

Cutting speed

0-40000mm/min

Highest scanning precision

2500DPI

Power supply

220V/50Hz , 110V/60Hz

Min. shaping character

English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Graphic.format.supported

AI, DXF,PLT,DST,DSB, EPS,DAT,NC,BMP,RDB, GIF, JPG, JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,

WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW,

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Control system

High speed DSP control system brand Ruida or Leetro

Machine work software

RDWorks V8 (Ruida)

Laser output control

1-100% by setting in the software

Interface

USB 2.0

Driving system

Stepper motor or optional Servo motor

Color separation

Yes

Optional part

Up and down worktable/ Honeycomb worktable/ Red dot pointer/ Auto focus/

Rotary attachment with rollor/ Rotary attachment with clip

Spare parts suggested

Extra laser tube/Extra 1 lens and 3 mirrors

Applicable

Applicable materials:

Transon laser engraving and cutting machine can suit for marble, stone, tomb stone, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials

Applicable industries:

Advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging,

paper industry

Product details

STANDARD PARTS

1,Observation windown design
The worktable cover is installed transparent tempered glass.

2,linear guider
Square shape linear guider, small resistance, smooth sliding, low noise, good balance
performance.

3,Laser head
With high quality metal reflector and focus lens as well as red dot pointer, it makes the
working speed faster, precision higher.

4,CO2 laser tube
China top brand Reci laser tube,10,000 hours life time ,300day's warranty, optional
power:90W/100W/120W/150W/180W(Max power).

5,Laser power supply
Constant laser power supply to laser tube,with exhaust fan.

6,Core control system
Adopting China top brand Ruida laser control card, reasonable wiring can reduce
electromagnetic interference and enhance the stability of machine operation.
7,Control panel
LCD digital control panel with USB inter face, support offline work.

8,Emergency stop button & Key switch





9,Water chiller
CW3000 water chiller with water temperature display and alarm system can avoid over
burning,keep water circulation successful.

10,Socket
Multi-function socket at the back of the machine.

11,Metal slat worktable
Metal slat worktable can meet the flatness requiment of hard meterials,like wood,acrylic,
etc.

12,Honeycomb worktable
Makes the board more solid and more flat. it is suitable for engraving work and also good at
cutting leather and other soft materails.(Note:one worktable standard with machine:Metal
slat/H oneycomb)

13,Exhaust fan
Heat dissipation is fast, can extend the life of machine.

14,Air pump
Air pump can keep forcus lens clean and coll the laser head.

15,Full-direction Wheel&position leg
It can help move and fix the laser machine easily

16,Tool box
Tools for maintaining the machine are included.







OPTIONAL PARTS


1.Red dot pionter& Auto focus:

Red dot pointer makes laser beam visible , so adjust ment of laser beam would be much
easier. Auto focus can set the optimal focus according to thickness of objects
automatically.(They need work together with up and down worktable).



2.Worktable:
Honeycomb/ Metal slat/ High density metal slat worktable is used for leather, cloth and
small parts cutting, the distance between two metal slat will less than 2cm.



3.Rotary device with roller:
For heavy and fragile round materials engraving, such as glass cup ,bottle ,etc.It should
work together with up and down worktable.





4.Rotary device with clip:
For round materials' engraving, such as wood,etc.It should work together with up and down worktable.



Our Services

All the components of our laser machines are with the highest quality, good finish and good quality. Our quality control department will fully check and test EVERY ONE of our laser machines before shipment. We can 100% make sure all our customers will get good products from us, and we have TWO year warranty for our laser machine. Usually the life time of glass laser tube is 100,000 hours, machines can keep working 24 hours a day, usually working more than 8 hours a day is totally no problem.
Together with the laser machines we send together "Instruction Book", "Operation Manual" and "Training Video" (in English version) our customer can easily understand and operate our machines when they arrive.
We will offer plenty of online supports,  by email, video, telephone and fax.
Our engineer can make a door-to-door instruction training service.

Packaging & Shipping

Our laser machines package include 3 layers:

1, Outside package: Polywood case with metal belt

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof plastick bag to cover all the machine.





Company Information

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010. Our main products include fiber laser marking machine,CO2 laser marking machine,CO2 laser engraving cutting machine,CNC router and CNC plasma cutter. They are widely used in industry of woodworking, advertising, decoration,arts and crafts, electronics industries,etc.
With the ability of research, development, design and production, Transon not only produce our own machines, we also cooperate with customer by provide ODM and OEM machines with reliable quality, reasonable price and good after sale service. Welcome customer worldwide contact us today!



FAQ



Q1: Are you a factory or trading company?

A: We are a manufacturer found in 2010.

Q2: Where are you located? How can we visit you?

A: Sure, welcome customer all over the world come visit us. We locates in Jinan city of Shandong, in the north of China.Tell us your flight number or train number, we will pick up you.

Q3: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can suggest you the most suitable machine . Please kindly tell us:

<![if !supportLists]>1)   <![endif]> .What work you will do? Mark, engrave or cut?

2). What’s the size and thickness of the material?

Q4: What's your payment terms? Delivery time and MOQ?

A: We accept T/T(bank transfer), L/C, Paypal,  West union, etc.

Usually we need 30% as deposit, balance paid before shipment.

Delivery Time: 7-10 days after payment

MOQ: 1set

Q5: If I bought a machine, how could you make it safe while shipping.

A: We use international standard export package for all our machines, and we have a professional package suitable for oversea transportation. Machine will be fixed well in the case.

Q6: What's your quality control system?

A: All our machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and we will send you test video and photos for confirm.

Q7: What's your after-sales service?

A: 1) Warranty 1 year for whole machine.

2) Engineers available service machinery overseas if need.

3) 7X24hours online support and whole life maintenance.

Q8: If I don't know how to use the machine, can you teach me?

A: Yes, sure you can contact us anytime if have any doubts.

1) There is a U disc send together with the machine in the tool box including machine user manual and software user manual, install video, etc .

2) Online (Skype, Whatsapp, Wechat, Phone)

3) Remote desktop software (Team viewer)

4) Demo Video

Q9:This is my first time buy machine from China, how i buy machine from you?

A:Choose suitable machine through talking with our sales → Pay to us→ manufacture and testing machine(about 3-5 workdays) →shipping to you



If you have any other questions, please write email to us or call us, we will reply you ASAP.
