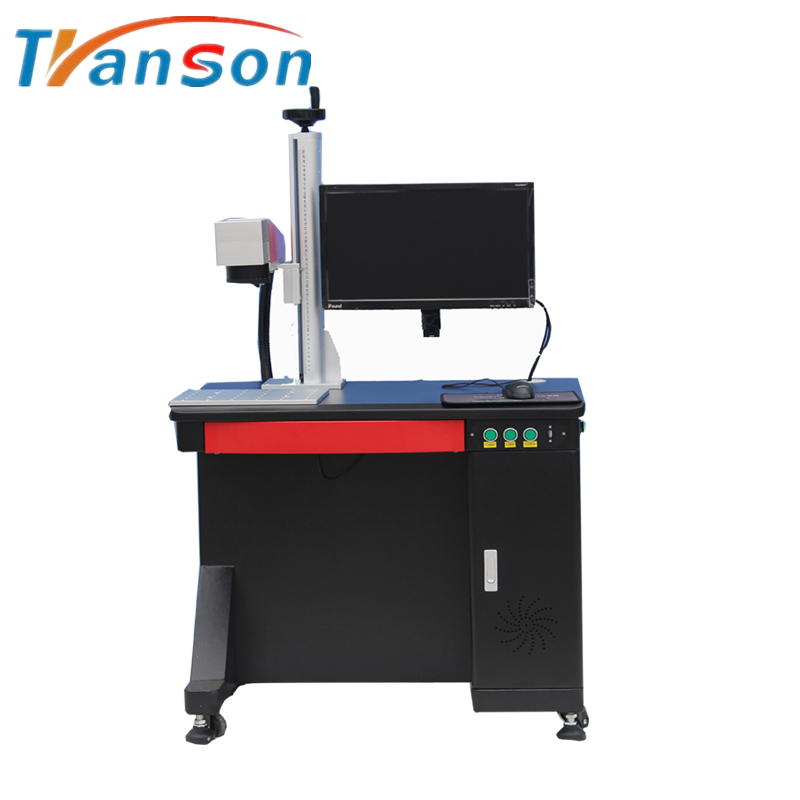

Hot sale 100w CNC Fiber Laser Marker Machine for Marking Engraving Jewelry

这里可以自定义设置
Hot sale 100w CNC Fiber Laser Marker Machine for Marking Engraving Jewelry
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Marking
Working Accuracy:
0.002mm
Graphic Format Supported:
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Laser Type:
Fiber Laser
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
RAYCUS
Control System Brand:
JCZ
Marking Head Brand:
SINO
Weight (KG):
150 KG
Key Selling Points:
High-accuracy
Warranty:
3 years
After-sales Service Provided:
Online support, Video technical support
Applicable Industries:
Manufacturing Plant, Retail, Printing Shops, Advertising Company, arts crafts jewelry shop
After Warranty Service:
Video technical support, Online support
Local Service Location:
Turkey, United Kingdom, Peru, Pakistan, Russia, Romania
Showroom Location:
United Kingdom, Peru, Pakistan, Russia
Marking Area:
110mm*110mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
2 years
Core Components:
PLC, Raycus 100W fiber laser source
Beam quality:
M2< 1.5
Laser wavelength:
1064±1 nm
Power adjustment range:
10~100%
Output fiber length:
1~2m
Frequency of pulse:
20~250KHz
Power supply:
220V/60Hz /8A (110V/60Hz /15A can choose)
Working area:
110mm*110 mm(Standard) can choose 150*150mm 200*200mm 300*300mm
Marking depth:
<1mm
Marking speed:
<5000mm/s
Applicable Material:
Metal Nonmetal Materials
Supply Ability
Supply Ability:
200 Set/Sets per Month
Video Description

   Hot sale 100w CNC Fiber Laser Marker machine for marking engraving jewelry



Fiber laser marking machine can be used for marking logo ,serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing etc.

It can also mark on parts nonmetal material like ABS, plastic,coating material,leather,etc.

If you not sure your material, send to us, we can help test and send you test video, photos free!



Features:

1). Wide range: Can be used on many materials like metal, plastic, leather, alloy etc. Can be used in many industries like Jewelry engraving, medical devices, phone case engraving, hardware industry, stainless steel tableware, electron components marking etc.

2). Permanent marking: Laser marking is a permanent marking. It won’t fade, run or become less discernible as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.

3). Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.

4). Easy to operate: Support almost any windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.

5). High precision: 0.003mm re-position accuracy. Minimum line width 0.01mm.

6). Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.

7). Portable: Small footprint, easy to move and transportation.



Specification:

Mini Fiber Laser Marking Machine

Model

TSF-100

Laser  type

Fiber Laser

Laser  power

100W

Beam  quality

M2< 1.5

Laser  wavelength

1064±1nm

Power  adjustment  range

10~100%

Output  fiber  length

1~2m

Frequency  of  pulse

20~250KHz

Power  supply

220V/60Hz /8A (110V/60Hz /15A can choose)

Cooling  system

Air Cooling

Graphic  format  supported



XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA

Working  area

110mm*110 mm(Standard)

Marking  depth

<1mm

Marking  speed

<7000mm/s

Min. line  width

0.05mm

Repeatability  accuracy

0.003mm

Power  Machine

300W-450W

Operation  temperature

0~40°C

Operation  system

Microsoft Windows 7, 8, 10 system

Operating  environment

Clean and free of dust

Warranty

Three years



Two Colors for choice:



Products details:













Some Jewelry made by our fiber laser marking machine:



CE, FDA, ISO certificates:

Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC Router and Laser equipment, specialized in researching and studying the application in advertising, woodworking, laser and other fields.


Our products are widely used in the following industries: Woodworking, Advertising, Art making, Models, Electrics, CAD/CAM industry, Clothing, Package Printing, Marking and Laser Sealing and so on.We guarantee everything is under our inspection and control, including the selection of raw materials, assembly technology, testing, packaging, and fast technical support and good after-sales service.


Our machine has exported to UK, USA, Canada, Brazil, Panama, South Africa, Germany, Poland, Switzerland, Greece, Turkey, Australia, Berlin, India and so on. Our products get good feedback from the agents and users. We are still trying our best to produce innovative products to help customers lower their cost. We are a serious supplier. If you are interested in our products, please do not hesitate to contact us for future cooperation. We hope to get mutual benefits with you in the near future.



Customer Review





FAQ

 FAQ:



Q1: Are you a factory or trading company?

A: We are a manufacturer found in 2010.

Q2: Where are you located? How can we visit you?

A: We locates in Jinan city of Shandong, in the north of China.

Q3: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:

1).What work you will do?

2). What work table size you will need?

Q4: What's your payment terms? Delivery time and MOQ?

A: We accept T/T(bank transfer), L/C, Paypal,  West union, Paypal, etc.

Usually we need 30% as deposit, balance paid before shipment.

Delivery Time: 7-10 days after payment

MOQ: 1set

Q5: If I bought a machine, how could you make it safe while shipping.

A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case.

Q6: What's your quality control system?

A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm.

Q7: What's your after-sales service?

A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years.

2) Engineers available service machinery overseas

3) 7X24hours online support and whole life maintenance.

Q8: If I don't know how to use the machine, can you teach me?

A: 1) There is a U disc send together with the machine including machine user manual and software user manual .

2) Online (Skype, Whatsapp, Wechat, Phone)

3) Remote desktop software (Team viewer)

4) Demo Video

Q9:This is my first time buy machine from China, how i buy machine from you?

A:Choose suitable machine through talking with our seller manager → Pay to us→ manufacture and testing machine(about 3-5 workdays) →shipping to you



If you have any other questions, please write email to us or call us, we will reply you ASAP.



The product is critical to the production of many of the Nation's goods and services. It is widely used in industries to increase production efficiency. Its protective cabinet contains an integrated fume extraction facility. Under the backdrop of many manufacturers having required increased productivity, the product has been widely adopted in many industries. Its protective cabinet contains an integrated fume extraction facility.
