High-tech CO2 Dynamic Focusing Laser Marking Machine

这里可以自定义设置
High-tech CO2 Dynamic Focusing Laser Marking Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Marking
Working Accuracy:
0.01mm/s
Graphic Format Supported:
AI, PLT, DXF, DXP, Tif,tiff,jpg,jpeg,pnf,svb.etc
Laser Type:
CO2
Condition:
New
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
EZCAD
Place of Origin:
Shandong,China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
Davi
Control System Brand:
Eastern
Marking Head Brand:
sino
Key Selling Points:
dynamica focus laser marking
Warranty:
3 years
After-sales Service Provided:
Online support, Video technical support
Applicable Industries:
Garment Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works , Advertising Company, Electrons component industry
Working area:
600mm x 600mm
marking speed:
0-7000mm/s
marking depth:
≤0.3mm
Min.Line Width:
0.1mm
Repeated accuracy:
0.01mm
laser Wavelength:
10.64μm
Motor:
Servo motor
Cooling Way:
Circulation of Water Cooling
Equipment dimension:
1770*980*1800mm
Gross weight:
495kgs
Supply Ability
Supply Ability:
300 Set/Sets per Month
Video Description
Product Description

The machines is designed according to market needs.The key feature is dynamic focusing.

The dynamic focus galvanometer has good running stability,high positioning accuracy,fast marking speed and strong anti-interference ability.In the dynamic marking process,the line precision is high,

no deformation,uniform power,no distortion of the pattern and the comprehensive performance reaches the same level of domestic and aboard advanced technology level,its specific characteristics are as follows:

1.The galvanometer scanner

The galvanometer scanner adopts the photoelectric sensing technology and PDM control method

imported from USA,and combines the research and development technology of the Ministry of Space and military-level production process,and has independent intellectual property rights.

2.The differential photoelectric sensor

The differential photoelectirc sensor is able to accurately detect the position of motor rotor

with linearity,small drift,high resolution and repeatability.

3.The 30mm spot lens

The 30 mm spot lens has unique precise load design, high motor assembly precision, reasonable

structure, small static friction coefficient and zero offset,ensuring excellent dynamic character-istics of this system.

4.The drive

The drive we adopted has position and speed lead detection which greatly improves the dynamic

response performance and scanning speed of the entire systems.

5.The system

This system adopts electromagnetic compatibility optimization design with high signal-to-noise ratio and strong anti-interference ability, having solved common problem such as

galvanometer motor temprature drift,signal interference and zero drift.







Application



This kind of CO2 Laser Marker is widely applied for most of the nonmetallic materials, such as leather, cloth, wood, bamboo, paper, organic materials, acrylic and some painted metal materials.

Advantages

This machine has 6 advantages:

(1)Fast marking speed.This machine provide you a faster solution for marking non-metal materials

(2)High Precision.This machine's performance and accuaracy can meet nearly all customers' demands.

(3)Forever mark.The mark will not fade away by external factors.

(4)Stable Output.The machine can offer you a very stable output.

(5)Environmental Friendly.When the machine runs,there are no toxic substance released.

(6)Competitive Price.Our product's price is corresbond with the value.Higher Performance Ratio is the target we always pursuing.Better Performance,Lower Price.



Detailed Images

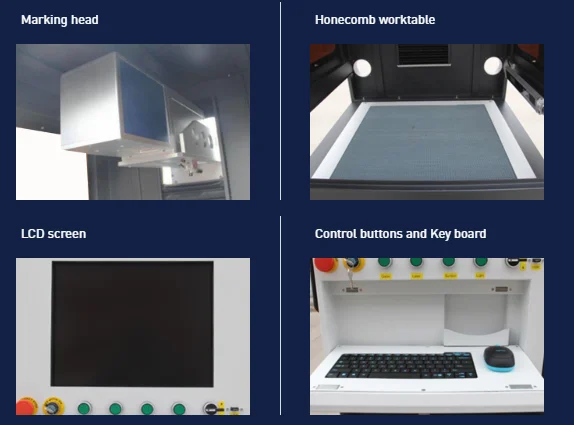

It mainly consists of those 8 parts:

The procession is dynamic can automatically adjust its focal to mark.
Parameters



Cooling System

Air Cooling

Laser Wavelength

10.6μm

Motor

Easy Servo motor

Making Area

600x600mm (optional 1200x1200mm)

Making Depth

≤0.3mm(adjustable according to materials)

Linear Speed

≤7000mm/s

Min.Line Width

0.1mm

Min.Letter

0.4mm

Repeatable Accuracy

±0.01mm

Electricity Source

220V/50Hz

Operate System

Windows 7/ 8 /10 with big monitor, keyboard, mouse

Operate software

MM3D (support CoreDraw, Photoshop ,AutoCAD, Illustrator, etc.)

Format Support

DWG,DXF,PLT,CNC,GBR,DST,XMLAI,TXT,NC,LPF,AMF

,EPS,BMP,CMP,CAL,CUR,EMF,FPX,ICO,WMF,

PSD,PNG,JPG,TIF,TGA,PCX,

Suitable for

Nonmetal materials marking or leather cloth quickly cutting

Gross weight

495kgs

Plywood box size

188x110x203cm

FAQ

 1.Can the machine mark on metal?

Answer:It cannot.

2.This machine looks complicate and intricate,how can I learn to use it?

Answer:Don't worry about it.We provide you a teaching video about the machine.If neccssary,we can provide you a long-distance aid and teach you step by steps.



3.If I purchased a machine, how could you make it safe while shipping.

Answer:We have a professional package suitable for oversea transportation.Machine will be fixed in the case well.









Packaging & Delivey

The packaging is international standard plywood box.

Nearly 80%-90% products are transported by sea.

Port: Qingdao(recommended),Shanghai, Guangzhou,Ningbo are optional.

In addition,the merchandises can also be transported by land if you are from Russia,Kazakhstan,Hong Kong(China) and another special country or regions.

If necessary,the products can be transport by air.



Company information

Our Company have enough experience for producing laser machine.

In the past ten years,quantities of customers came to visit our company and to purchase the products.

We devoted to offer customers a better service.





Transon has the most advanced machine to test the quality of laser marking machine before its loading. It is available with powers to suit the requirement. laser marking machine enjoys long service time for its sophisticated quality. It is available with powers to suit the requirement.
