High Safety TN3060 40W Mini CNC CO2 Wood Laser Engraving Cutting Machine Desktop For DIY Home Business

这里可以自定义设置
High Safety TN3060 40W Mini CNC CO2 Wood Laser Engraving Cutting Machine Desktop For DIY Home Business
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
LASER CUTTING
Applicable Material:
Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal
Condition:
New
Laser Type:
CO2
Cutting Area:
300mm*600mm
Cutting Speed:
0-40000mm/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, AI, DXF,PLT,DST,DSB, EPS, DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE,JFIF, PNG,MNG,ICO,CUR,TIF, TIFF,TGA,PCX,WBMP,WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW
Cutting Thickness:
according to materials
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
Laser CAD V8
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
TONGLI
Laser Head Brand:
Transon
Servo Motor Brand:
JMC easy Servo
Guiderail Brand:
PMT
Control System Brand:
Trocen
Weight (KG):
180 KG
Key Selling Points:
High safty level
Optical Lens Brand:
wavelength
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Printing Shops, Construction works , Advertising Company, shoe factory, bag factory
Local Service Location:
United Kingdom, Peru, Pakistan, Russia, Romania
Showroom Location:
United Kingdom, Peru, Pakistan, Russia, Romania
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
Motor, PLC
Product name:
C02 Laser Engraving Cutting Machine
Mahince Size:
113cmX78cmX60cm
Package Size:
121cmX86cmX72cm
Laser tube type:
Sealed CO2 Laser Glass Tube
Laser power:
40w or 60w
Working Voltage:
AC220V 50HZ /AC110V 60HZ
Laser Wavelength:
1064nm
Function:
Cutting Engraving Non-metal Materials
Min. shaping characters:
English 1.0mm x 1.0mm;Chinese Charactes 1.5mm x 1.5mm
Keyword:
Co2 Laser Cuting Machine

Packaging & Delivery

Selling Units:
Single item
Single package size:
121X86X72 cm
Single gross weight:
180.000 kg
Package Type:
standard plywood package box for High Safety TN3060 40W Mini CNC CO2 Wood Laser Engraving Cutting Machine Desktop
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description



High Safety TN3060 40W Mini CNC CO2 Wood Laser Engraving Cutting Machine Desktop For DIY Home Business



This TN3060 laser machine is Transon factory 2020 new designed co2 laser engraver cutter. Can be widely used in cutting engraving of almost all nonmetal leather, fabric, wood, acrylic,marble, etc. With 40W laser tube design, it have perfect engrave effect than big power tube. As a desktop mini model, suit industry work also suit hobbiest for DIY work and home business.

Paramters:



Model TN3060
Working area 600mm*300mm/23.62in*11.81in
Laser power 40W, CO2 sealed glass tube, water cooling
Worktable Electric up down honeycomb worktable, up down distance 100mm
Control system High speed Trocen DSP control system
Machine work software LaserCAD V8
File support NC, AI, SVG, PDF, DXF, PLT,DST,DSB,UD5,BMP,GIF,JPG,JPEG,PNG.
Control Panel support language Portuguese,Turkish,Russian,French, Korean,Arabic, Spanish, Vietnamese, Chinese
Other software compatible CorelDraw, PhotoShop, AutoCAD,TAJIMA, etc.
Driving system JMC easy Servo motor and driver
Min. shaping character English 1.0 x 1.0mm
Interface USB 2.0
Power supply 220V/50Hz or 110V/60Hz
Machine/ Package size 1130mm*780mm*600mm/ 1230mm*860mm*720mm
Net weight/ Gross Weight 120kgs/165kgs
Machine warranty  One year
Product details

  1, Machine working area size is 600x300mm, mini size desktop design, with water tank and air assist pump inside machine body, can save a lot space.

2, With water level display and water temperature display, if machine detect water temperature higher than default, machine will stop work automatically.

3, Motorized up down honeycomb worktable, up down distance 100mm.

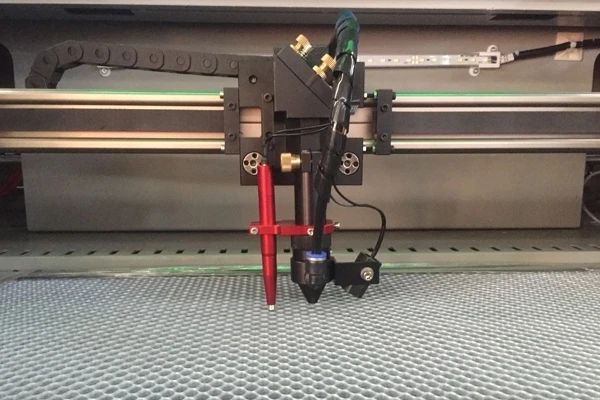

Also machine with auto focus function, no need use ruler to find focus length.

4, Machine with high speed outer sliding rail, low resistance faster speed than linear rail, very suit for cut engrave leather fabric.

Machine standard belt is USA CARSILE brand belt, good quality and durable.



5, Machine with JMC easy servo motor and driver, faster and precise than stepper motor.

6, Advance Trocen control system, easy operate.

Trocen control panel suppert 9 language: Portuguese,Turkish,Russian,French, Korean,Arabic, Spanish, Vietnamese, Chinese.

Standard machine software: LaserCAD V8.

7, With USB 2.0 interface, supprt insert U disk to do offline work. Customer can use other software to make design, save design to the files machine support, then import files to LaserCAD V8. to cut or engrave.

The files LaserCAD V8. software support: NC, AI, SVG, PDF, DXF, PLT, DST, DSB, UD5, BMP, GIF, JPG, JPEG, PNG.



High Safty Designs



1, Emergency stop button, key switch, LED light all DC24V, not 110V or 220V, very safe to operator.



2, Machine will stop work if detect water tank water temperature higher than standard.



3, Machine up cover with mechanical lock, only when cover closed can machine start work, cover open machine will stop work automatically.



4, Machine with Large green acrylic window, operator can see inside when work, but green acrylic can prevent laser radiation.

5, Machine easy Servo motor with damage protection function, whenever they detect damage from motor, machine will stop work, and no laser come out from laser tube, this can greatly improve security when machine work.

Application



Applicable Industries:

Model industry (construction models, aviation and navigation models and wooden toys), advertisement,decoration, arts and crafts, electronic and electric appliances, garment industry fabric leather cut, etc.



Working materials:

    Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood),  bamboo ware, double color sheets, paper, leather, shells,  coconut shells, ox horns, resin,  animal grease, ABS boards, lampshade, etc.

Packaging & Shipping



Our laser machines package include 3 layers:



1, Outside package: polywood case with metal belt

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof plastick bag to cover all the machine.

Company Information



Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer with ability of research and development, design and production. Our products include fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter.



Transon CNC has won an excellent reputation in the golbal market. We are cooperating with many well-known companies all over 100 counties, including Turkey, United Kingdom, United States, Korea, russia, Peru, Chile, etc. We alos maintain a friendly long-term cooperation with domestic laser research institues all over the years.



With our continual innovation, the product will better fit the market demand, meaning that it boasts a promising market prospect. It ensures the materials being cut have smooth edges. Its main technical performance has reached the international advanced level. It ensures the materials being cut have smooth edges.
