High Safety Quality TN3060 New Design CO2 Wood Laser Engraving Cutting Machine For DIY Home Business

这里可以自定义设置
High Safety Quality TN3060 New Design CO2 Wood Laser Engraving Cutting Machine For DIY Home Business
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
LASER CUTTING, Laser cutting
Applicable Material:
Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal
Condition:
New
Laser Type:
CO2
Cutting Area:
300mm*600mm
Cutting Speed:
0-40000mm/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, AI, DXF,PLT,DST,DSB, EPS, DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE,JFIF, PNG,MNG,ICO,CUR,TIF, TIFF,TGA,PCX,WBMP,WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW
Cutting Thickness:
According to the materials
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
Laser CAD V8
Place of Origin:
Shandong
Brand Name:
Transon, Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
TONGLI
Laser Head Brand:
Transon
Servo Motor Brand:
JMC Easy Servo
Guiderail Brand:
PMT
Control System Brand:
Trocen
Weight (KG):
165 KG
Key Selling Points:
High safty level
Optical Lens Brand:
wavelength
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works , shoe factory, bag factory
Local Service Location:
United Kingdom, Peru, Pakistan, Russia, Romania
Showroom Location:
United Kingdom, Peru, Pakistan, Russia, Romania
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Motor, PLC
Product name:
TN3060 High Safty Design CO2 Laser Engraving Cutting Machine
Keyword:
TN3060 High Safty Design CO2 Laser Engraving Cutting Machine
Laser power:
40w 60w
Control system:
Trocen
Software:
Laser CAD V8
Engraving speed:
0-70000mm/min
Laser output control:
1-100% by setting in the software
Can choose:
Multi-function protect power supply

Packaging & Delivery

Selling Units:
Single item
Single package size:
121X86X72 cm
Single gross weight:
340.000 kg
Package Type:
International standard package for Transon CO2 New model TN3060 High Safty Design Laser Engraving Cutting Machine.
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Products Description
Special features:
1.600x300mm working area with 40W laser tube.
2.Water tank, water pump, air assist pump all inside machine.
3.Water level display and water temperature display.
4, Motorized up down honeycomb worktable, up down distance 100mm.
5. With auto focus function,no need use ruler find focus length.
6.Machine with high speed outer sliding rail.
7.Machine with JMC easy servo motor and driver.
8.Machine with TROCEN brand controller.
9.Large green acrylic window, it can prevent laser radiation to operator.

High Safety Level:
1.Emergency stop button, key switch, LED light all DC24V.
2.Machine will stop work if detect water tank water temperature higher than standard.
3.machine up cover with mechanical lock, only when cover closed can machine start work, cover open machine stop work.
4.Machine easy Servo motor with damage protection function, whenever they detect damage from motor, machine will stop work, and no
laser come out from laser tube, this can greatly improve security when machine work.
Parameters
Working area
600mm*300mm/23.62in*11.81in
Laser power
40w 60w
Laser type
CO2 sealed laser tube, water-cooled
Worktable
Honeycomb and up and down
Engraving speed
0-70000mm/min
Cutting speed
0-40000mm/min
Highest scanning precision
2500DPI
Power supply
220v/50Hz , 110v/60Hz
Min. shaping character
English 1.0 x 1.0mm
Graphic.format.supported
BMP, PLT, DST, DXF, AI
Software supported
CorelDraw, PhotoShop, AutoCAD,TAJIMA
Control system
High speed DSP control system
Machine work software
Laser cut 5.3 (Leetro)/ RDWorks V8 (Ruida)
Laser output control
1-100% by setting in the software
Interface
USB
Driving system
JMC easy servo motor and driver
Color separation
Yes
Machine size/Packing size
1130mm*780mm*580mm/1230mm*880mm*680mm
Product details
Machine standard with 1 pc ZnSe Focus Lens, and 3 pieces Mo reflect mirrors.
Standard Tongli laser tube, 10000 hours life span.The price is for 40w,other optional parts price need to consult.

Machine with large area visible window design, the green acrylic not only allow operator see inside the machine, can also prevent laser radiation to operator.
Machine key switch, emergency stop, and RDC6442S control system all DC24V voltage, low voltage make sure operator’ safety when operate the machine.
40*60working area with aluminum metal slat worktable.
Water temperature
Machine cover with mechanical lock, only when the key insert to the lock can machine work.
It’s safer than magnetic door lock and has longer life span.
Machine X Y axis with JMC easy Servo motor and driver, both motor connect with a single line.

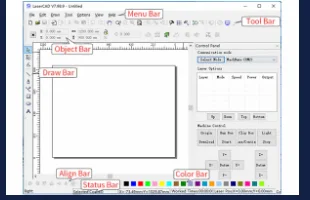

Laser CAD V8 Software
Laser head
Assist in cutting and cooling
USA 100+ years history brand Carlisle brand transmission belt
Exhaust fan and air hose.
Safety door key
High precise durable China PMT linear square rail.
Optional Parts
Rotary device with clip

For round materials’ engraving,such as wood,etc. It should work together with up and down worktable


Rotary device with roller

For heavy and fragile round materials’ engraving,such as glass cup,bottle, etc. It should work together with up and down worktable.


Red dot pointer & Auto focus

Red dot pointer makes laser beam visible,so adjustment of laser beam would be much easier. Auto focus can set the optimal focus
according to thickness of objects automatically.
(They need work together with up and down worktable)


Application
Applicable industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoreation, arts and crafts, electronics and electric appliances, etc.

Applicable Materials:
Double color sheet, acrylic, glass, wood, mdf, bamboo ware, coconut shells, paper, leather, cloth, marble, ceramic tile, shells and other nonmetal materials.
Clothes
Plywood
MDF
Wood
Glass
Leather
Stone
Acrylic
Certifications

CE, FDA, ISO9001, Certificate of Original

All our CNC machines are CE, FDA certified, and transon factory with ISO9001 certified. What's more, we can offer users certification of original for get better tax when they import.
Factory&Exhibition
Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer found in 2010. We specialized in manufacture of fiber laser cutting machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter, and we support OEM.
After 10 years growth, Transon CNC has won an excellent reputation in the global market. Our CNC machines have sold to more than 100 countries and we have some long-term cooperate agents in Euro, Asia and South America. We are looking for distributors all over the world, welcome worldwide customer come to visit our factory to cooperate.
Good Feedback
Our products are well received
FAQ
FAQ:

Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010, all our CNC machines are assemble and calibrate by our full experience engineers.

Q2: Where are you located? How can we visit you?
A: We welcome worldwide customer visit us anytime. Factory locates in Jinan city of Shandong, in the north of China, near Beijing
and Qingdao.

Q3: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1).What work you will do?
2). What work table size you will need?

Q4: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, and Alibaba Trade Assurance.
Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set

Q5: What's your quality control system?
A: All our CNC machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send
you test video and photos for confirm.

Q6: What's your after-sales service?
A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years. Wholelife maintanence.
2) Engineers available service machinery overseas
3) 7X24hours online support and whole life maintenance.

Q7: If I don't know how to use the machine, can you teach me?
A: There is a U disc send together with the machine including machine install video, some video of how to use machine, user manual
and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
1) Online call or video call (Email, Skype, Whatsapp, Wechat, Phone)
2) Remote desktop software (Team viewer)

The product helps reduce power loss and increase energy efficiency. This will directly contribute to the reduction in production costs. It is granted with certifications such as CE and FDA. The product is critical to the production of many of the Nation's goods and services. It is widely used in industries to increase production efficiency. It is granted with certifications such as CE and FDA.
