Laser Welding and Cleaning

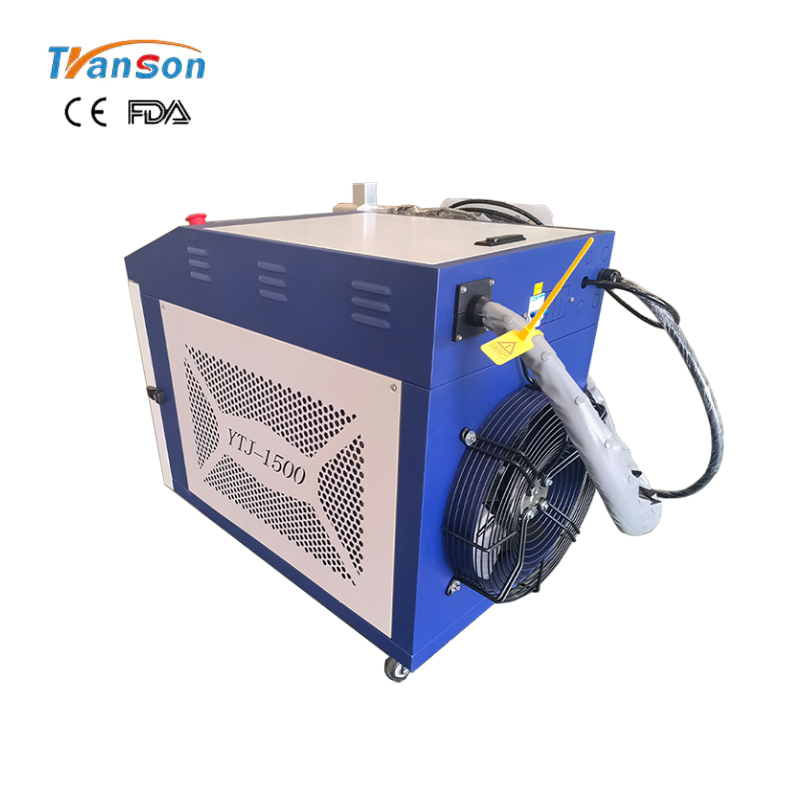

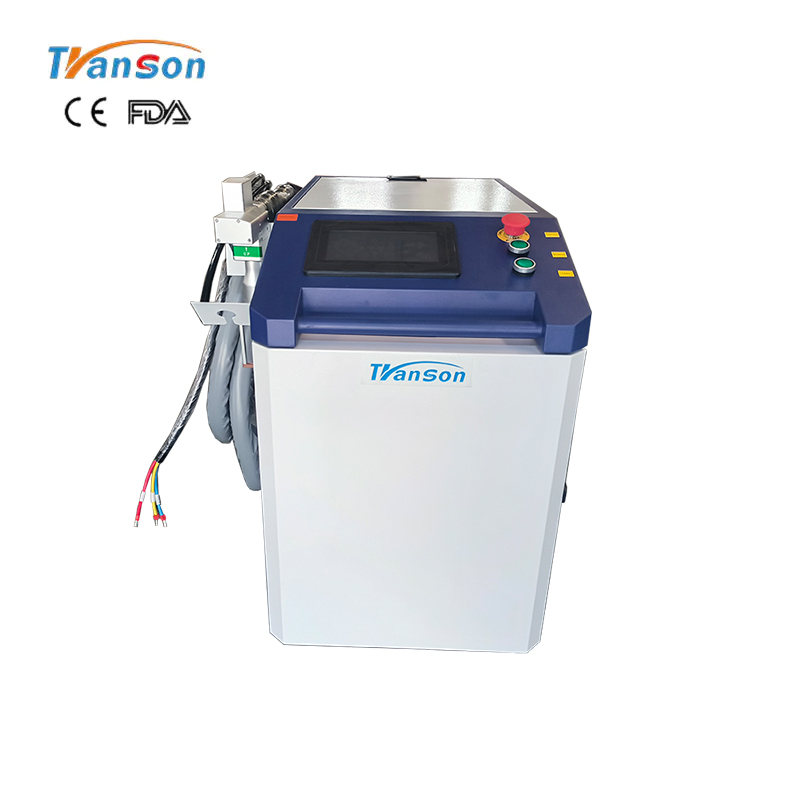

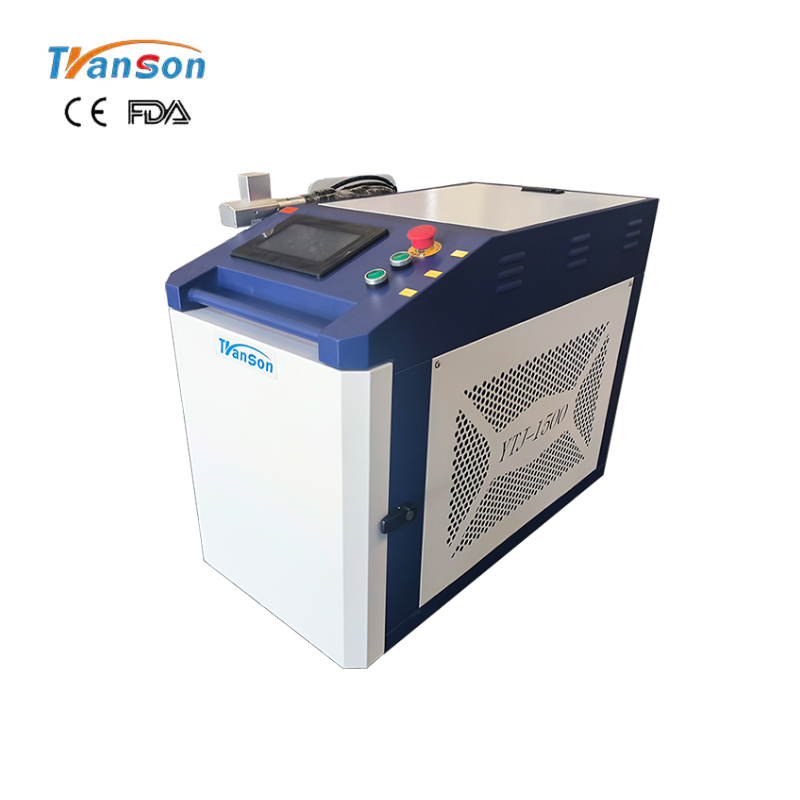

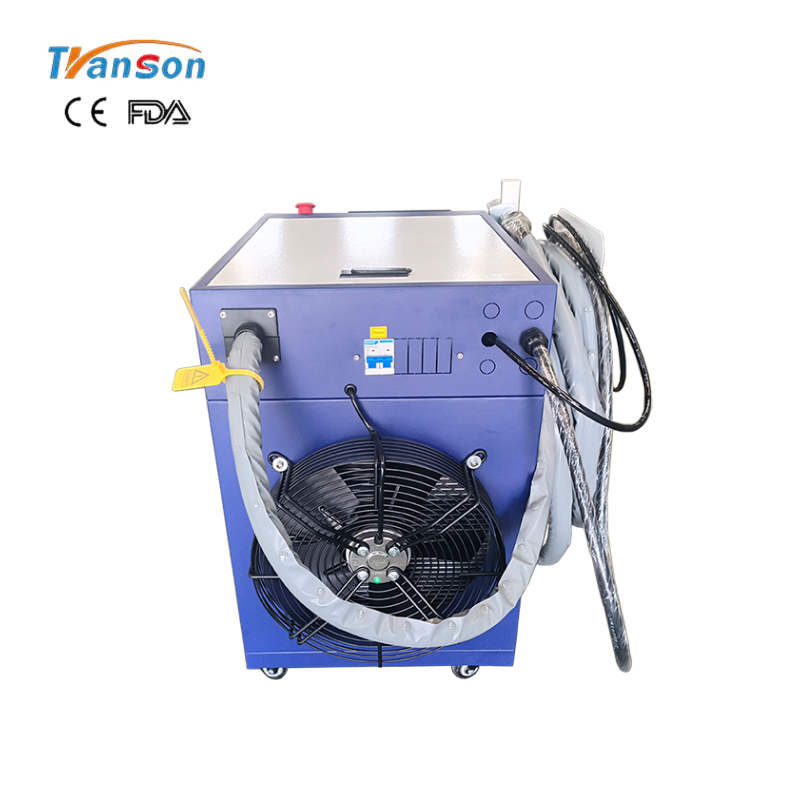

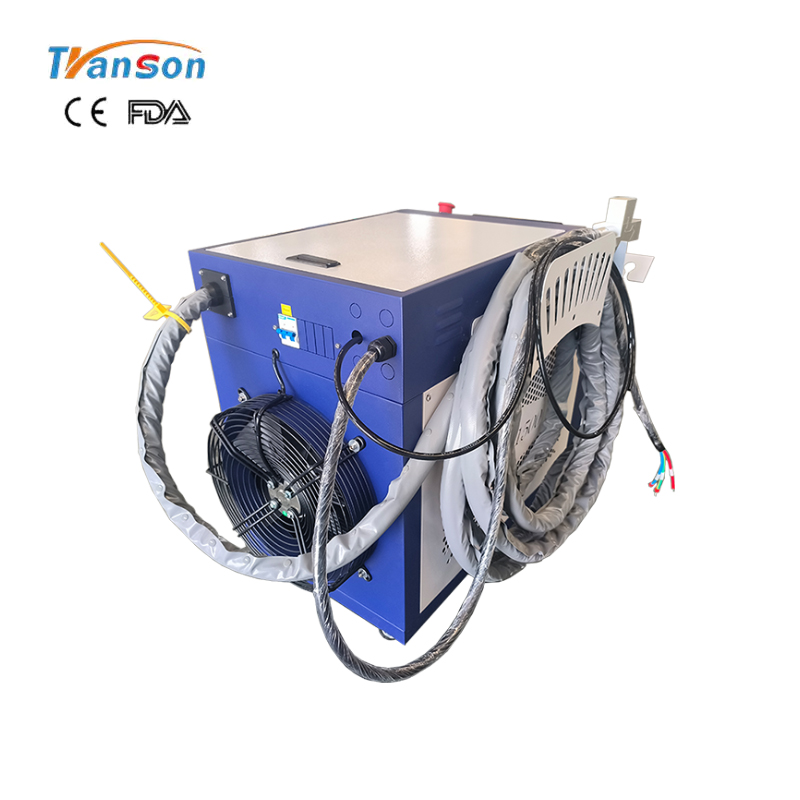

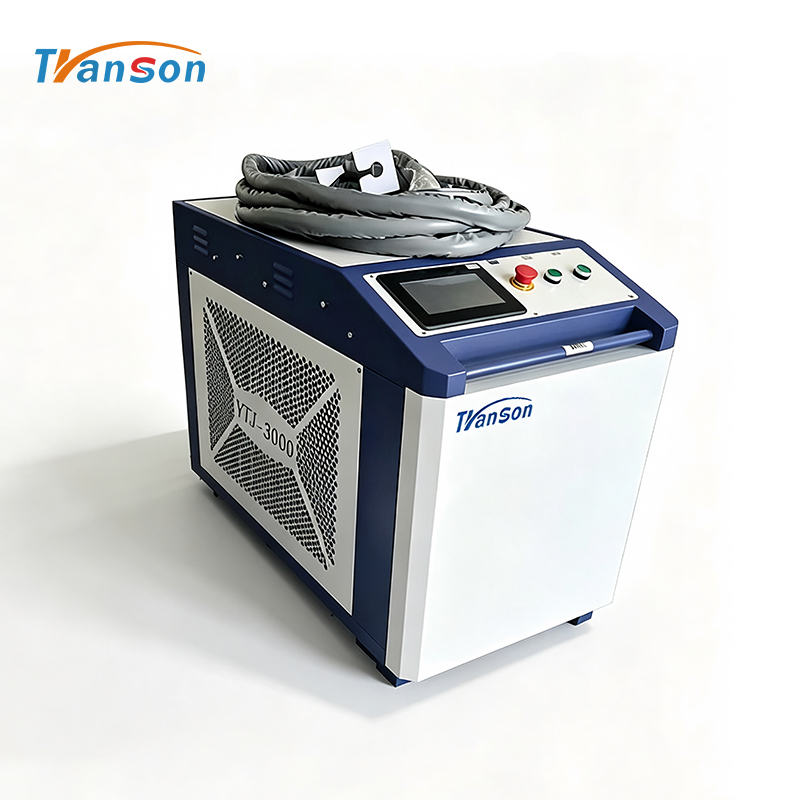

High Quality 1500w 2000w Handheld Laser Welding Machine For Battery

Fiber Model: TSF

Power: 1500W/ 2000W

Cooling way:Water cooling

Operation way:Handhold model

Laser Wavelength:1080nm

这里可以自定义设置

Portable Laser Welding

Machine For Lithium Battery

1. Weld circle diameter: 20mm

2. Weld rectangle size: 40mm longx4mm wide

3. Weld line: 40mm long

Machine video

Portable Laser Welding Machine For Lithium Battery

Portable Laser Welding Machine For Lithium Battery

Model	TSF
Laser Power	1500W/ 2000W
Cooling way	Water cooling
Laser Wavelength	1080nm
Laser Power	0-100%
Working temprature	0- 40 ℃
Voltage	1500w 2000w 220V/50hz 1P or 220V/60hz
LCD control panel size	7 inch
Operation way	Handhold model
Optic cable length (bending radius≥250mm)	8m, can be customized
Working Humidity Conditions:	≤ 80%RH
Machine Packing size	1120mm×550mm×910mm
New Machine Packing size	1050mm520mm890mm
Gross weight	106KGS
New Machine gross weight	96KGS

RODUCT DETAILS

Battery welding, general welding, cleaning, cutting all function in one TSF fiber laser machine

Double Swing Battery Welding Pistol

This is a double wobble (double swing )high precision high speed laser head, combined with the professional control software, can do laser welding of circle, rectangle and line automatically. The one install here is for weld circle. It support weld circle diameter max 20mm.

Double Swing Battery Welding Pistol

Battery welding

With this function, user can easy weld, repair lithium battery, pouch cell for different electric vehicle.

Battery welding

Industrial grade water chiller, it has good protection for the internal components of laser welder, can greatly prolong the service life of the laser welding machine.

Water Chiller

APPLICATION

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
