High Precision Enclosed 6060 Fiber Laser Cutting Machine Cnc Laser Cutter...

High Precision Enclosure 6060 Fiber Laser Cutting Machine CNC Laser Cutter

Model No.: TSF6060

Cooling System: Water Cooling

Applicable Material: Stainless steel, carbon steel, iron

Fiber Power: 1000w 1500w 2000w 3000w

Working Area: 600*600MM

Wavelength: 1080±5nm

这里可以自定义设置

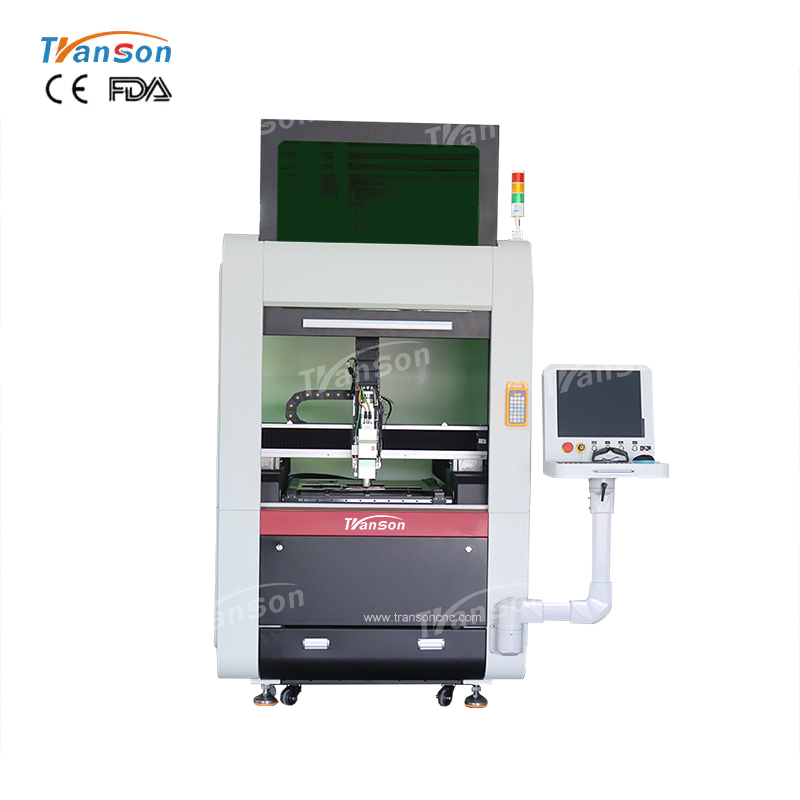

Enclosed 6060 Fiber Laser

Cutting Machine

The fiber laser cutting machine is a full-enclosed small fiber laser cutting machine with high precision, suitable for cutting small precision parts. The whole fiber laser cutting machine adopts the new three-dimensional protective cover and the pull-out table to protect the user's body and make the work more efficient and safe. The fiber laser cutting machine can be used in the workshop and home both, it is the preferred choice for home workers and high-precision device processing.

Machine Videos

TSF6060 Enclosed Laser Cutting Machine

6060 Enclosed Laser Cutting Machine

Parameters:

Description	Specification
Product	Transon Fiber Laser Cutting Machine
Model	TSF
Type	Enclosed
Working area	600*400mm	600*600mm	1300*900mm
Fiber Power	1000w/1500w/2000w/3000w optional
Wavelength	1080±5nm
Cooling way	Water cooling
Control system	FSCUT
Operating system	Cypcut
Cutting head	Raytools
X/Y Max Speed	40m/min
Maximum acceleration	0.5G m/s²
repeat positioning accuracy	±0.02 mm
Voltage	220V/50HZ , 1 phase for 1000w 1500w 2000w
	380v/50hz, 3 phase for 3000w
Whole size	Depends on model
Bearing weight	100kg
Weight	800-1500kgs（depends on model）
X axis servo motor	750W
Y axis servo motor	750W
Z axis servo motor	400W
Laser source	Raycus (Max, IPG optional)

Product Description

Laser Cutting Head

Laser head follow-up function Follow the change of the height of the board, don't worry about the unevenness ofthe board affecting the cutting effect.

Industry Computer

Machine standard with industry computer, with Windows 10 computer, wireless keyboard, wireless mouse. The Cypcut software already install well, user can use directly after receive machine.

Handle Controller

Machine standard with handle controller to easy operate machine. Press button K1/K2 to easy fix or loose the metal sheet. K1=release, K2=clamping.

S&A Brand Water Chiller

Famous S&A brand professional water cooling system, to cool the fiber laser source and cutting head..Dual temperature display and dual controlauto cool or stop cool the water when water temperature higher or cooler than specified temperature.

APPLICATION

Applied materials: This small fiber laser cutting machine is widely applied in carbon steel cutting, mild steel, stainless steel,silicon steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials.Applied Industry: This small fiber laser cutting machine is widely applied in sheet metal processing, aviation, spaceflight,electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment,elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
