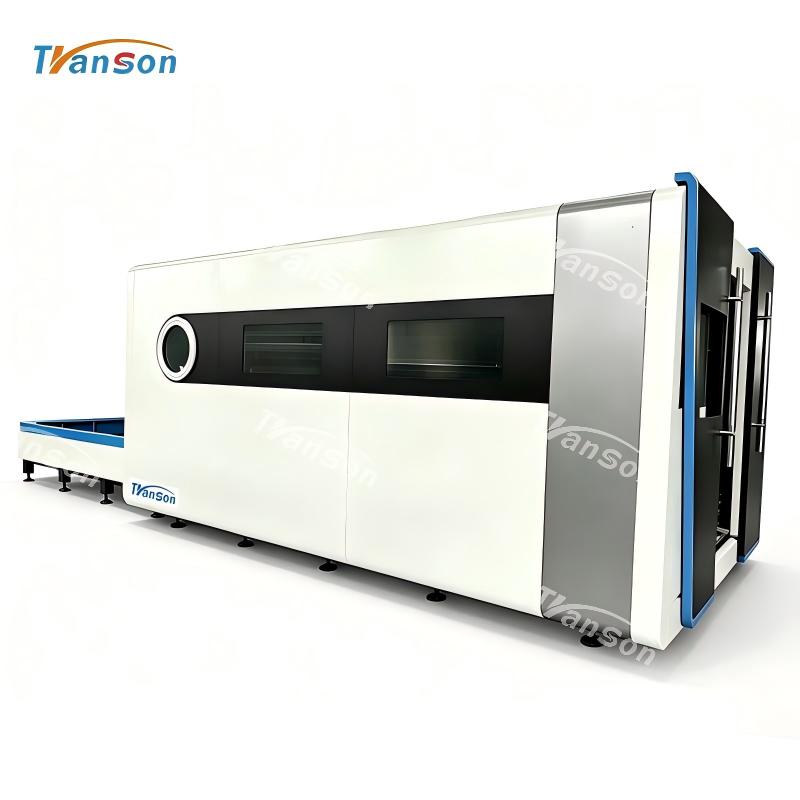

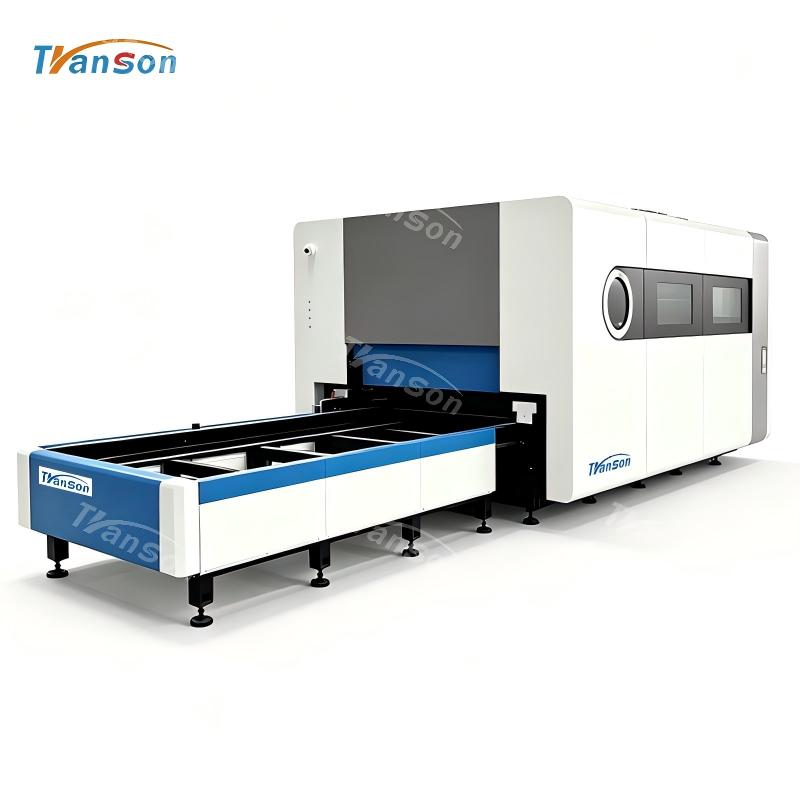

Full Enclosed Exchange Worktable Fiber Laser Cutter

Model No.: TSF1530

Cooling System: Water Cooling

Working Area: 1500*3000mm/ 59*118inch

Applicable Material: Metal

Laser Power:1000W/1500W/2000W/3000W/4000W/6000W

这里可以自定义设置

Full Enclosed Exchange

Worktable Fiber Laser Cutter

Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgy equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, and other fields.

Machine Videos

TSF1530(P) cutting 2mm stainless steel

TSF1530 series fiber laser cutting machine is Transon high end fiber laser cutter with whole protect cover, the whole worktable is full closed. Machine window with European CE standard protective glass. With inner dust filtration treatment, when laser cutting, there is no smoke come out, so environment friendly. What's more, machine with exchange platform, the machine is able to finish the platform exchanging within 15s. The cast iron machine bed, Hiwin rail guide, TBI ball screw, YYC rack and Yaskawa motor, enable this cnc fiber laser cutting machine work stable, precise and have a super long life span.

Parameters:

Description	Specification
Product Name	Transon Fiber Laser Cutting Machine
Model	TSF1530
Type	Exchange-table Enclosed
Working area	1500*3000mm
Laser Power	1500w/2000w/3000w/6000w /12000w optional
cooling way	Water cooling
Laser Type	Fiber
Wavelength	1080±5nm
Control system / Cutting Head	Bochu /Raytools/Au3tech optional
X/Y Max Speed	60m/min
Maximum acceleration	1.0G
repeat positioning accuracy	±0.02 mm
Voltage	220V/50HZ , 1 phase for 1500w-2000w 380v/50hz, 3 phase for 3000w-6000w
Drive system	Servo motor for x y z axis
Transmission way	Rack and Gear

Product Description

Fully Enclosed Laser Protective Cover

Fully enclosed design make the worktable more stable, with European CE standard protective glass. With internal dust filtration treatment, up to standard discharge, no pollution to environment.

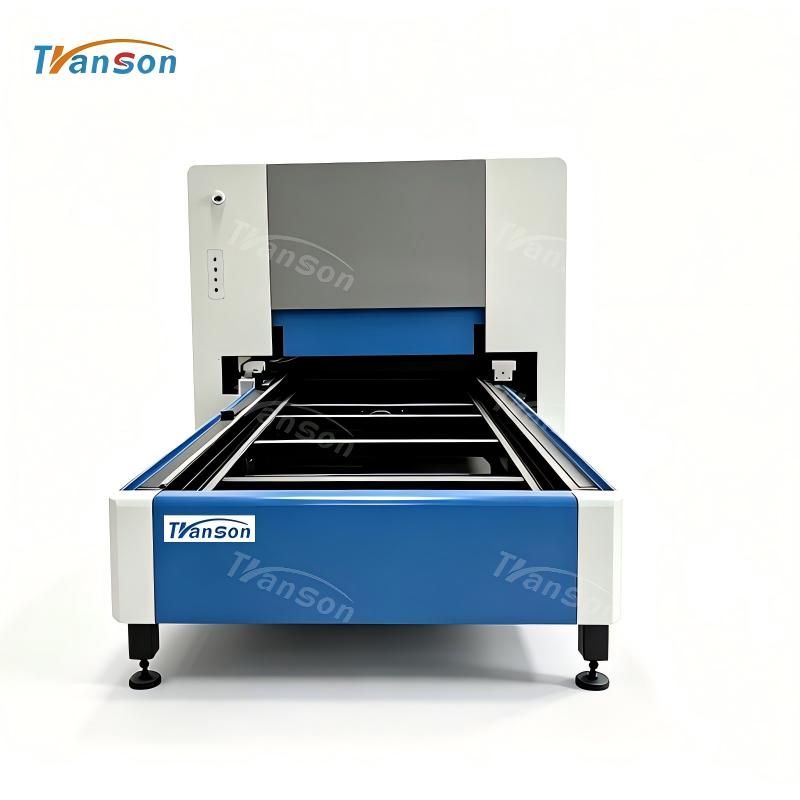

Exchange Platform

It adopts an up and down chain-type parallel exchange platform, chain transmission system realizes fast and stable exchange of the table.

Aerospace Standards Aviation Aluminum Gantry

This 3015 fiber laser cutting machine with aerospace standards aviation aluminum gantry, which has the advantage of good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Cast Iron Machine Bed

This CNC fiber laser cutting machine with a high temperature flake graphite cast iron bed, it is more stable, higher precision and longer life span than other normal weld machine bed. All these can effectively reduce the machining error caused by vibration of the bed, and save users cost.

Yaskawa Servo Motor

Japan Yaskawa servo motor with a close loop control of position, speed and torque, can do high speed cutting work without the out of step problem of stepper motor. What’s more, its high precise and smooth operation make sure it is stable and popular by a lot users.

APPLICATION

Material this fiber laser cutting machine can cut:

1. Metal sheet: Stainless steel,carbon steel, aluminum, copper, galvanized sheet,gold, silver, nickel plate, manganese plate,etc.

2. Metal tube: round tube dia. 20mm - 200mm, square or oval tube side length between 20-155mm

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
