Memory Card Marking Machine Fiber Laser Marking Machine Price

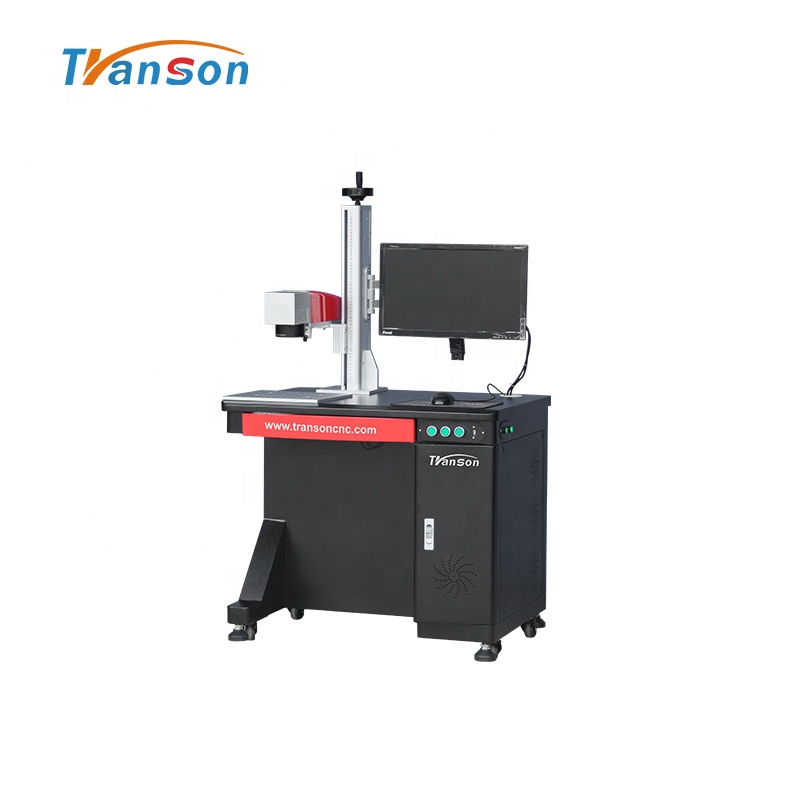

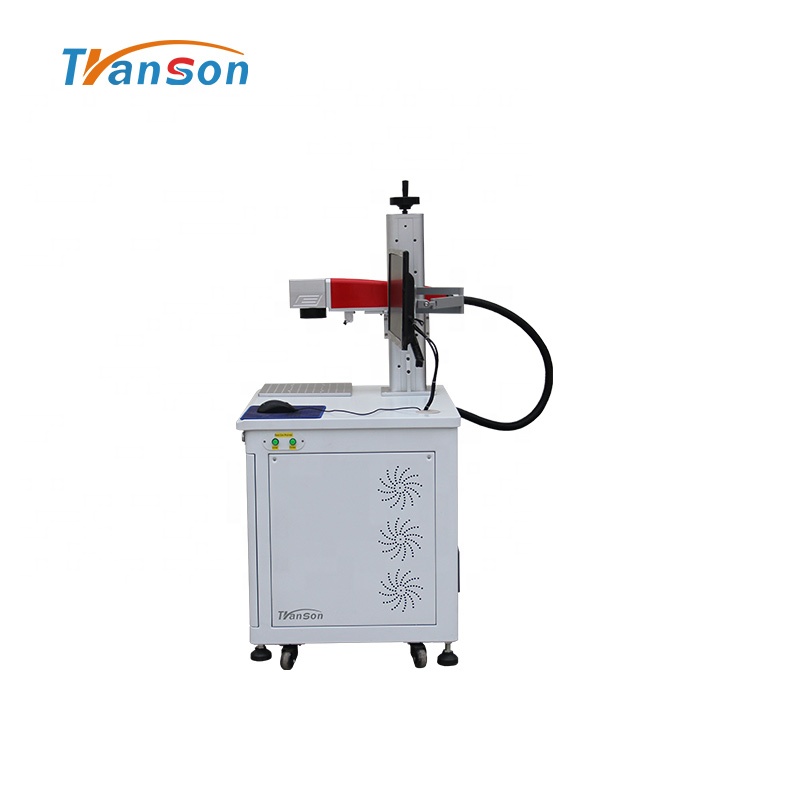

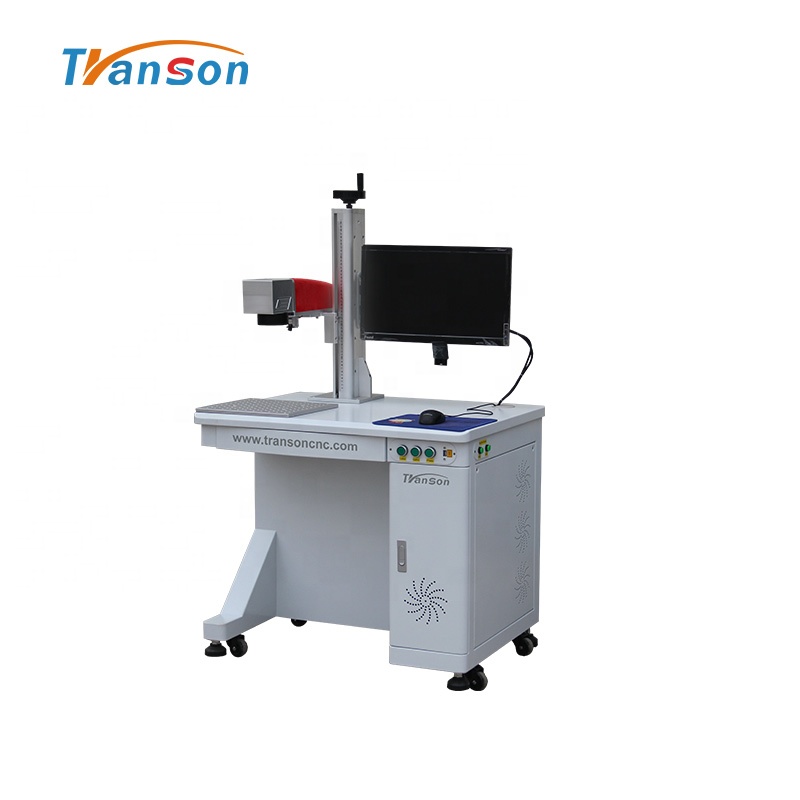

We are laser marking machine manufacturers in China found in 2010. This desktop fiber laser marking machine is Transon hottest model. It standard with industry computer, Philips brand monitor, strong and precise metal plate machine shell. Can install 20W 30W 50W 100W 120W fiber laser source, machine back with rotary port, USB port, ground port, the air switch can protect operator and machine in case any urgency. The cabinet model with big space for wiring part, and fans on the door for easy heat dissipation, special suit for long time mark work. Machine bottom with universal wheels and adjustable fix legs, easy for move around and fix.
Fiber laser marking machine can have some cutting ability by mark many times, if want do some cut work of thin metal sheet like silver, aluminum, brass, gold 1mm thickness, we suggest customer 50W or 100W fiber laser marker. It is much powerful than 20W 30W, can cut through in shorter time.
Fiber laser marking machine can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewellery laser marking machine, led bulb laser marking machine, etc.
Material Transon fiber laser marker can mark or engrave:
1.Metal: Aluminum, silver, brass, copper, stainless steel, gold, iron, steel,Titanium,coating material, anodized or treated metal, etc.
2.Nonmetal: Hard plastic, rubber, marble, granite, ceramic, ABS, leather, electroplating materials, coating materials, epoxy,etc.
If you have any material not show above, you can send us to test free, we will send you test video and photos for confirm and find the most suitable parameter for you.
This fiber laser marking machine we have normal model and MOPA model for choice:
MOPA fiber laser marking machine with all the features of normal fiber laser marker, also with the following special features:
Mopa Features: Pulse width adjustable
1. Colorful marking on stainless steel,
2. Marking white on black plastic
3. Marking black on white plastic
4. Marking black on alumina.
MOPA fiber laser marking machine optional power:
JPT M1: 20W 30W 60W 100W 120W 150W
JPT M6: 20W 30W 70W
Features:
1, FDA Compliant, CE Certification, ISO9001 quality certification.
2, Fast, permanently precise and smooth mark effect.
3, Wide application, can mark on all metal and part nonmetal material.
4, Fiber laser source 100,000 hours life span, almost no maintenance., different fiber laser source brand for choice, like Raycus, MAX, JPT, IPG, etc.
5, High speed galvanometer scan system
6, JCZ advanced control system
7,Standard 110x110mm working area, optional 70x70,200x200,300x300,400x400mm
8, Mini model easy transport, open table not limit material size like small enclosed units.
9, CNC model, with standard Win 10 computer, all software and driver install well for use directly.
10, EZCAD software compatible with other software like Photoshop, AutoCAD, Coredraw, etc. It support import files in different format: AI,PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR, BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF.
11, With inner and outer red dot pointer
12, With foot start pedal, free two hands.
13, Support add optional rotary device for mark on cylinder objects, rings, bracelets, etc.
Transon Desktop Fiber Laser Marking machine |
|
Model |
TSF-20 |
Laser type |
Fiber Laser |
Laser power |
20W/30W/50W/60W/70W/100W/120W optional |
Beam quality |
M2< 1.5 |
Laser wavelength |
1064±1nm |
Power adjustment range |
10~100% |
Output fiber length |
1~2m |
Frequency of pulse |
20~250KHz |
Power supply |
220V/60Hz /8A (110V/60Hz /15A can choose) |
Cooling system |
Air Cooling |
Graphic format supported |
DWG.DXF.PLT.CNC.GBR.DST.AI.BMP |
EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG |
|
XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA |
|
Working area |
Standard: 110*110mm, Optional: 50*50mm, 75*75mm, 150*150mm, 175mm*175mm, 200*200mm, 300*300mm. |
Marking depth |
<1mm |
Marking speed |
<7000mm/s |
Min. line width |
0.05mm |
Repeatability accuracy |
0.003mm |
Power Machine |
300W-800W(Depend on fiber laser power) |
Operation temperature |
0~40°C |
Operation system |
Microsoft Windows 7, 8, 10 system |
Operating environment |
Clean and free of dust |
Warranty |
Two years |
1.Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
2.Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer with ability of research and development, design and production. Our products include fiber laser marking machine, co2 laser marking machine, co2 laser engraving and cutting machine, cnc router and cnc plasma cutter. These machines have been exported to many countries, such as, United Kingdom, Poland, Hungray, Italy, Netherlands, Romania, United State, Mexico, Brazil, Canada, Australia, Korea, Russia, Peru, Chile and other more than 100 countries. Due to srict control for machine qualtiy and good after-sale service, Transon has won an excellent reputation in the global market.
Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010.
Q2: Where are you located? How can we visit you?
A: We locates in Jinan city of Shandong, in the north of China.
Q3: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1).What work you will do?
2). What work table size you will need?
Q4: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc.
Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set
Q5: If I bought a machine, how could you make it safe while shipping.
A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case.
Q6: What's your quality control system?
A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm.
Q7: What's your after-sales service?
A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years.
2) Engineers available service machinery overseas
3) 7X24hours online support and whole life maintenance.
Q8: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disc send together with the machine including machine user manual and software user manual .
2) Online (Skype, Whatsapp, Wechat, Phone)
3) Remote desktop software (Team viewer)
4) Demo Video
Q9:This is my first time buy machine from China, how i buy machine from you?
A:Choose suitable machine through talking with our seller manager → Pay to us→ manufacture and testing machine(about 3-5 workdays) →shipping to you
If you have any other questions, please write email to us or call us, we will reply you ASAP.
