Fiber Laser Cutting Machine for Flatbed

And Metal Tube Cutting

Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgy equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, and other fields.

Machine Videos

TSF1530(ET) cutting 2mm stainless steel

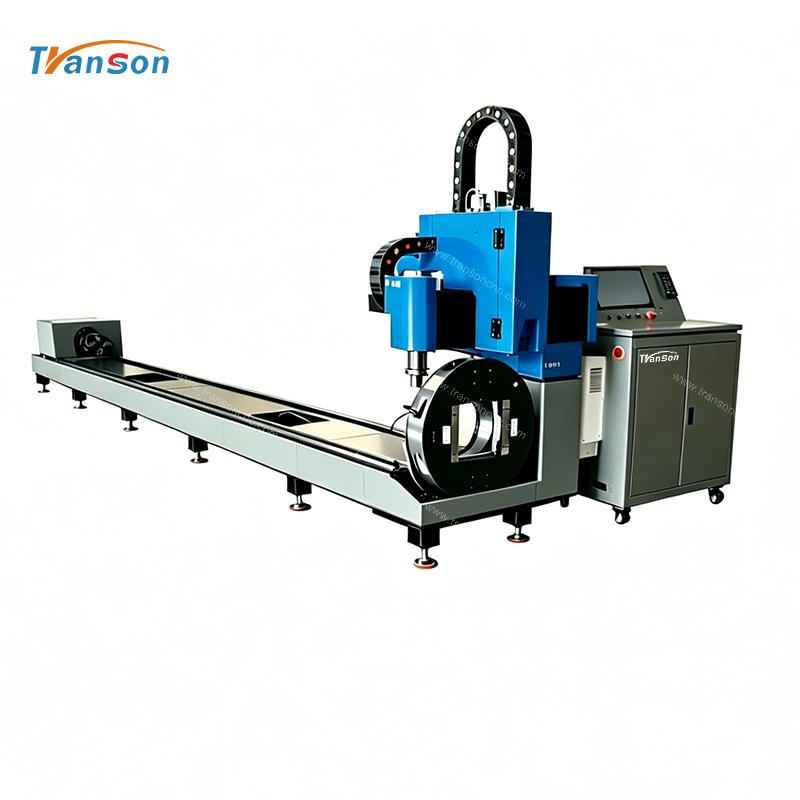

metal tube cutting machine

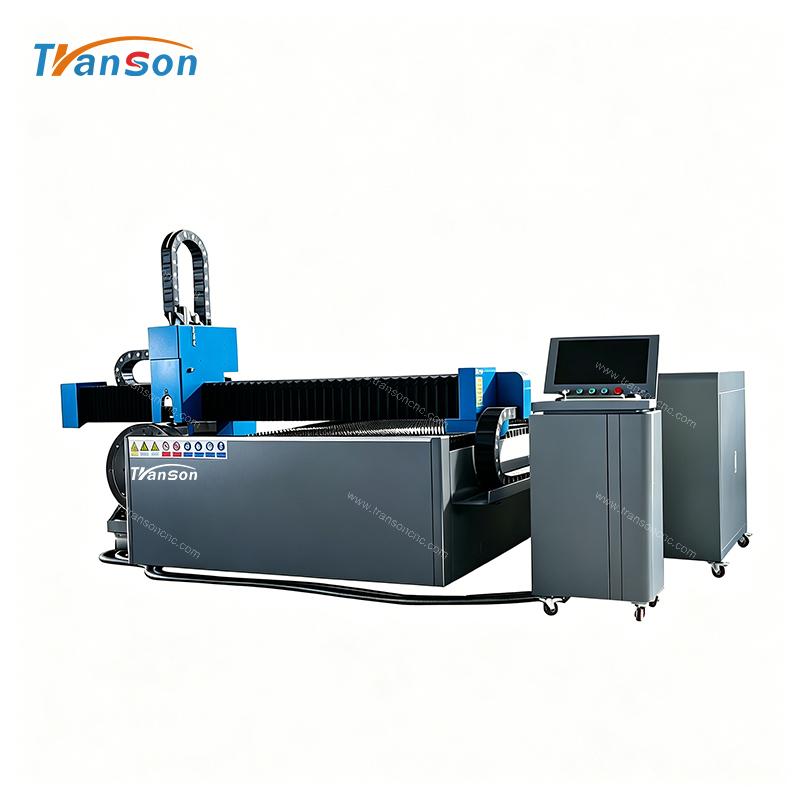

This is fiber laser cutting machine, can not only use as fiber sheet laser cutting machine, but also tube fiber laser cutting machine. What's more, it is with exchange worktable for metal sheet material cutting. This this fiber laser cutting machine tube and plate can realizes the cutting of two different materials shapes on the same machine, it can also saves more than 50% of space and cost with the exchange platform. With stable cast iron machine body and aerospace standards aviation aluminum gantry, this CNC fiber laser cutting machine can do precise and fast cutting work for metal sheet and metal tube.

Parameters:

Description	Specification
Product Name	Transon Fiber Laser Cutting Machine
Model	TSF1530
Type	Flatbed + Tube cutting
Working area	1500*3000mm
Length of tube	3m
Diameter for round tubes (outcicle diameter)	Φ20-Φ200mm
Laser Power	1500w/2000w/3000w/6000w /12000w optional
cooling way	Water cooling
Laser Type	Fiber
Wavelength	1080±5nm
Control system / Cutting Head	Bochu /Raytools/Au3tech optional
X/Y Max Speed	60m/min
Maximum acceleration	1.0G
repeat positioning accuracy	±0.02 mm
Voltage	220V/50HZ , 1 phase for 1500w-2000w 380v/50hz, 3 phase for 3000w-6000w
Drive system	Servo motor for x y z axis
Transmission way	Rack and Gear

Material this fiber laser cutting machine can cut:

1, Metal sheet: Stainless steel,carbon steel, aluminum, copper, galvanized sheet,gold, silver, nickel plate, manganese plate,etc.

2, Metal tube: round tube dia. 20mm - 200mm, square or oval tube side length between 20-155mm

Product Description

Cast Iron Machine Bed

This CNC fiber laser cutting machine with a high temperature flake graphite cast iron bed, it is more stable, higher precision and longer life span than other normal weld machine bed. All these can effectively reduce the machining error caused by vibration of the bed, and save users cost.

Aerospace Standards Aviation Aluminum Gantry

This 3015 fiber laser cutting machine with aerospace standards aviation aluminum gantry, which has the advantage of good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

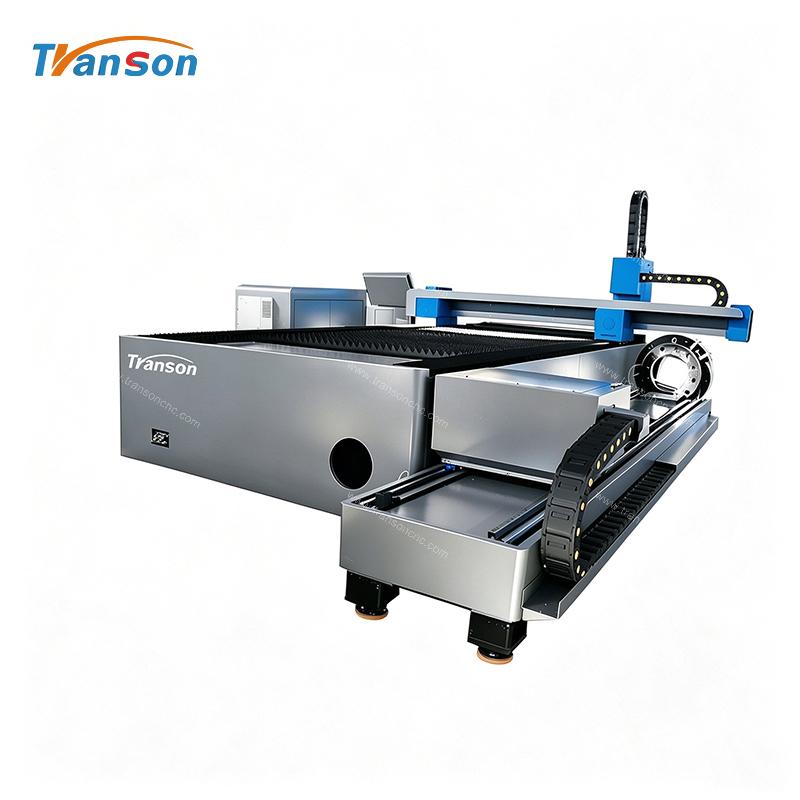

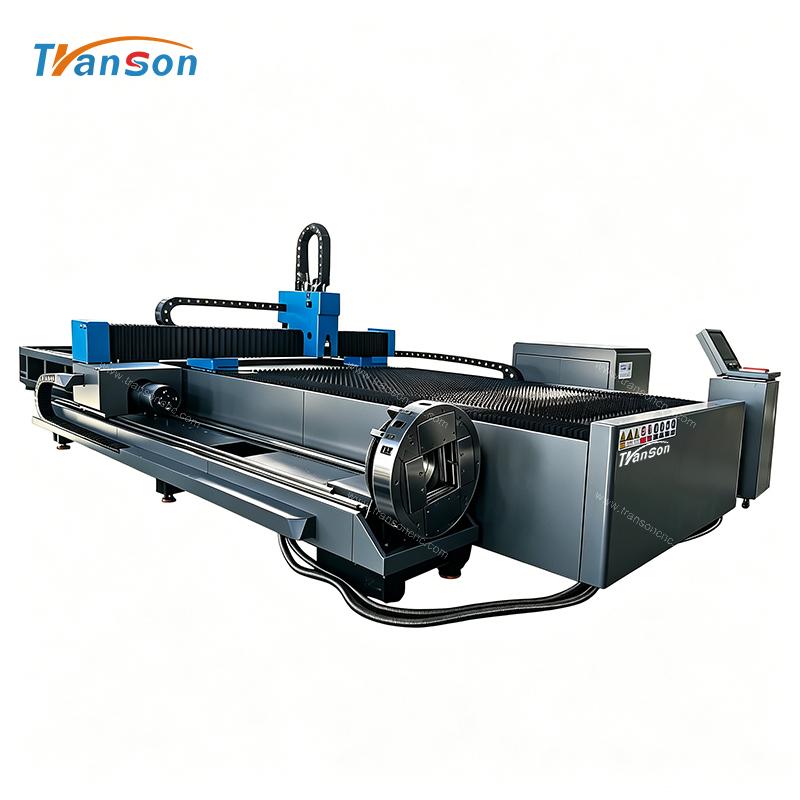

Metal Tube and metal plate cut, dual use, save space and labor

The sheet and tube fiber cutting machine realizes the cutting of two different materials shapes on the same machine tool.

Users no need buy two fiber laser cutter separately, it can also save workshop space, and only need one engineer operate it.

Yaskawa Servo Motor

Japan Yaskawa servo motor with a close loop control of position, speed and torque, can do high speed cutting work without the out of step problem of stepper motor. What’s more, its high precise and smooth operation make sure it is stable and popular by a lot users.

APPLICATION

TSF1530 Fiber Laser Cutting machine:

Professional used to cut thin sheet metal, in a variety of high quality 0.5-12 mm carbon steel sheet cutting, also cut stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate and other metal materials.

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
