Fiber Laser Cleaning Metal Machine 100w

Fiber Laser Cleaning Metal

Machine 100W

Fiber Model: TSF-100

Power: 100w

这里可以自定义设置

Fiber Laser Cleaning Metal

Machine 100W

Laser rust removal cleaning machine have the special features below:

1) Non-contact cleaning, without damage to parts matrix.
2) Precise cleaning, with accurate location, precise size and selective cleaning.
3) No chemical cleaning fluid, no consumables, safe and environmental protection.
4) Simple operation, the power can be charged, and the automatic cleaning
can be realized by hand or with the manipulator.
5) Cleaning efficiency is very high and saving time.

6) The laser cleaning system is stable and little maintenance requirement.

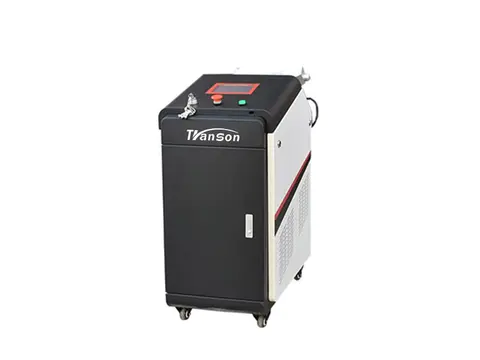

Machine view

Parameter

Model	TSF-50/ TSF-100
Laser Power	Raycus 50W/ 100W
Scan head brand	Sino-Galvo
Cooling way	Air cooling
Laser Wavelength	1064nm
Laser Power	0-100%
Laser Frequency	20-200KHZ
Clean width	1-20mm
Clean length	1mm、3mm、6mm、12mm、25mm、50mm、100mm
Clean speed	1-1000mm/s (adjustable)
Working temprature	0- 40 ℃
Voltage	220V±10%, 50-60hz
LCD control panel size	3.5inch
Operation way	Handhold model
Hand-piece size	406.5×70×113.7mm
Hand-piece weight	2.5±0.1Kg
Optic cable length (bending radius≥250mm)	3m, can be customized
Working Humidity Conditions:	≤ 80%RH
Packing size	69452700px
Gross weight	120kgs

PRODUCT DETAILS

SINO brand high speed scan head.

Our galvo scanner system is equipped with high speed motors which imported from America, and input aperture diameter is 9mm. It has the advantages of small size, light weight, high speed and precision, good stability. The overall performance has reached the international level in this field. The whole handhold piece size 406.5×70×113.7mm, gross weight 2.5kgs.

With 3.5inch Touch Screen

Mini portable 3.5 inch control panel, cleaning speed, clean length and laser frequency, laser power, laser duty cycle, mode all easy controlled.

Switch

Humanized control system, easy to learn, dust proof design.

Strong control box with universal wheels, easy move around.

Raycus 100W fiber laser source, with 100,000 hours life span.

APPLICATION

Fiber laser cleaning machine is a new generation of high-tech surface cleaning products, also called laser rust remove machine or rust laser cleaning machine. It is easy to install, control, and implement automation.

With Simple operation, switching power supply, open the device, then it can be achieved cleaning without chemical reagent, medium and water washing, it has many advantages of the focus adjustment manually,

joint surface cleaning, higher cleaning surface cleanliness, it also can remove the surface of resin, grease, stains, dirt, rust, coating, paint on objects.

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
