factory supply 20W IPG mini Fiber cnc Laser Marking Machine for cooking utenlis

这里可以自定义设置

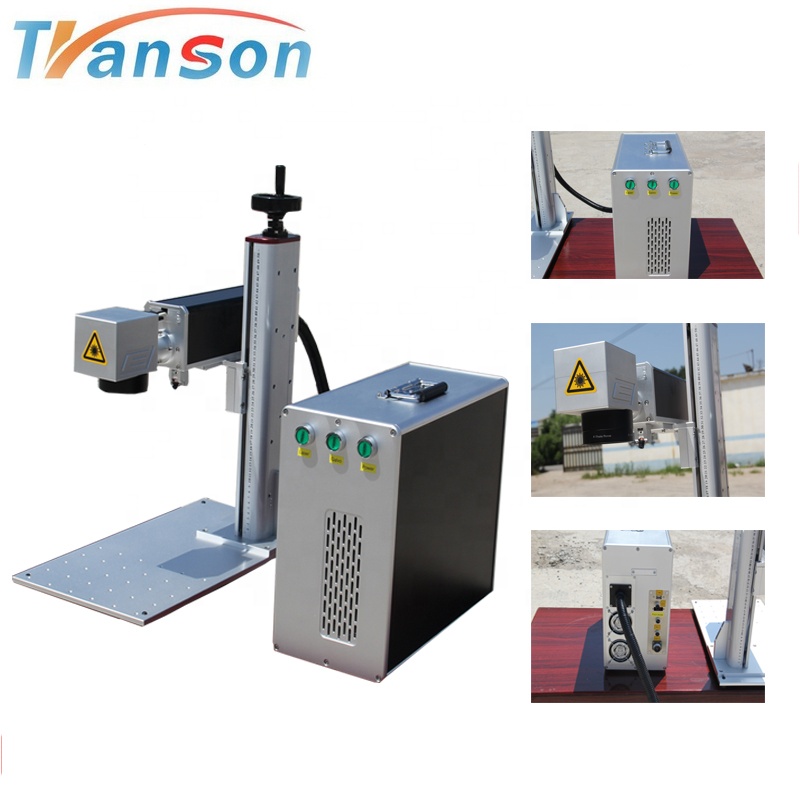

factory supply 20W IPG mini Fiber cnc Laser Marking Machine for cooking utenlis
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Marking
Working Accuracy:
0.002mm
Graphic Format Supported:
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Laser Type:
Fiber Laser
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
RAYCUS
Control System Brand:
BJJCZ
Marking Head Brand:
Sino
Weight (KG):
69 KG
Key Selling Points:
Easy to Operate
Warranty:
3 years
After-sales Service Provided:
Online support, Video technical support
Applicable Industries:
Garment Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Advertising Company, fiber laser marking machine
After Warranty Service:
Video technical support, Online support
Local Service Location:
Russia
Showroom Location:
United Kingdom, Peru, Pakistan, Russia, Romania
Marking Area:
110mm*110mm
Beam quality:
M2< 1.5
Laser wavelength:
1064±1 nm
Power adjustment range:
10~100%
Output fiber length:
1~2m
Frequency of pulse:
20~250KHz
Power supply:
220V/60Hz /8A (110V/60Hz /15A can choose)
Marking depth:
<1mm
Marking speed:
<5000mm/s
Min. line width:
0.05mm
Product name:
laser mark machine shop
Supply Ability
Supply Ability:
200 Set/Sets per Month
Video Description

 factory supply 20W IPG mini Fiber  cnc Laser Marking Machine for cooking utenlis







Product Description



Application materials:

Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc

Alloy and metal oxides: Anodized Aluminum

Some non-metallic materials & Special surface treatment:silicon waferPoly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.



Application Industry:

1.Electrical Engineering and Electrical part and component

2.Mobile (Cover, battery, keyboard, IPhone Case)

3.Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft

4.Building materials,PVC pipe

5.Car motor car spare part, Instrument and meters and cutting tool

6.plastic case,aviation and aerospace,

7.military product,hardware fitting and accessory,sanitary appliance

8.food and beverage ,Medicine package and medical instrument,solar Pv industry







Mini Fiber Laser Marking Machine

Model

TSF

Laser  type

Fiber Laser

Laser  power

20W

Beam  quality

M2< 1.5

Laser  wavelength

1064±1nm

Power  adjustment  range

10~100%

Output  fiber  length

1~2m

Frequency  of  pulse

20~250KHz

Power  supply

220V/60Hz /8A (110V/60Hz /15A can choose)

Cooling  system

Air Cooling

Graphic  format  supported



XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA

Working  area

110mm*110 mm(Standard)

Marking  depth

<1mm

Marking  speed

<7000mm/s

Min. line  width

0.05mm

Repeatability  accuracy

0.003mm

Power  Machine

300W-450W

Operation  temperature

0~40°C

Operation  system

Microsoft Windows 7, 8, 10 system

Operating  environment

Clean and free of dust

Warranty

Two years

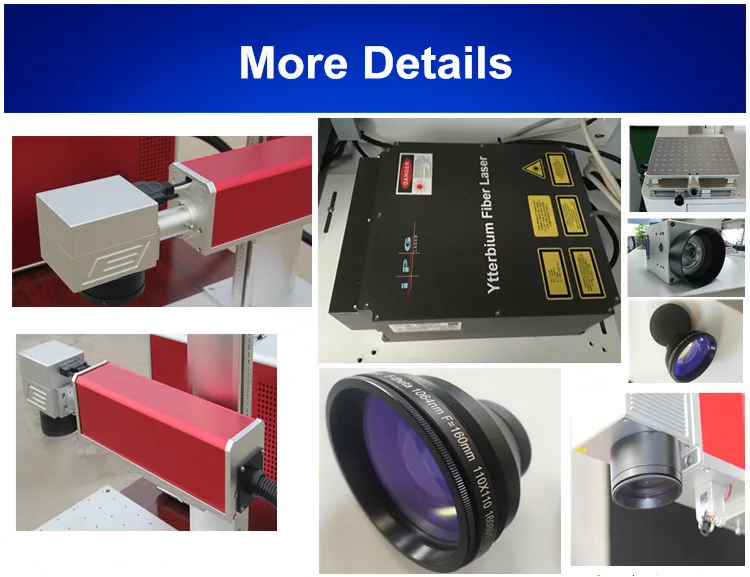

Product Details



Application



The Fiber Laser Marking Machine is used in many industries, such as mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.



Packaging & Shipping



Company Information

Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC Router and Laser equipment, specialized in researching and studying the application in advertising, woodworking, laser and other fields.
Our products are widely used in the following industries: Woodworking, Advertising, Art making, Models, Electrics, CAD/CAM industry, Clothing, Package Printing, Marking and Laser Sealing and so on.We guarantee everything is under our inspection and control, including the selection of raw materials, assembly technology, testing, packaging, and fast technical support and good after-sales service.
Our machine has exported to UK, USA, Canada, Brazil, Panama, South Africa, Germany, Poland, Switzerland, Greece, Turkey, Australia, Berlin, India and so on. Our products get good feedback from the agents and users. We are still trying our best to produce innovative products to help customers lower their cost. We are a serious supplier. If you are interested in our products, please do not hesitate to contact us for future cooperation. We hope to get mutual benefits with you in the near future.





Warranty



1.  24 Months for Machine

2. 10 Months for laser tube, lens and mirror

3. 12 Months for equipments outside, such as water pump, fan, air pump, etc.

4. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.

5.  Lifely and fast technical guide and solution within 24hours by email and web camera.



contact

If you need more information or have any special requirement, pls feel free to tell me.

We will be at service at any time.We would like to become your honest and long-term

supplier in the near future.

The compact features of this product makes it popular among customers. Critical safety features are integrated into the design. The product is highly acclaimed in both national and the global market in the industry. Critical safety features are integrated into the design.
