Auto Feed Fabric Laser Cutter

Home  > Auto Feed Fabric Laser Cutter  >

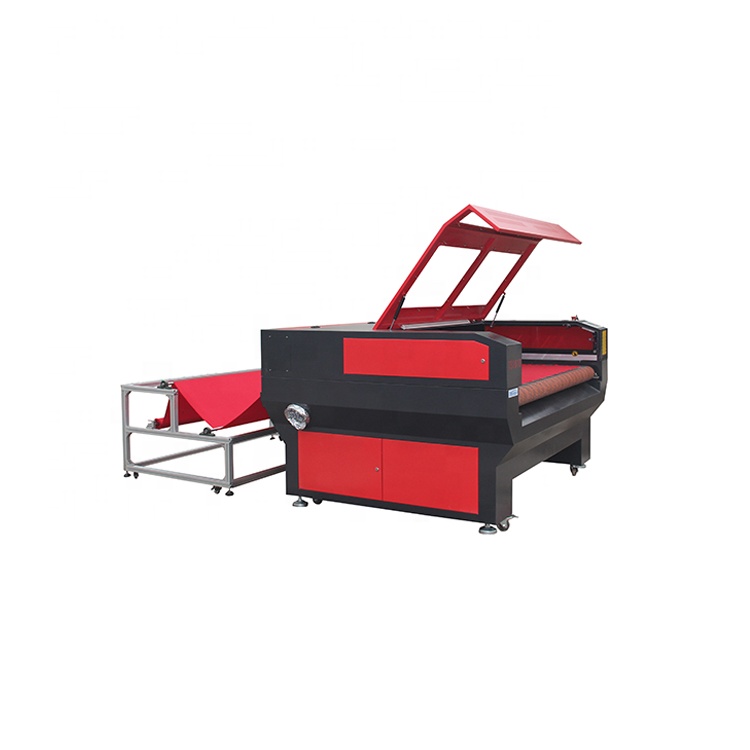

Factory Price Long Service Life Non-metal Cutting 100w Laser Cutting Machine

这里可以自定义设置
Factory Price Long Service Life Non-metal Cutting 100w Laser Cutting Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
LASER CUTTING
Applicable Material:
Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Fabric, Cloth, Ceramic, Crytal
Condition:
New
Laser Type:
CO2
Cutting Area:
1600*1000mm
Cutting Speed:
0-70000mm/s
Graphic Format Supported:
AI, BMP, Dst, DXF, PLT
Cutting Thickness:
5mm fabric
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
Laser cut 5.3 (Leetro)/ RDWorks V8 (Ruida)
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
RECI
Laser Head Brand:
China made
Servo Motor Brand:
stepper motor
Guiderail Brand:
PMT
Control System Brand:
Ruida controller
Key Selling Points:
Long Service Life
Optical Lens Brand:
Wavelength
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Applicable Industries:
Garment Shops, Retail, Printing Shops, Advertising Company
Color:
Red Black
Laser Fabric Cutting Machine Usage:
Non-metal Cutting, Especially Fabric, Leather
Laser Power:
100w Reci Brand Laser Tube
Auto Feeding System::
Includ Auto Feed Worktable
Control System::
RUIDA USB control system
Air Assist:
Air Compressor
Exhaust System::
Exhaust Fan And Pipe
Leaser Head:
standard one, optional two head
Machine Size:
2060*1410*1140mm
Package Size:
2340*2080*1350mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
234X208X135 cm
Single gross weight:
500.000 kg
Package Type:
Our machine have 3 layer package: 1. The outside layer is plywood box with metal belt around it. 2. The middle layer is foam. 3. The inner layer is waterproof film wrap around all over the machine for moisture. We can also pack according your requirment.
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Factory Price Long Service Life Non-metal Cutting 100w Laser Cutting Machine

Machine feature



Model

TSF1610

Working area

1000mm*1600mm / 39.37in*62.99in (L*W)

Heads

Standard one, optional two or four

Laser power

Reci W2 90W-100W+ CW3000 water chiller

Laser type

CO2 sealed laser tube, water-cooled

Worktable

Standard with auto feeding worktable

Engraving speed

0-70000mm/min

Cutting speed

0-40000mm/min

Highest scanning precision

2500DPI

Power supply

220v/50Hz , 110v/60Hz

Min. shaping character

English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Graphic.format.supported

BMP, PLT, DST, DXF, AI

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Control system

High speed DSP control system brand Ruida or Leetro

Machine work software

RDWorks V8 (Ruida)

Laser output control

1-100% by setting in the software

Interface

USB

Color separation

Yes

Optional part

Red dot pointer

Spare parts

Extra laser tube/Extra 1 lens and 3 mirrors

Suitable for

Roll materail like cloth, fabric, leather and etc.



Application



1,100w Reci brand laser tube, able to do both engraving and cutting on most non-metals, such as fabric, leather, cloth, jeans, wood, acrylic, mdf, rubber, foam, etc.But for this model with auto feeding worktable, we suggest only for light material like fabric, leather, paper. Not suggest for heavy material in case damage the worktable.



2. Auto feeding system, feeds roll materials automatically to the machine table, saving work force and convenient.

Guarantee and after-sale service

1.One year guarantee for whole machine except of laser tube and lens

2.24 hours technical support by e-mail, calling or door-to-door service

3.English software, user manual and detailed Videos CD



Applicable Materials

Cloth,fabric,leather,woolen,paper,embroider,wood,acrylic,organic glass, rubber, plastic, compound material and other non-metal materials,etc





Packaging & Shipping





 Other laser machines you may interested in:



1. Four heads model with auto feeding worktable







2, 1600X2000mm working area laser cutter with auto feeding worktable:





3, 1600X3000mm working area laser cutter with auto feeding worktable:



4. Normal 1610 1600x1000mm laser cutter with blades worktable or honeycomb worktable:

Company Information



Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer with ability of research and development, design and production. Our products include fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter.



Transon CNC has won an excellent reputation in the golbal market. We are cooperating with many well-known companies all over 100 counties, including Turkey, United Kingdom, United States, Korea, russia, Peru, Chile, etc. We alos maintain a friendly long-term cooperation with domestic laser research institues all over the years.



Our Services

1, All the components of our laser machines are with the highest quality, good finish and good quability. Our quality control department will fully check and test EVERY ONE of our laser machines before shipment. We can 100% make sure all our customers will get good products from us, and we have TWO year warranty for our laser machine. Usually the life time of glass laser tube is 100,000 hours, machines can keep working 24 hours a day, usually working more than 8 hours a day is totally no problem.

2, Together with the laser machines we send together "Instruction Book", "Operation Manual" and "Training Video" (in English version) our customer can easily understand and operate our machines when they arrive.

3, We will offer plenty of online supports,  by email, video, telephone and fax.

4, Our engineer can make a door-to-door instruction training service if needed.





Welcome to contact Transon laser by leaving a message below or send inquiry to us for further information.Your kind response of below questions will help us to recomemnd the most suitable model to you asap.
1,Are you looking for laser cutting machine or laser engraving machine?
2,Which material need to cut or engrave ?
3,What is the thickness and size of materials?
4,What is your business industry?
