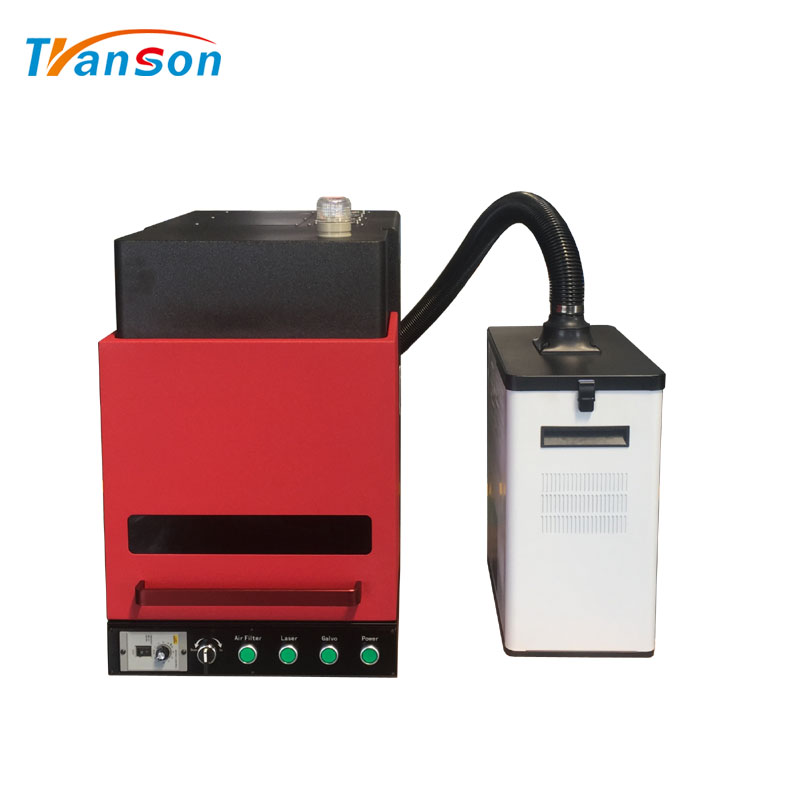

Enclosed Fiber Laser Marking Machine With Air Filter

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.003mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, SVG,JPC,NC,G,BOT,GBR, JPG,JPEG,GIF,TGA,PNG,TIF,TIFF

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: RAYCUS

Key Selling Points:: High Safety Level

Warranty:: 3 years

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Product name:: Fiber Laser Marking Machine

Marking Speed:: 0-5000mm/s

Marking area:: 110*110mm(50*50mm/150*150mm/175*175mm/200*200mm optionals)

Laser wavelength:: 1064nm

Marking Depth:: 0.01-1mm

Lifespan of laser device:: 100000hours

Laser source:: Raycus

Marking Format:: Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number

Laser head:: Galvenometer Head

Voltage:: 110V/220V

Supply Ability

Supply Ability:: 300 Set/Sets per Month

PRODUCT DESCRIPTION

Parameter:

Model	TSF-20 /TSF-30/TSF-50/TSF-100 Mini Sealed with Air Cleaner
Laser type	Fiber Laser
Laser power	Raycus 20W/ 30W /50W/100W(IPG, JPT, Max optional)
Beam quality	M2< 1.5
Laser wavelength	1064±1 nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~80KHz
Power supply	220V/50Hz /8A (110V/60Hz /15A can choose)
Cooling system	Air Cooling
Graphic format supported	Bitmap: BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF
Graphic format supported	Vector: AI, PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR
Working area	110mm110 mm(Standard) can choose 5050, 150150, 175175, 200*200 (mm)
Marking depth	<1mm
Marking speed	<5000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300-600W
Operation temperature	0~40°C
Operation system	Microsoft Windows system Win7, Win8, Win10.
Machine size	430768745mm(LWH) exclude air filter

PRODUCT DETAILS

MAIN PARTS:

380*265mm Work Table Back Sockets

Raycus Laser Source Electric up down scan head

USB Interfaca Top LED Light

OPTIONAL PARTS:

APPLICATION

1.Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

2.Applicable Materials

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
