Enclosed 20w Raycus Fiber Laser Marking Machine For Metal...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.002mm

Graphic Format Supported:: AI, BMP, Dst, DXF, DXP, PLT, Dwg, SVG,JPC,NC,G,BOT,GBR,BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF.

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: RAYCUS

Control System Brand:: BJJCZ

Marking Head Brand:: SINO

Key Selling Points:: High-accuracy

Warranty:: 3 years

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Advertising Company

Fiber laser marking machine power:: 20W

Beam quality:: M2< 1.5

Laser wavelength:: 1064±1 nm

Power adjustment range:: 10~100%

Frequency of pulse:: 20~250KHz

Power supply:: 220V/60Hz /8A (110V/60Hz /15A can choose)

Working area:: 110mm*110 mm(Standard) can choose 150*150mm 200*200mm 300*300mm

Marking depth:: <1mm

Marking speed:: <5000mm/s

Min. line width:: 0.05mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 84X53X82 cm

Single gross weight:: 92.000 kg

Package Type:: International standard plywood package box for Enclosed Fiber Laser Marking Machine For Ring Gold And Metal With Door Open Protection

Lead Time :

Quantity(Sets)	1 - 2	3 - 5	>5
Est. Time(days)	7	10	To be negotiated

Product Description

Features:

1, Can mark on all kinds of metal and part nonmetal, include steel, aluminum,gold, silver, ss,cs, hard plastic, ABS,coating
material, etc.2,Enclosed model no harm to your body, small window seat in the front no harm to your eye.
3, With button control auto focus function, easy operate.
4, Optional air filter, no smoke come out, suit work in any public area like hall, shopping center,etc.
5, With door open protection, if door open, software will warn and won't mark, only when door closed can it mark.

Warning on door open

"Door is open, please close it", this will show on your EZCAD software, and you can not mark until close the door.

Detailed Images

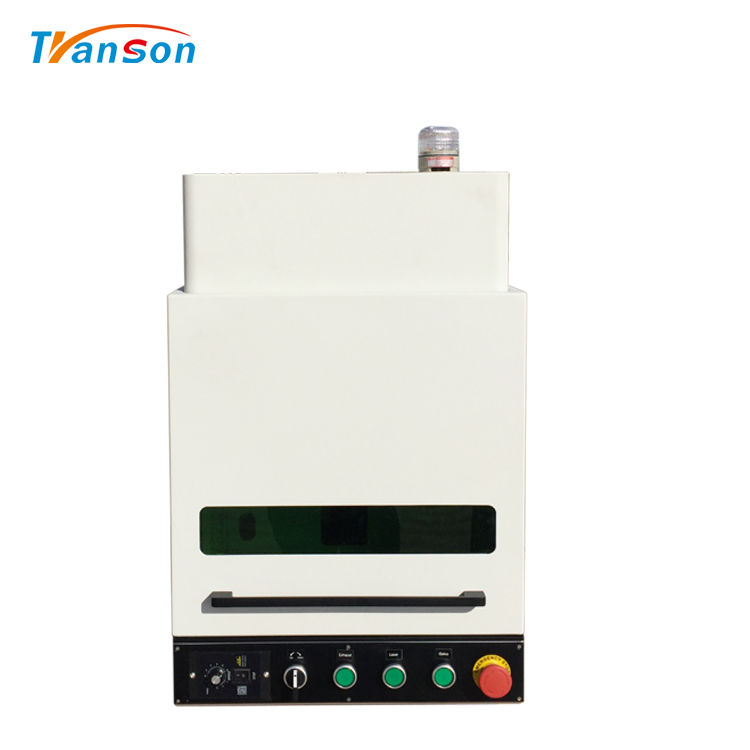

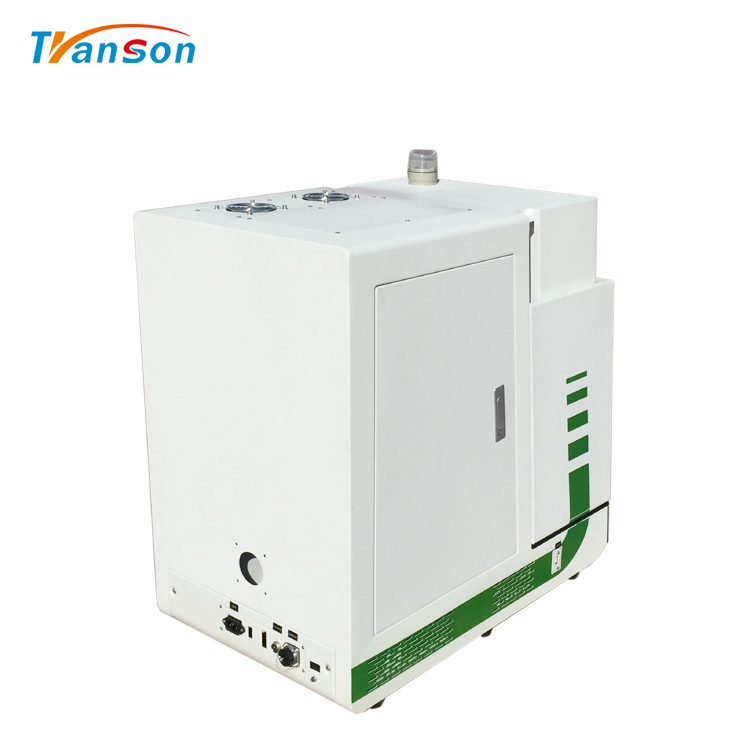

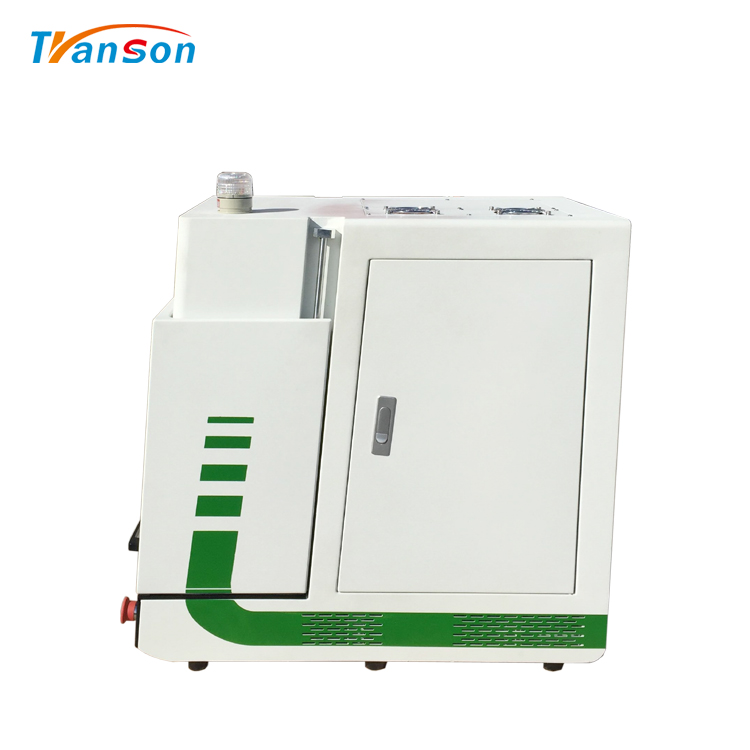

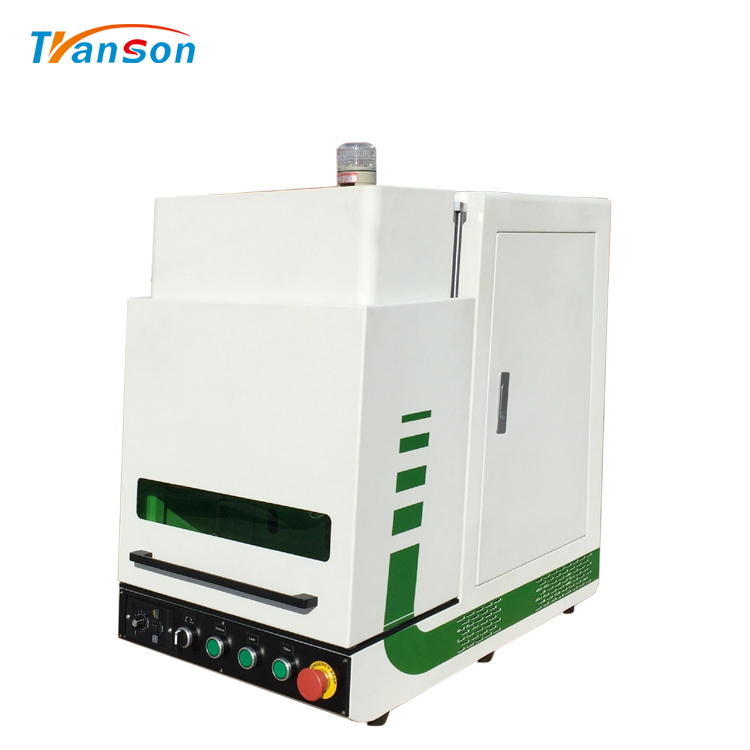

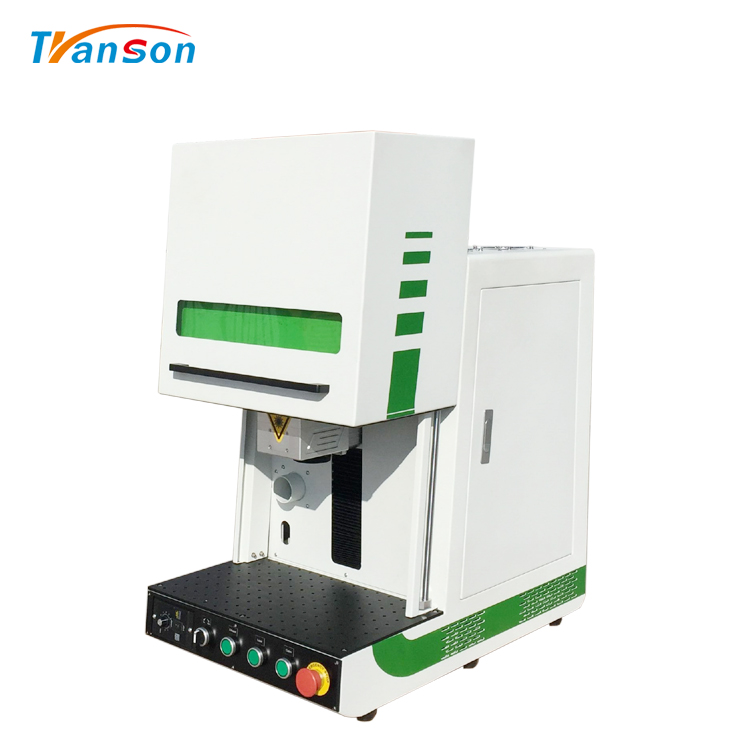

Strong machine body with environment friendly beautiful painting. Door with green acrylic window, can avoid radiation to operator's eyes when operate it.

Machine Size:

Machine size: 430cmx768mmx 687mm, (widexlengthxheight)

Model	TSF-20
Laser type	Fiber laser
Cooling type	Air cooling
Laser wavelength	1064nm
Power adjustment range	10-100%
Output fiber length	1-2m
Frequency of pulse	20~250KHz
Power supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Graphic format supported	AI, PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR, BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF.
Working area	110mm110 mm(Standard) can choose 5050, 150150, 175175, 200*200 (mm)
Marking depth	<1mm
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300-450W
Operation temperature	0~40°C
Operation system	Microsoft Windows 7, 8, 10 system
Operating environment	Clean and free of dust

Application:

Application Materials:
Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
Alloy and metal oxides: Anodized Aluminum
Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.

Application Industry:
1.Electrical Engineering and Electrical part and component
2.Mobile (Cover, battery, keyboard, IPhone Case)
3.Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4.Building materials,PVC pipe
5.Car motor car spare part, Instrument and meters and cutting tool
6.plastic case,aviation and aerospace,
7.military product,hardware fitting and accessory,sanitary appliance
8.food and beverage ,Medicine package and medical instrument,solar Pv industry

Packing&Shipping

Standard plywood package box for our enclosed fiber laser marking machine.

Company Introduction

Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC Router and Laser equipment, specialized in researching and studying the application in advertising, woodworking, laser and other fields.

Our products are widely used in the following industries: Woodworking, Advertising, Art making, Models, Electrics, CAD/CAM industry, Clothing, Package Printing, Marking and Laser Sealing and so on.We guarantee everything is under our inspection and control, including the selection of raw materials, assembly technology, testing, packaging, and fast technical support and good after-sales service.

Our machine has exported to UK, USA, Canada, Brazil, Panama, South Africa, Germany, Poland, Switzerland, Greece, Turkey, Australia, Berlin, India and so on. Our products get good feedback from the agents and users. We are still trying our best to produce innovative products to help customers lower their cost. We are a serious supplier. If you are interested in our products, please do not hesitate to contact us for future cooperation. We hope to get mutual benefits with you in the near future.

FAQ

Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010.
Q2: Where are you located? How can we visit you?
A: We locates in Jinan city of Shandong, in the north of China.
Q3: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1).What work you will do?
2). What work table size you will need?
Q4: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc.
Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set
Q5: If I bought a machine, how could you make it safe while shipping.
A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case.
Q6: What's your quality control system?
A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test
video and photos for confirm.
Q7: What's your after-sales service?
A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years.
2) Engineers available service machinery overseas
3) 7X24hours online support and whole life maintenance.
Q8: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disc send together with the machine including machine user manual and software user manual .
2) Online (Skype, Whatsapp, Wechat, Phone)
3) Remote desktop software (Team viewer)
4) Demo Video
Q9:This is my first time buy machine from China, how i buy machine from you?
A:Choose suitable machine through talking with our seller manager → Pay to us→ manufacture and testing machine(about 3-5 workdays)
→shipping to you

If you have any other questions, please write email to us or call us, we will reply you ASAP.
