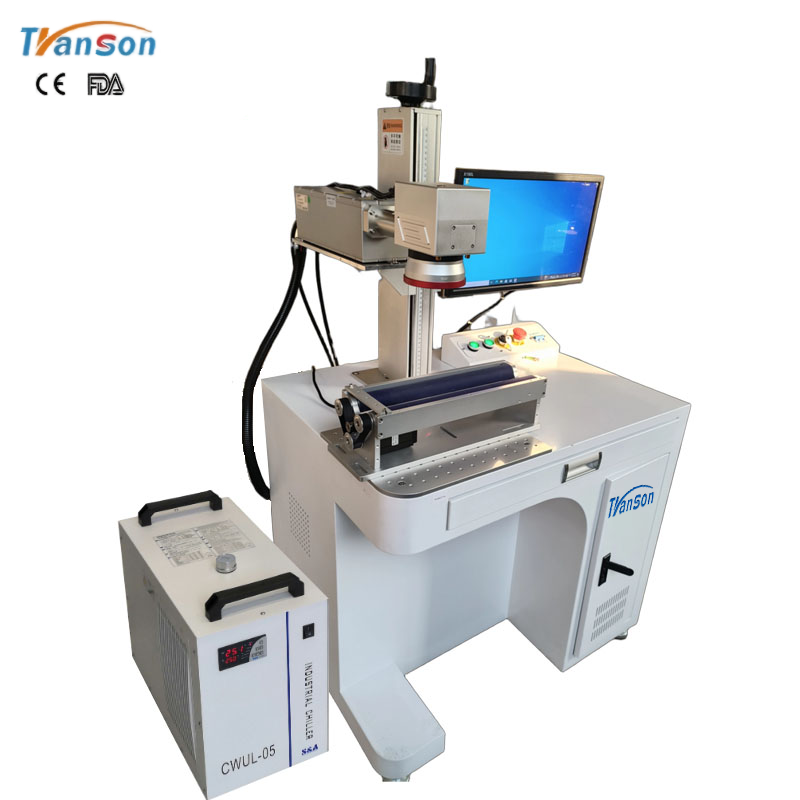

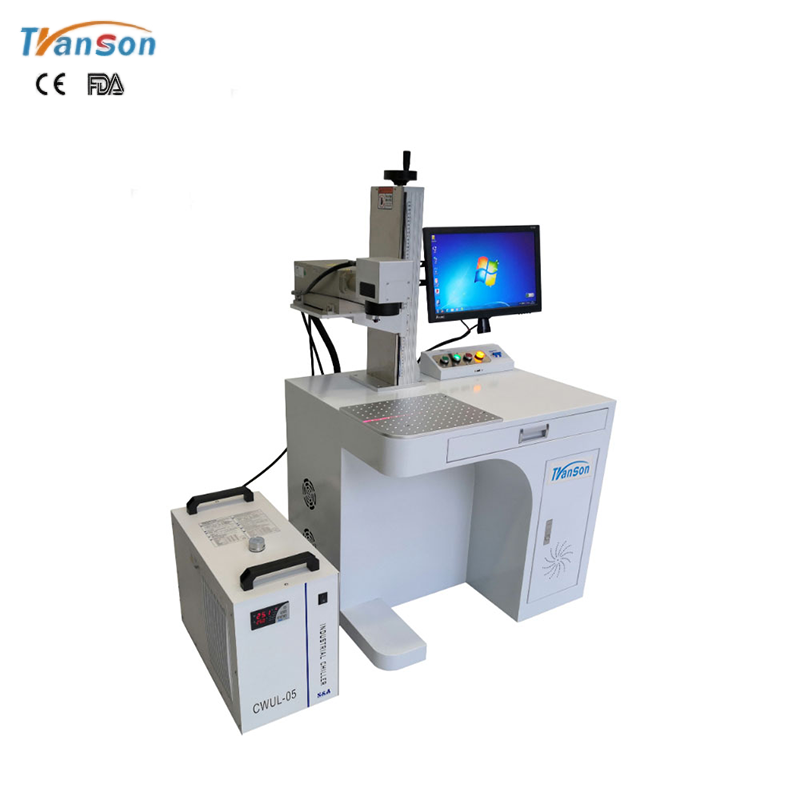

Desktop Uv Laser Engraving Machine 3w 50w 10w

Desktop UV Laser Engraving Machine 3W 50W 10W

Power: 3w/5w/10w
standard laser marking size:110*110mm

Cooling Mode: water cooling

这里可以自定义设置

UV LASER MARKING

MACHINE

· Laser (light source): 355 nm UV laser

· It requires water cooling, distilled water or pure water.

· The focused spot is extremely small, and the processing heat affected zone is small (cold light), making the material heat-receiving area smaller. Not susceptible to heat deformation, ultra-fine marking, special material marking.

· Low cost of use, better beam quality, high efficiency, low power consumption, more energy saving and environmental protection.

· Can be applied to high-end market, ultra-fine marking environment, cosmetics, pharmaceuticals, LCD liquid crystal, electronic components, communication equipment, food and medicine packaging, glass division, electronic components, metal jewelry marking.

Machine video

Model	TS
Laser source	JPT
Laser power	3W 5W 10W
Weave length	355nm
Marking area	110*110mm standard
Laser repetition frequency	20KHZ-150KHZ
Beam quality	M²≤1.2
Marking speed	7000-12000mm/s
Marking depth	0.01-1mm
Repetition Precision	0.001mm
Minimum Line Width	0.013mm
Minimum Character	0.2 mm
Cooling Style	Water cooling
Positioning Way	Red light
Control software	JCZ EZCAD marking software and UV laser marking machine software
Supported Format	PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC
Control board	JCZ
Operating Voltage	AC220V/50HZ or 110V/60HZ
Gross Power	≤500W
Supported Windows	Windows XP,7,8,10
Certificate	ISO, CE
Warranty	2 years

PRODUCT DETAILS

1.laser source lifespan:

100,000 hours

2. Worktable:

standard laser marking size: 110*110mm

3.Full-direction Wheel & position leg

It can help move and fix the laser machine easily

4, CWUL-05 Water chiller

CWUL-05 water chiller for cool UV laser source 3W 5W.

APPLICATION

UV laser marking machine Applicable Area and Material

1. It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.

2.Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device,aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.

3.Pharmaceutical, food, beverage and cosmetics industry.

4.Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving,clocks and watches and glasses.

5.It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc..

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
