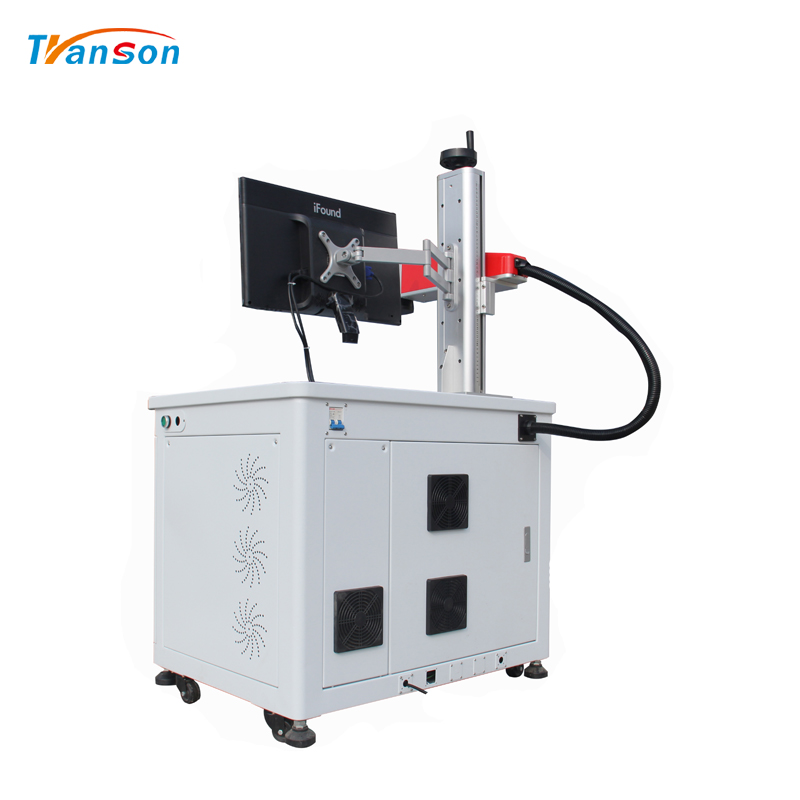

Desktop Modelfiber Laser Marking Machine

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: <1mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, DXP, JPG

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FEDS

Laser Source Brand:: Raycus

Control System Brand:: JCZ

Marking Head Brand:: SINO

Weight (KG):: 136 KG

Key Selling Points:: Easy to Operate

Warranty:: 2 years

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Hotels, Building Material Shops, Manufacturing Plant, Home Use, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Non Metal Material

After Warranty Service:: Video technical support, Online support

Local Service Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Product name:: Desktop Model Fiber Laser Marking TSF20W

Laser source:: RayCus

Laser Power:: 20W/30W/50W/100W

Working area:: 110*110 Standard

Lifespan of laser device:: 100, 000 Hours

Marking Depth:: 0.01mm 1mm

Marking material:: Non Metal

Color:: White and Black

Laser wavelength:: 1064 nm

Marking Speeed:: <7000mm/s

Supply Ability

Supply Ability:: 100 Set/Sets per Month

Product Description

Computer operated for Desktop Fiber Laser Marking Machine , it is suitable for automatically processing(like production line, automatically filing line).Using no harsh chemicals during the process. No need water chiller to cool, small size, small occupation, canbe easily installed in many places.

Model	TSF
Working area	Standard:110"110mm, Optional:505omm,7575mm,15015omm,175mm175mm,200200mm,300300mm
Laser power	20W/30W/50W/60W/70W/100W/120W optional
Beam quality	M2<1.5
Laser wavelength	1064±1nm
Marking depth	<1mm/min
Marking speed	<70000mm/s
Cooling system	Air Cooling
Power supply	220V/60HZ/8A(110V/60HZ/15A can choose)
Min. shaping character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported	DWG.DXF.PLT.CNC.GBR.DST.AL.BMP.EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG.XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Min. line width	0.05mm
Repeatability accurac	0.003mm
Power Machine	300w-800w(Depend on fiber laser power)
Operation temperature	0~40°C
Operation system	Microsoft Windows 7. 8. 10 system
Operating environment	Clean and free of dust
Machine / packing size	840mm640mm1410mm/940mm×860mm×1020mm
Net / Gross weight	115kg/136kg
Warranty	Two years

Product details

Galvanometer scanner Focusing lens Worktable

Scale column Control button Fiber source

EZCAD software Host computer cabinet Inner red hot pointer

Outer red hot pointer Philips screen Keyboard area

Application

Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances,
communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle,cooking utensils, stainless

Applicable Materials

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin,ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

Plastic

Aluminum

Stainless steel

Packing and Shipping

Certifications

Exhibition

Our factory

People will find that the product produces less waste because it can be recharged with a simple battery charger and reused hundreds of times. It can be designed with a pointer for perfectly aligning the material before starting work. It provides people with essential goods by being made into different items such as electronic products, automobiles, and other artifacts of a technology. It can be designed with a pointer for perfectly aligning the material before starting work.
