Cnc Raycus 20w Fiber Laser Marking Machine With Slide Worktable...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.002mm

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: RAYCUS

Control System Brand:: BJJCZ

Marking Head Brand:: SINO

Key Selling Points:: Long Service Life

Warranty:: 3 years, 3 years

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Manufacturing Plant, Food & Beverage Factory, Retail, Printing Shops, Advertising Company

Laser marking machine laser source:: Raycus brand 20W laser source

Laser wavelength:: 1064±1 nm

Power adjustment range:: 10~100%

Output fiber length:: 1~2m

Frequency of pulse:: 20~250KHz

Power supply:: 220V/60Hz /8A (110V/60Hz /15A can choose)

Working area:: 110mm*110 mm(Standard) can choose 150*150mm 200*200mm 300*300mm

Marking depth:: <1mm

Marking speed:: <5000mm/s

Supply Ability

Supply Ability:: 200 Set/Sets per Month cnc fiber laser marking machine

CNC Raycus 20W Fiber Laser Marking Machine With Slide Worktable

As fiber laser marking machine lens support the max 300x300mm working area, how to do if want mark bigger area? Yes, make the worktable slide to enlarge the marking area.This model working area is 18inch x 18inch, other size working area can customize.

Features:

1, FDA Compliant, CE Certification, ISO9001 Quality Certification.

2, Original Win 10 computer, LCD monitor, keyboard, mouse all include

3, USB Interface, U-Flash Disk Supported, Machine will read files from memory stick.

3, Fiber laser marking machine with over 100,000 hours working life. Almost no maintenance during this period.

4, Original JCZ control card, EZCAD software, easy operate, support almost any windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.

5. High precision: 0.003mm re-position accuracy. Minimum line width 0.01mm.

6, Super big 18x18 inch working area, can slide in both X Y axis.

7, Ail cool, small size, small occupation, can be easily installed in many places

8, Permanent marking: Laser marking is a permanent marking. It won’t fade, run or become less discernible as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.

9, Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.

Parameters:

Transon Desktop Fiber Laser Marking machine
Model	TSF-20
Laser type	Fiber Laser
Laser power	20W/30W/50W/100W/120W optional
Beam quality	M2< 1.5
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~250KHz
Power supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling system	Air Cooling
Graphic format supported	Image: BMP JPG JPEG GIF TGA PNG TIF TIFF
Graphic format supported	Vector: AI PLT JPC DXF DST SVG NC G BOT GBR
Working area	110110mm(Standard), 5050mm,7575mm,150150mm,175mm175mm,200200mm,300*300mm(Optional)
Marking depth	<1mm
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-800W(Depend on fiber laser power)
Operation temperature	0~40°C
Operation system	Microsoft Windows 7, 8, 10 system
Operating environment	Clean and free of dust
Warranty	Two years
Machine net/gross weight	130kgs/ 170kgs
Plywood package size	9683118cm

Machine Pictures:

Other slide worktable for your reference, if you want customize, please contact us soon.

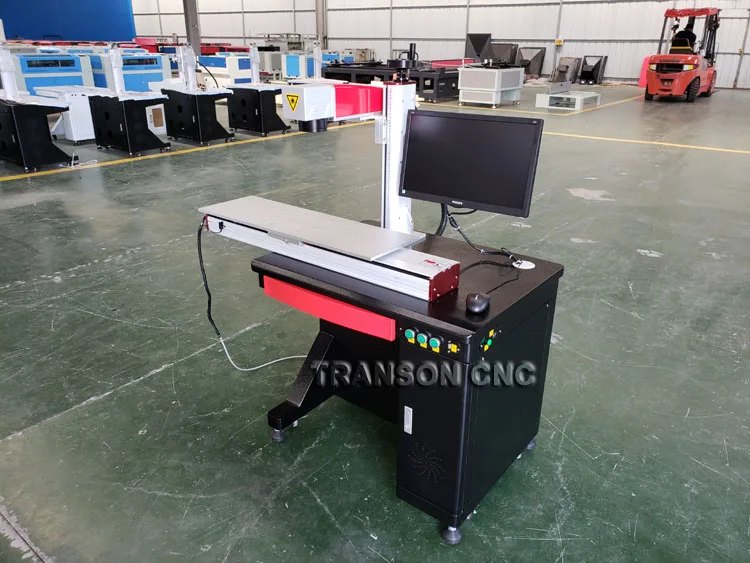

1, Only X axis slide, X axis working area 800mm.

2,Both XY slide, working area 600x450mm.

Application

1.Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
2.Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

Certification

Packaging & Shipping

CNC Raycus 20W Fiber Laser Marking Machine With Slide Worktable 18x18 inch

Online Customization

CNC Raycus 20W Fiber Laser Marking Machine With Slide Worktable
