CNC Low Cost High Precision Marking Mini Portable Plastic Pcb Fiber Laser Marking Machine

这里可以自定义设置

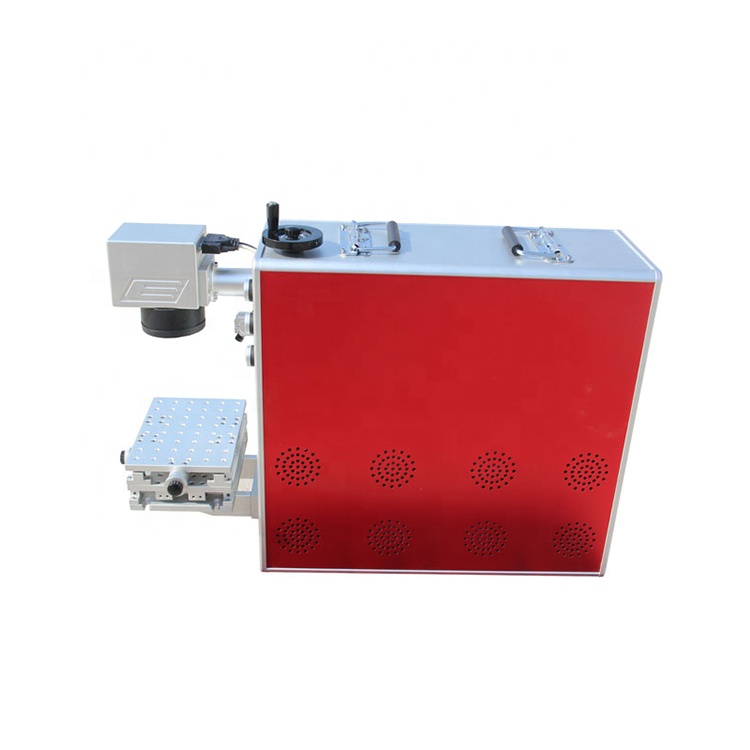

CNC Low Cost High Precision Marking Mini Portable Plastic Pcb Fiber Laser Marking Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Marking
Working Accuracy:
0.001mm
Graphic Format Supported:
AI, BMP, Dst, DXF, PLT
Laser Type:
Fiber Laser
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD Software
Place of Origin:
Shandong, China
Brand Name:
TRANSON
Certification:
ce, ISO, FDA
Laser Source Brand:
other
Control System Brand:
other
Marking Head Brand:
other
Key Selling Points:
Automatic
Warranty:
1 Year, 2 Years
After-sales Service Provided:
Free spare parts, Engineers available to service machinery overseas
Applicable Industries:
Printing Shops
Applicable Material:
Metal Plastic
Marking Speed:
0-7000mm/s
Laser Power:
20watt
Laser wavelength:
1064nm 10nm
Marking Depth:
0-1mm
Laser Head:
Galvonometer head
Packing:
Standard export cases
Marking Area:
50*50mm
Supply Ability
Supply Ability:
300 Set/Sets per Month

Product Description

Fiber laser marking machine is the use of laser beam in a variety of different material surface marked with a permanent mark. Effect of marking is exposed deep substance through the surface material evaporation, showing the required the etching pattern, text, and other types of bar code graphics.

Benefits of Fiber Laser Marking Machine

1).Environmentally friendly: Using no harsh chemicals during the process. No need water chiller to cool, small size small occupation, can be easily installed in many places.

2).Cost-effective: No maintenance during the 100,000 hours working life. One machine can be used in many different materials & industry. Minimal part replacement.

3).High efficiency: Computer operated, suitable for automatically processing(like production line, automatically filling line).

ModelTSF20 /TSF30 Portable model
Laser  typeFiber Laser
Laser  power20W/30W
Beam  qualityM2< 1.5
Laser  wavelength  1064±1 nm
Power  adjustment  range10~100%
Output  fiber  length1~2m
Frequency  of  pulse20~250KHz
Power  supply 220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling  systemAir Cooling
Graphic  format  supportedDWG.DXF.PLT.CNC.GBR.DST.AI.BMP
XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Working  area 110mm*110 mm(Standard) can choose 50*50mm
Marking  depth<1mm
Marking  speed<5000mm/s
Min. line  width0.05mm
Repeatability  accuracy0.003mm
Power  Machine300-600W
Operation  temperature0~40°C
Operation  systemMicrosoft Windows system
Operating  environmentClean and free of dust, focal
Product Display



Application

1.Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

2.Applicable Materials

Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.



Qelated Product
Packaging & Shipping



Company Information

Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC router and Laser engraver.

Our purpose is supply the machines with best ratio in quality to price.

Our machine has exported to worldwide, such as: Uk, Poland, Finland, Croatia, Italy, Holland, United States,

Mexico, Brazil, Colombia, Canada, Argentina, Russia, India, Thailand, Singapore, Malaysia, U.A.E an so on.

We welcome more and more clients come to visit our factory and use our machine.



In order to establish a long term business, we will give our distributor maximum profits to support your efforts to resell our products in your markets.Welcome friends from worldwide to visit our fatory and give us your

valuable suggestions. We wish to establish long business relationship and friendship with you.



Our Services



Contact

Attn: Vivien   Ma

Mobile/Whatsapp: +86 15253161769

Email:  vivien(at)transoncnc.com

Skype: Vivien Transon

wechat: mayayun820

Trade Manager: cn1000321415

Telephone:+86 531 8292 0981

Tax: +86 531 8292 0980

Website: www.transoncnc.com

If you need more information or have any special requirement, pls feel free to tell me. We will be at service at any time.We would like to become your honest and long-term supplier in the near future.

One of the biggest advantages in the use of this product is the considerable increase in the skill and productivity of laborers. It is manufactured to the standards such as EN 60825. This kind of product can easily accomplish the arduous work that people can't do. This will undoubtedly increase productivity and ease the pressure on workers. It is manufactured to the standards such as EN 60825.
