Cnc 3d Graver Router 0609

Overview

Quick Details

Condition:: New

CNC or Not:: CNC

Place of Origin:: Shandong, China

Brand Name:: Transon

Voltage:: 220v/50hz

Certification:: CE

Warranty:: 1 Year

After-sales Service Provided:: Field maintenance and repair service, Engineers available to service machinery overseas

Cooling way:: Water Cooling

X.Y working area:: 600*900mm

Z working area:: 120mm

Control System:: March3

Power:: 1.5kw/2.2kw/3kw

Supply Ability

Supply Ability:: 500 Set/Sets per Month

CNC 3D Graver Router 0609

Machine picture:

Introduction:

TSA6090 CNC Router takes ballscrew structure, which guarantees the precision.

It can do 3d engraving,suitable for various metals and nonmetals.

It's widely used in billboard industry, cutting plate production, LED / neon light trough,literally shaped hole cut, light box molding, and so on.

Characteristics:

1.Casting of a host, the base used box structure. Precision Linear rectangular guides, Preload, steel and good, high accuracy.

2.Ground-level precision ball screw is tightening and high precision.

3.Interface uses international standards G code instructions, compatible software at home and abroad, for simple operation.

4.DSP offline control system,you can control the working process using the handle instead of the computer,more convenient for your work.

Applying materials:

Except for metal engraving,it can also be used for other materials like PVC, Rubber, ABS plate, Acrylic,

double`color sheet, wood, MDF, Organic glass, copper, ACP, plastic and so on.

Parameters:

Models	TSA6090 CNC Router
Machine body	Iron casting body,Aluminum casting gantry
X,Y Worksize	600x 900mm
Z-axis worksize	120mm
Control system	DSP control system ( can choose Mach3-USB)
Spindle power	1.5KW water cooling (0-24000rpm)
Cooling way	Water cooling
Motor	Stepper
Rail guide	Round
Working Speed	0-4000mm/min
Command code	HPGL, G code
Working precision	0.05mm
Power	AC220V±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V9 etc
Tool bits shank	3.175-6mm

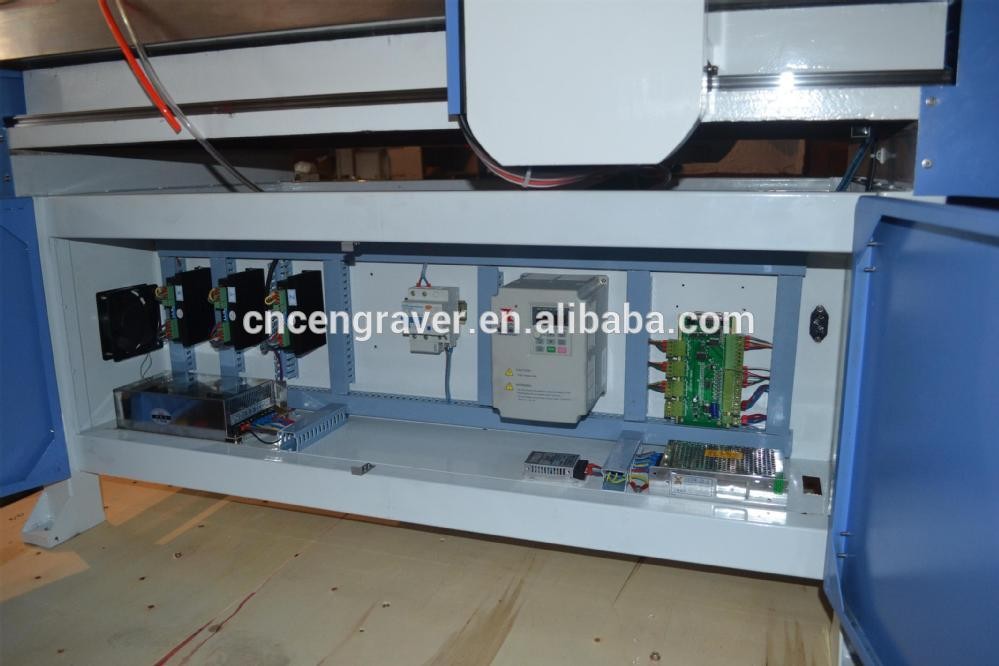

Machine Detailed pictures:

Machine Optional parts:

a. Models and worktable size:

TSA6090 600mm*900mm TSA6015 600mm*1500mm

TSA9015 900mm*1500mm TSA1212 1200mm*1200mm

TSA1218 1200mm*1800mm TSA1224 1200mm*2400mm

TSA1530 1500mm*3000mm TSA2030 2000mm*3000mm

Machine worktable size can custom.

b. Spindle Power: 800w/1.5klw/2.2kw

Cooling way: water cooling, air cooling

c. Control system: Mach3, DSP, 4 Axis, NC Studio, Syntec System or Siemens From Taiwan

d. Motor and driver:

Stepper Motor and driver; Yaskawa servo motor and driver; Panasonic servo motor and driver.

e. Rotary Device: diameter can custom.

f. Water tank: for metal and stone engraving

g. Square rail guide: from Taiwan

Samples:

More models:

Jinan Transon CNC Equipment Co.,Ltd have been engaged in manufacture cnc machine for many years, offering proffessional engraving and cutting solution to global clients. More machine needed, please check www.transoncnc.com

If you're interested in our machine, pls directly leave massage and kindly tell me:

1. Machine models or worktable size you will need?

2. Spindle power, or which kind of work you will do, cutting or engraving?

3. If cutting, how about the thickness ? which kind of materials?

Email: wendy(at)transoncnc.com

Skype: xu.abby2

Whatsapp:+86 13386363796

Operators can deepen their knowledge of machine operation by using this product, which helps them accumulate technical know-how and become an important role in machine operation. It is suited for the use of rotary devices, allowing one to engrave cylindrical objects. The product eventually contributes to increasing profits and saving costs for manufacturers. This is the reason why it is widely used in many applications. It is suited for the use of rotary devices, allowing one to engrave cylindrical objects.
