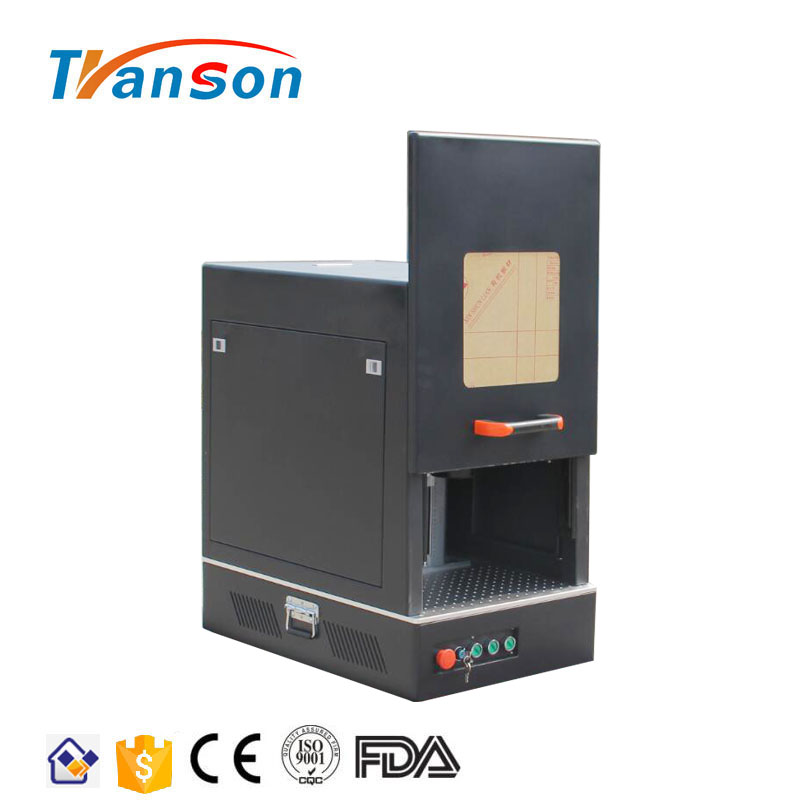

TSF-Mini Closed model
Electric up and down column
50*50mm / 110*110mm/150*150mm field lens optical
High speed marking
Cover can be removed
1. Original JCZ control card and Ezcad software.
2. Inner and outside red dot pinter.
3. Sino brand scan head.
4. Sino or nanjing wavelenth brand field lens
5. Raycus 30w laser source
We have standard models and Mopa models for choice:
Mopa Features: Pulse width adjustable
1. Colorful marking on stainless steel,
2. Marking white on black plastic
3. Marking black on white plastic
4.Marking black on alumina,
TSF MIni C Fiber Laser Marking Machine Parameters:
| Model | TSF30 Mini Closed Model |
| Laser type | Fiber Laser |
| Laser power | 30W Raycus (IPG, JPT, Max optional) |
| Beam quality | M2< 1.5 |
| Laser wavelength | 1064±1 nm |
| Power adjustment range | 10~100% |
| Output fiber length | 1~2m |
| Frequency of pulse | 20~80KHz |
| Power supply | 220V/60Hz /8A (110V/60Hz /15A can choose) |
| Cooling system | Air Cooling |
| Graphic format supported | DWG.DXF.PLT.CNC.GBR.DST.AI.BMP |
| EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG | |
| XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA | |
| Working area | 110mm*110 mm(Standard) can choose 50*50 150*150 175*175 200*200 300*300(mm) |
| Marking depth | <1mm |
| Marking speed | <5000mm/s |
| Min. line width | 0.05mm |
| Repeatability accuracy | 0.003mm |
| Power Machine | 300-600W |
| Operation temperature | 0~40°C |
| Operation system | Microsoft Windows system |
| Operating environment | Clean and free of dust, focal |

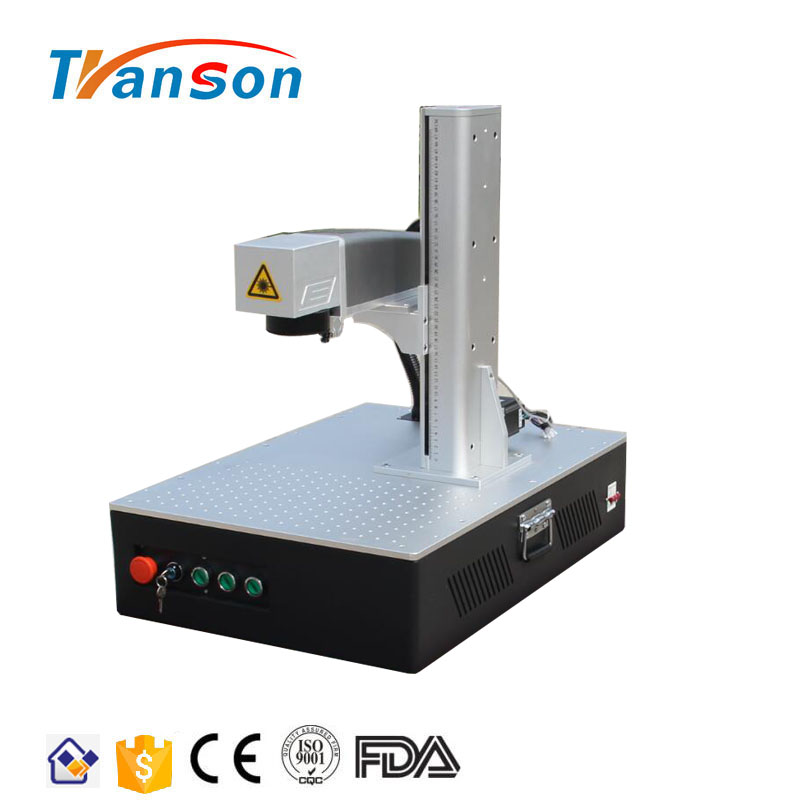

Products Inner detail photos:
Other Similar models on Sale:
Our laser machines package include 3 layers:
1, Outside package: polywood case with metal belt
2, Middle package: We use foam to cover the machine.
3, Inner package: We use waterproof plastick bag to cover all the machine.
Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer with ability of research and development, design and production. Our products include fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter.
Transon CNC has won an excellent reputation in the golbal market. We are cooperating with many well-known companies all over 100 counties, including Turkey, United Kingdom, United States, Korea, russia, Peru, Chile, etc. We alos maintain a friendly long-term cooperation with domestic laser research institues all over the years.
Q: Are you a factory or trading company?
A: We are a manufacturer.
Q: Where are you located? How can we visit you?
A: We locates in Jinan of Shandong, in the north of China.
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?
Q: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, ESCOW, West union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set
Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professional package suitable for oversea transpotation. Machine will be fixed well in the case.
Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
Q: What's your after-sales service?
A: 1) Warranty 1 year for whole machine.
2) Engineers available service machinery overseas
3) Full operator training
Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine. 2) Online (skype & phone)
3) Remote desktop software (Team viewer)
4) Demo Video
Q:This is my first time buy machine from China, how i buy machine from you?
A:Choose suitable machine through talking with our seller manager → Pay to us→ manufacture and testing machine(about 3-5 workdays) →shipping to you
