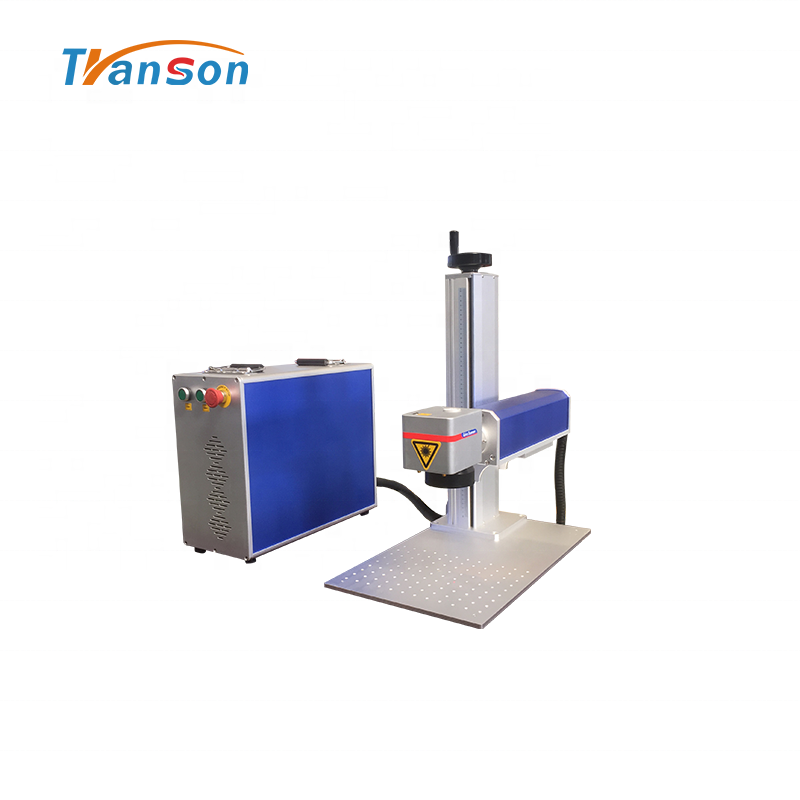

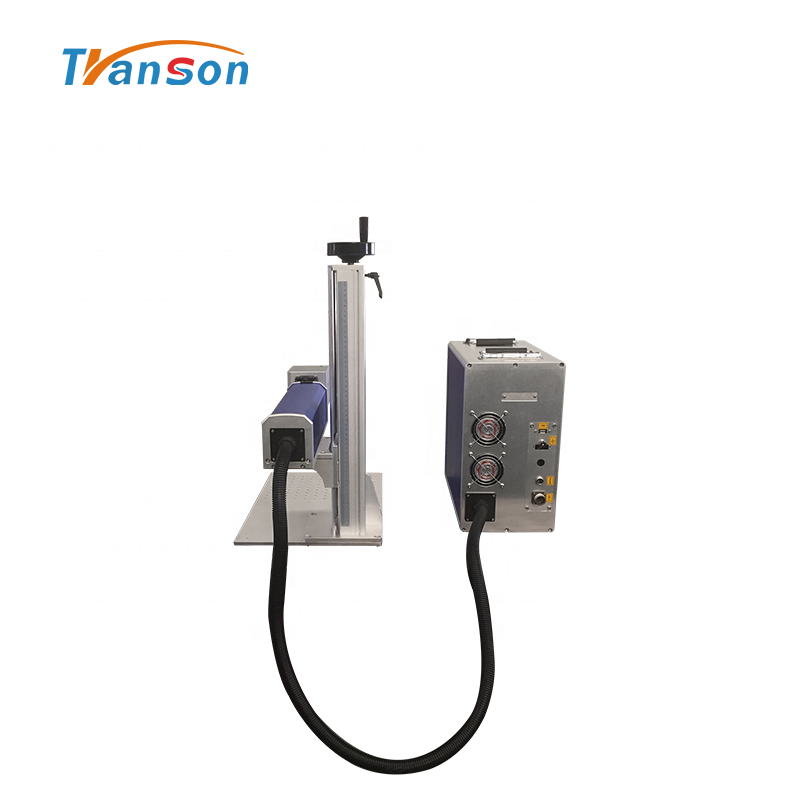

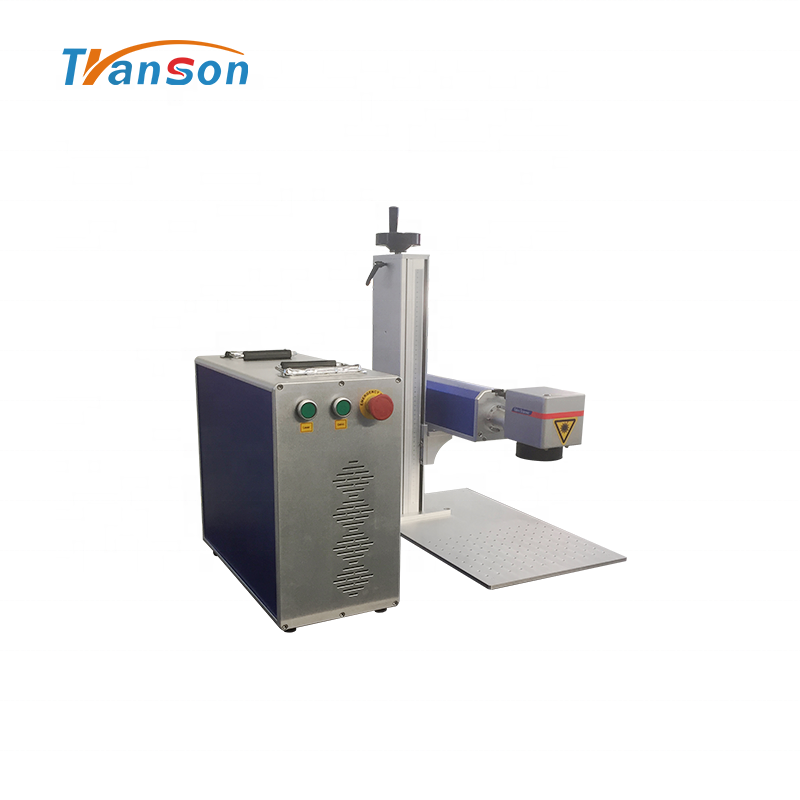

China Good Quality Split Mini Fiber 20w 30w 50w Lazer Marking...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.001mm

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: Super

Control System Brand:: BJJCZ

Marking Head Brand:: Sino

Weight (KG):: 60 KG

Key Selling Points:: Easy to Operate

Warranty:: 1 Year

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Garment Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Advertising Company, fiber laser marking machine

After Warranty Service:: Video technical support, Online support

Local Service Location:: Russia

Showroom Location:: United Kingdom, Philippines, Peru, Russia, Romania

Marking Area:: 110mm*110mm

Beam quality:: M2< 1.5

Laser wavelength:: 1064±1 nm

Power adjustment range:: 10~100%

Output fiber length:: 1~2m

Frequency of pulse:: 20~250KHz

Power supply:: 220V/60Hz /8A (110V/60Hz /15A can choose)

Marking depth:: <1mm

Marking speed:: <5000mm/s

Min. line width:: 0.05mm

Product name:: split mini fiber 20W 30W 50W lazer marking machine laser printer

Packaging & Delivery

Selling Units:: Single item

Single package size:: 88X73X41 cm

Single gross weight:: 60.000 kg

Package Type:: International Export Standard Plywood box for China good quality split mini fiber 20W 30W 50W lazer marking machine laser printer

Lead Time :

Quantity(Sets)	1 - 1	>1
Est. Time(days)	6	To be negotiated

China good quality split mini fiber 20W 30W 50W lazer marking machine laser printer

China good quality split mini fiber 20W 30W 50W lazer marking machine laser printer
Model	TSF-20	TSF-30	TSF-50
Laser Power	20w	30w	50w
Laser Wavelength	1064nm
Q-frequency	20-80KHZ	30-60KHZ	50-100KHZ
Divergence	0.3mard
Marking Range	110*110mm
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics
Marking Format	Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batchnumber,Serialnumber,Frequency,etc.
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	<0.5kw
Laser Module Life	>100000 hours
Machine / Package size	550mm320mm680mm/ 880mm730mm410mm
Net / Gross Weight	38kg/ 60kg

FAQ

Q: Are you a factory or trading company?

A: We are a manufacturer.

Q: Where are you located? How can we visit you?

A: We locates in Jinan of Shandong, in the north of China.

Q: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:

1) .What work table size you will need?

2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?

A: We accept T/T(bank transfer), L/C, Paypal, ESCOW, West union etc. Usually we need 30% as deposit, balance paid before shipment.

Delivery Time: 7-10 days after payment

MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.

A: We have a professional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?

A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: What's your after-sales service?

A: 1) Warranty 1 year for whole machine.

2) Engineers available service machinery overseas

3) Full operator training

Q: If I don't know how to use the machine, can you teach me?

A: 1) There is a DVD disc including machine user manual and software user manual c/w machine. 2) Online (skype & phone)

3) Remote desktop software (Team viewer)

4) Demo Video

Q:This is my first time buy machine from China, how i buy machine from you?

A:Choose suitable machine through talking with our seller manager → Pay to us→ manufacture and testing machine(about 3-5 workdays) →shipping to you

If you need more information or have any special requirement, pls feel free to tell me. We will be at service at any time.We would like to become your honest and long-term supplier in the near future.

The product is vital for many industries. It plays an important role in increasing productivity and cutting labor costs for manufacturers. With automatic height control and a state-of-the-art computer system, it is cleverly engineered for maximum flexibility and convenience. Since this product can work continuously over any period of time without a break, it greatly increases productivity and efficiency during operation. With automatic height control and a state-of-the-art computer system, it is cleverly engineered for maximum flexibility and convenience.
