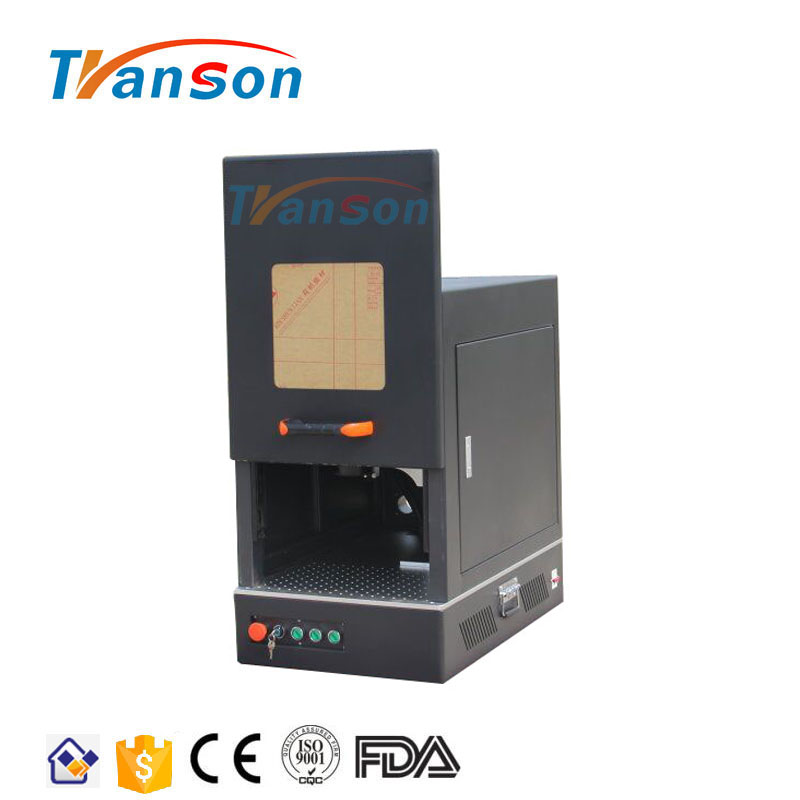

Best Price Mini Cabinet Fiber Laser Engraving Marking Machine...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.01mm

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, DXP, PLT, XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD Software

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: /

Key Selling Points:: Engraving Marking Machine

Warranty:: 1 Year, 2 Years

After-sales Service Provided:: Online support

Applicable Industries:: Hotels, Building Material Shops, Construction works , Energy & Mining, Advertising Company

Laser Marking Machine Model:: Mini Close Model

Color Available:: Black

Packing Outside:: Plywood Export Package

Laser Power:: 20W or 30W

Laser source:: Raycus Laser Source

Package in Middle:: Foam

Package Inner:: Plastic Wrap

Packed Size:: 760*680*770mm

Volume:: 0.398cbm

Supply Ability

Supply Ability:: 285 Set/Sets per Month Engraving Marking Machine

Best Price Mini Cabinet Fiber Laser Engraving Marking Machine

Features:

TSF-Mini Closed model
Electric up and down column
50*50mm / 110*110mm/150*150mm field lens optical
High speed marking
Cover can be removed

Including:

1. Original JCZ control card and Ezcad software.
2. Inner and outside red dot pinter.
3. Sino brand scan head.
4. Sino or nanjing wavelenth brand field lens.

We have standard models and Mopa models for choice:
Mopa Features:
Pulse width adjustable
1. Colorful marking on stainless steel,
2. Marking white on black plastic
3. Marking black on white plastic
4.Marking black on alumina,

TSF MIni C Fiber Laser Marking Machine Parameters:

Model	TSF20 /TSF30 Mini Closed Model
Laser type	Fiber Laser
Laser power	20W/30W (IPG, Raycus, JPT, Max)
Beam quality	M2< 1.5
Laser wavelength	1064±1 nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~80KHz
Power supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling system	Air Cooling
Graphic format supported	DWG.DXF.PLT.CNC.GBR.DST.AI.BMP
	XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Working area	110mm110 mm(Standard) can choose 5050 150150 175175 200200 300300(mm)
Marking depth	<1mm
Marking speed	<5000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300-600W
Operation temperature	0~40°C
Operation system	Microsoft Windows system
Operating environment	Clean and free of dust, focal

Products detail photos:

Other Similar models on Sale:

Packaging & Shipping

Our laser machines package include 3 layers:

1, Outside package: polywood case with metal belt

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof plastick bag to cover all the machine.

Except laser marking machine, we have more other models for your choice:

Our Services

1, Our quality contral department will fully check and test EVERY ONE of our laser machine before shipment. We can 100% make sure all our customers will get good products from us, and we have TWO year warranty for our laser machine.

2, Together with the laser machines we send together "Instruction Book", "Operation Manual" and "Training Video" (in English version) our customer can easily understand and operate our machines when they arrive.

3, We will offer plenty of online supports, by email, video, telephone and fax.

4, Our engineer can make a door-to-door instruction training service.

Its main technical performance has reached the international advanced level. It offers a new dimension in productivity thanks to its easy-to-use operator interface. This product is customizable to suit a diverse range of requirements. It offers a new dimension in productivity thanks to its easy-to-use operator interface.
