Best Price 1390 80w Co2 Laser Engraving Cutting Machine...

Overview

Quick Details

Application:: LASER CUTTING

Applicable Material:: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Paper, Polyester Film,, Crytal

Condition:: New

Laser Type:: CO2

Cutting Area:: 1300*900mm

Cutting Speed:: 0-40000mm/min

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT

Cutting Thickness:: Materials

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: DSP

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Warranty:: 1 Year, 1 Year

After-sales Service Provided:: Online support, Video technical support

Laser Power:: Reci W1 75-90W Glass Tube

Laser Cutting Machine Usage:: Engrave and Cut Nonmetal Material

Highest Scanning Precision:: 2500DPI

Min. Shaping Character:: English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Software Supported:: CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut

Cooling System:: CW5200 Water Chiller

Driving System:: Stepper Motor

Net Weight Gross Weight:: 365KGS/445KGS

Package:: 1.86*1.41*1.31m

Supply Ability

Supply Ability:: 300 Set/Sets per Month

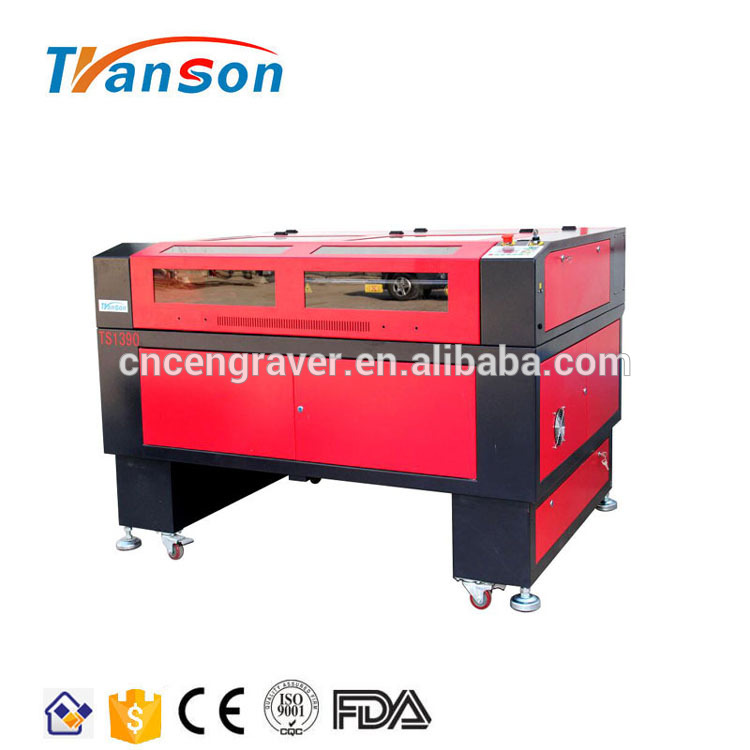

Best Price 1390 80W CO2 Laser Engraving Cutting Machine for Wood MDF Bamboo Acrylic

Co2 laser engrave and cutting machine can be applied to different materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries.

The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting. It’s with high compatibility, powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, AI and many other graphs, support win 7, win 8 and win 10 computer operatting system.

Applicable Industries:

Model industry (construction models, aviation and navigation models and wooden toys), advertisement,

decoration, arts and crafts, electronic and electric appliances, etc.

Working materials:

Nonmetal materials such as acyl, wood planks (light planks, paulownia wood), bamboo ware. double

color sheets, paper,leather, shells, coconut shells.ox horns, resin, animal grease, ABS boards, lampshade, etc.

Parameter:

Model		TS1390
Working area		1300mm*900mm
Laser power		Reci W1 75-90W Glass tube
Laser type		CO2 sealed laser tube, water-cooled
Engraving speed		0-70000mm/min
Cutting speed		0-40000mm/min
Highest scanning precision		2500DPI
Power supply		220v/50Hz , 110v/60Hz
Min. shaping character		English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported		BMP, PLT, DST, DXF, AI
Software supported		CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut
Control system		Ruida RDC6442S controller
Driving system		Stepper motor(servo option)
Color separation		Yes
N.W/G.W	80w	355kg/425kg
Optional parts	1.Motorised up and down worktable 2.Rotary attachment with roller/clip 3 Water chillers 4 Red dot pointer 5.Auto focus
Consumable parts (Recommended)	1.Extra laser tube 2.Extra 1 lens and 3 mirrors

TS1390 model we have Black red color and below blue and white color on sale:

Packaging & Shipping

Our laser machines package include 3 layers:

1, Outside package: polywood case with metal belt

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof plastick bag to cover all the machine.

If you are interested in it and would like to know more, please don't hesitate to contact me.Thank you!

The product is enormously appreciated by our customers and is believed to be widely used in the future. It uses components from international manufacturers, such as Panasonic Japan (servo motors and drives). The product is highly recognized by customers in the market. It uses components from international manufacturers, such as Panasonic Japan (servo motors and drives).
