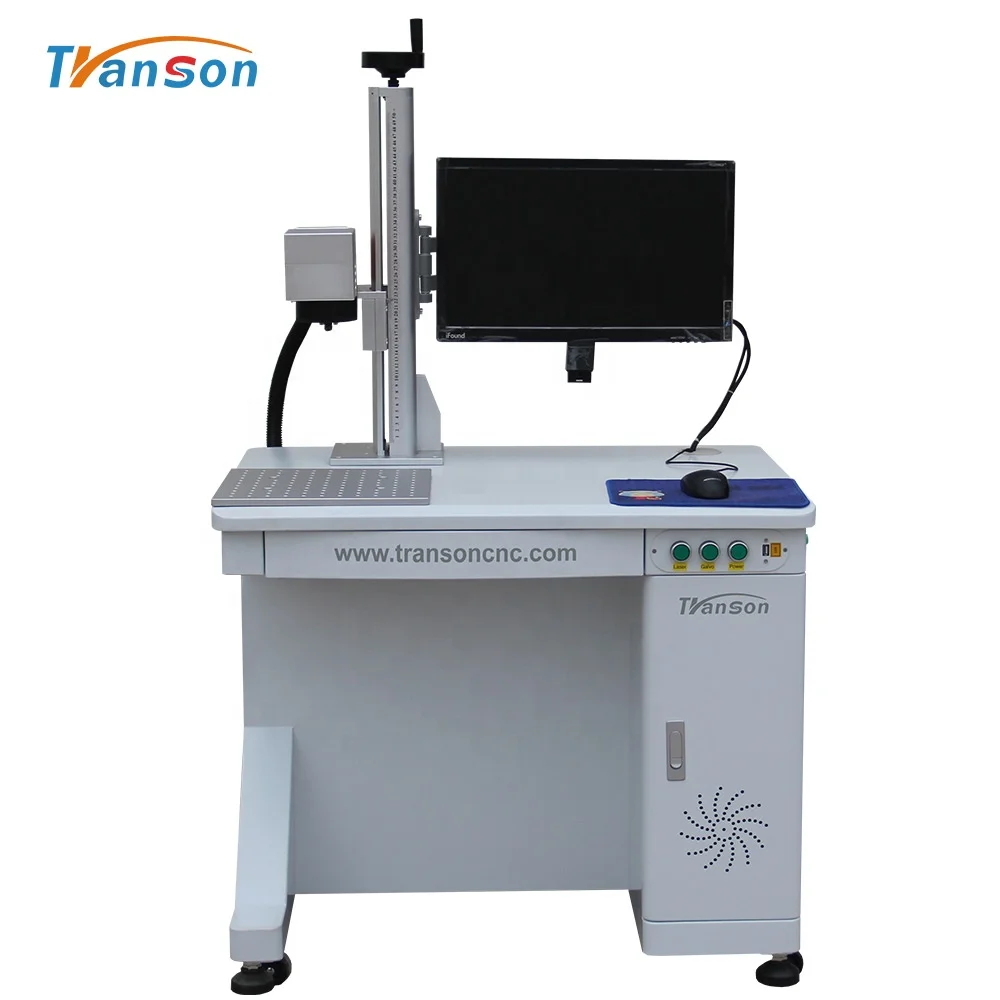

Afffordable 20w Desktop Fiber Laser Marking Machine For Metal...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.001mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, GIF

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: RAYCUS

Control System Brand:: BJJCZ

Marking Head Brand:: Sino

Weight (KG):: 136 KG

Key Selling Points:: Multifunctional

Warranty:: 3 years

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Advertising Company

After Warranty Service:: Video technical support, Online support

Local Service Location:: United Kingdom, Philippines, Peru, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Marking Area:: 110mm*110mm

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Hot Product 2019

Warranty of core components:: 3 years

Core Components:: PLC

Marking speed:: <7000mm/s

Min line width:: 0.05mm

Marking depth:: <1mm

Power adjustment range:: 10-100%

Laser wavelength:: 1064nm

Cooling system:: Air Cooling

Frequency of pulse:: 20-250KHz

Marking area:: 110*110 /150*150/175*175/ 200*200

Repeatability accuracy:: 0.003mm

Net weight/Gross weight:: 115kg/136kg

Supply Ability

Supply Ability:: 200 Set/Sets per Month

Products Description

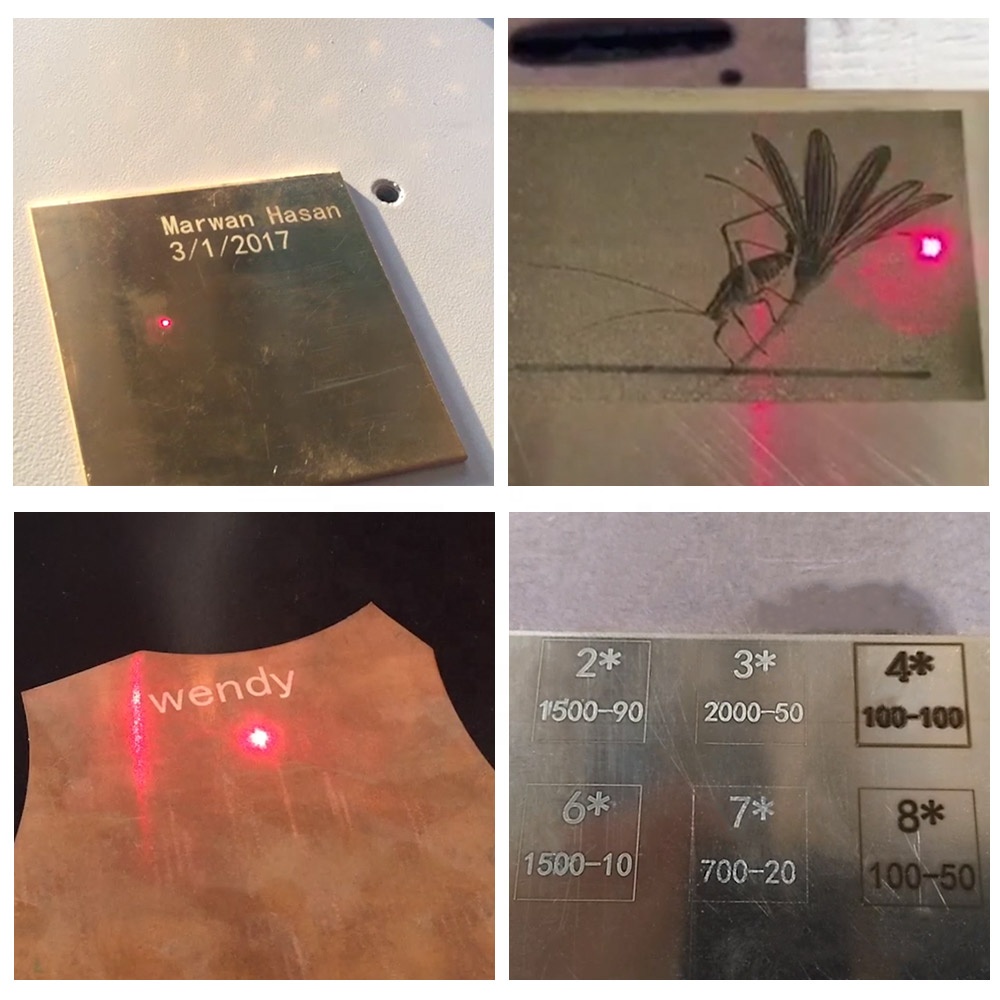

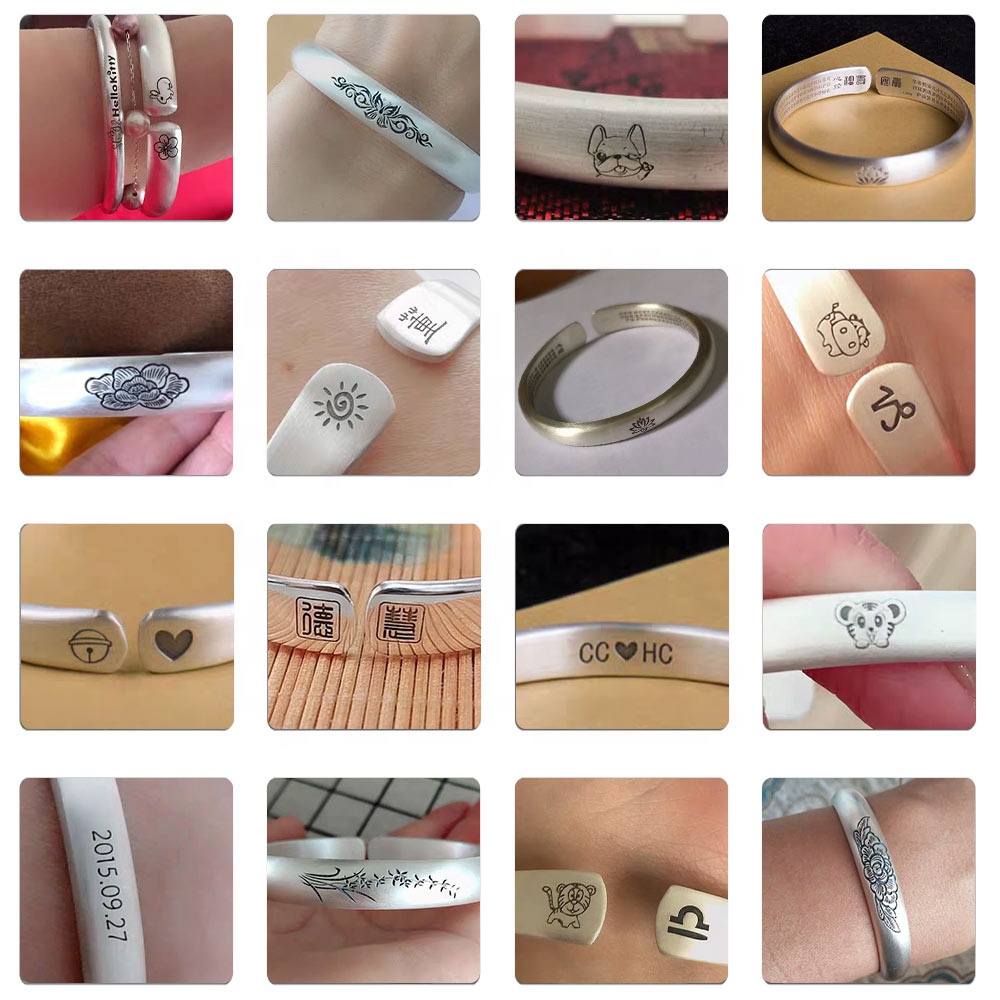

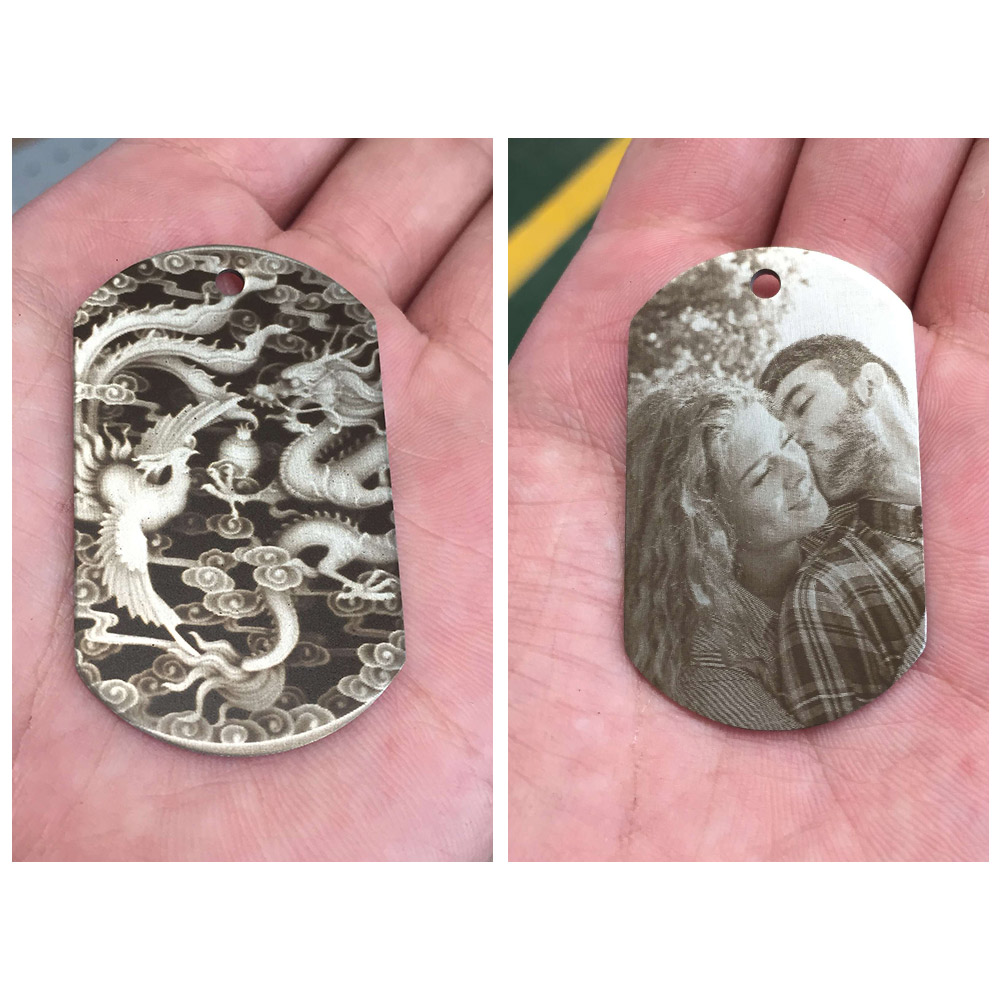

Fiber laser marking machine can mark text, picture, serial numbers, bar codes, QR code, for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry. Many users buy it as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc. 50W or above power fiber laser marking machine can have some cutting ability by mark many times, if want do some cut work of thin metal sheet like silver, aluminum, brass, 1mm gold.

Material Transon fiber laser marker can mark:

1.Metal: Aluminum, silver, brass, copper, stainless steel, gold, iron, steel,Titanium,coating material, anodized or treated metal,etc.
2.Nonmetal: Hard plastic, rubber, marble, granite, ceramic, ABS, leather, electroplating materials, coating materials, epoxy,etc.

1). Long lifetime, over 100,000 hours.

2). Compact laser source with air cooling.

3).2 to 5 times more productive a traditional laser marker or laser engraver.

4). Super quality galvanometer scanning system.

5). High accuracy and repeatability for corect marks each time with galvanometer scanners and electronic controls. 6). More stable performance .

7). Professional control board
and marking software. The software controlling system has the interface of windows and comprises files output by software such as
Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF ,PCX,BMP etc.

8). Output power is stable,
optical mode is good, beam quality is excellent.

9). Marking speed is fast, efficient, and high accuracy.

10). Appearance isprofessional, operation is easy.

Parameters:

Model	Fiber Laser Marking Machine
Laser Power	20W/30W/50W/100W
Laser Wavelength	1064nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking Range	110*110mm
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics
Marking Format	Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batchnumber,Serialnumber,Frequency,etc.
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	<0.5kw
Laser Module Life	>100000 hours

Details Images

Original BJJCZ Control Card
This advanced original BJJCZ control system, support add rotary device to laser marking machine.

SINO High Speed Galvanometer
High speed SINO scan head, scan head with on off button for out red dot pointer. Scan head inner with one inner red dot pointer for user easy preview marking content on worktable.

Wavelength Brand Field Lens
Machine standard with 110x110mm marking area Wavelength brand field lens. But users can buy extra field lens for bigger area mark.
Like 150x150mm, 175x175mm, 200x200mm, 300x300mm, 400x400mm. We will calibrate and recored the paramters for each field lens for
our users.

Raycus Fiber Laser Source
Hot sale Raycus brand fiber laser source, with 100,000 hours life span and 3 years warranty. Each fiber laser source standard with
test report. Optional: MAX, JPT, IPG brand, JPT MOPA colorful mark fiber laser source.
PS: The price standard is for 50W raycus fiber laser marking machine with computer.

EZCAD Software
Machine with EZCAD software, it compatible with other software like Photoshop, AUTOCAD, Coreldraw,
users can use these softwares to make design then import the file to EZCAD to mark. The files EZCAD support: AI,
PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF.

Optional Parts

Optional Parts For Choice

Dia.65mm rotary device, for fix ring, bracelet, cylinder object to mark while rotate.

Dia. 80mm rotary device, for fix cylinder object to mark while rotate. Not suit for ring.

2D worktable, for slightly moving the marking object in X Y axis. It will be precise than hand move.

Fix plate, when do long time marking or cutting work, the material shape may change because hot. This fix plate can keep material surface flat.

3D worktable, for slightly moving the marking object in X Y Z axis. It will be precise than hand move.

Laser goggles for prevent fiber laser radiation to operator's eyes during laser work. protect wavelength range 800-2000nm.

Rotary worktable, it suit for mass mark of small items, the worktable will rotate to mark the next items after finish mark. Suit for mark pens, tools, etc. Worktable size can customize.

Slide Worktable in X axis.

For enlarge the marking area, then can mark bigger area than the field lens can reach.

Slide worktable in both X Y axis also available.

Conveyor belt for pens mass mark.

Button and motor control up down of scan head, no need use hand to move up down the scan head.

Software control up down of scan head, no need use ruler again. Just input the height of marking object to Z, then "apply".

800mm high column, suit for mark on thick object, especially when install 300 x 300mm lens.

Application

This Fiber Laser Marking Machine Can Mark All Metals And Some Nonmetals
Metals: Gold,Silver,Stainless Steel,Copper,Aluminum, Brass,etc
Alloy and metal oxides: Anodized Aluminum
Some non-metallic materials: silicon wafer, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.

Certifications

CE, FDA, ISO9001, Certificate of Original

All our CNC machines are CE, FDA certified, and transon factory with ISO9001 certified. What's more, we can offer users certification of original for get better tax when they import.

Our factory

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer found in 2010. We specialized in manufacture of fiber laser cutting machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter, and we support OEM.

After 10 years growth, Transon CNC has won an excellent reputation in the global market. Our CNC machines have sold to more than 100 countries and we have some long-term cooperate agents in Euro, Asia and South America. We are looking for distributors all over the world, welcome worldwide customer come to visit our factory to cooperate.

Good Feedback

FAQ

FAQ:
Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010, all our CNC machines are assemble and calibrate by our full experience engineers.

Q2: Where are you located? How can we visit you?
A: We welcome worldwide customer visit us anytime. Factory locates in Jinan city of Shandong, in the north of China, near Beijing
and Qingdao.

Q3: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1).What work you will do?
2). What work table size you will need?

Q4: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, and Alibaba Trade Assurance.
Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set

Q5: What's your quality control system?
A: All our CNC machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send
you test video and photos for confirm.

Q6: What's your after-sales service?
A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years. Wholelife maintanence.
2) Engineers available service machinery overseas
3) 7X24hours online support and whole life maintenance.

Q7: If I don't know how to use the machine, can you teach me?
A: There is a U disc send together with the machine including machine install video, some video of how to use machine, user manual
and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
1) Online call or video call (Email, Skype, Whatsapp, Wechat, Phone)
2) Remote desktop software (Team viewer)

Each our laser marking machine will be through strict test before its loading. It can be designed with a pointer for perfectly aligning the material before starting work. Jinan Transon CNC Equipment Co., Ltd. has accumulated wealthy experience on manufacturing laser marking machine catering to the foreign market. It can be designed with a pointer for perfectly aligning the material before starting work.
