80W 100W 150W CO2 Laser Wood Cutting Machine Price for MDF/Plywood/Balsa/Veneer/ Laminated Board

这里可以自定义设置
80W 100W 150W CO2 Laser Wood Cutting Machine Price for MDF/Plywood/Balsa/Veneer/ Laminated Board
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
LASER CUTTING
Model Number:
TS1325
Applicable Material:
Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, fabric,cloth etc, Crytal
Condition:
New
Laser Type:
CO2
Cutting Speed:
0-70000mm/s
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst
Cutting Thickness:
30mm acrylic
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
lasercut5.3
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, GS, Sgs, UL, CCC, FDA
working area:
1300*2500mm
Laser output control:
1-100% software setting
laser power:
80W/100W
laser type:
Co2 sealed laser tube
cooling way:
water cooling
engraving speed:
0-6000mm/min
cutting speed:
0-5000mm/min
power supply:
222v/50hz 110v/60hz
graphic format supported:
BMP,PLT,DST,DXF,AL
software supported:
Coredraw,photoshop,AutoCAD,Tajima
After-sales Service Provided:
Engineers available to service machinery overseas
Cutting Area:
1300*2500mm
Supply Ability
Supply Ability:
1500 Set/Sets per Month

Co2 laser engraving cutting machine



Welcome to contact Transon laser by leaving a message below or send inquiry to annie(at)transoncnc.com for further information.Your kind response of below questions will help us to recomemnd the most suitable model to you asap.
1,Are you looking for laser cutting machine or laser engraving machine?
2,Which material need to cut or engrave ?
3,What is the thickness and size of materials?
4,What is your business industry?



Features:

1. Elegant exterior design. Steel girder welding structure, solid and reliable working table. Large format working area, high speed, high precision and wide range of application.

2. Optimized process area and wide application meet the requirements for various laser processing technics.

3. Imported  laser optic lens. The lens of less energy loss, high reflectivity, strong focusing and durable. Optical losses in the transmission process minimum to avoid the problems of large attenuation of laser cutting power.

4. This equipment uses HWIN high speed linear motion guide rail. Rail can be adjusted to ensure the accuracy after some time of movement. Our slider is also imported from Korea. The size is adjustable while using.

5. Complete exhaust and filtering system. There are a variety of input methods, such as USB flash disk, USB cable transmission and Cable connection. Easy to use. One computer controls multiple laser machines for cost saving.

6. For software, all using professional cutting software lasercut5.3. It is compatible with CAD, BMP, CorelDraw, DST, PLT and other related software. It combines graphics layout and control output in one. Unique design, friendly interface and easy to use. And you enjoy permanent free upgrades of the software.



Applicable industries and materials:
Acrylic cutting, wood cutting, garments sampling, large format cutting, leather cutting, shoemaking, furniture decoration, packaging mold, art crafts.

Hard MaterialCutEngraveSoft MaterialCutEngrave
Acrylic/Plexiglass/Pmma    ♦    ♦Fabric/Cloth    ♦    ♦
Organic board    ♦    ♦Wool Felt    ♦    ♦
double color plate    ♦    ♦Leather    ♦    ♦
Bamboo    ♦    ♦Paper/Cardboard    ♦    ♦
Wood Veneer/plywood    ♦    ♦Press Board    ♦    ♦
Plastic    ♦    ♦Fiberglass    ♦    ♦
Ceramic/Tile/Marble     ♦Mylar    ♦    ♦
Marble     ♦Rubber    ♦    ♦



Machine parameter



Model

TS1325 Laser Machine

Working area

250cm*130cm / 98in*51in (L*W)

Equipment Dimension

308cm*200cm*112cm

121in*79in*44in (L*W*H)

Laser power

60W/80W/100W/130W/150W

Laser type

CO2 sealed laser tube,water-cooled

Engraving speed

0-6000mm/min

Cutting speed

0-5000mm/min

Power supply

220V/50HZ , 110V/60HZ

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Driving system

3 phases stepper motor

Net Weight

1100kg

Optional part

Partial up-down work table, USB Port, Autofocus

Applicable material

Large acrylic, wood, cloth, rubber, leather.etc.

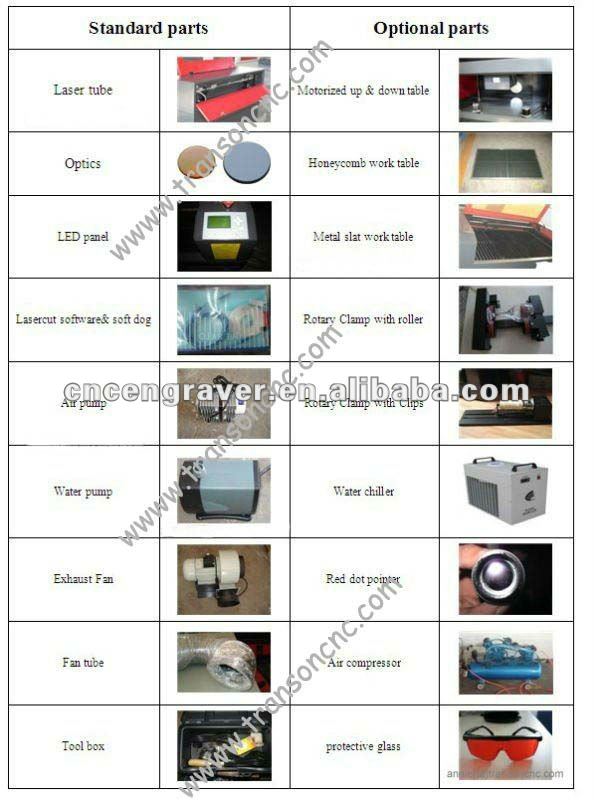

Machine standard and optional part

Guarantee & after sales Service
1. Laser tube guarantees 3 months. While the whole machine guarantee for 1 year.
2. 24 hours technical support by email or calling
3. English manual and video tutorial



Wood cutting sample



More materials cutting sample
