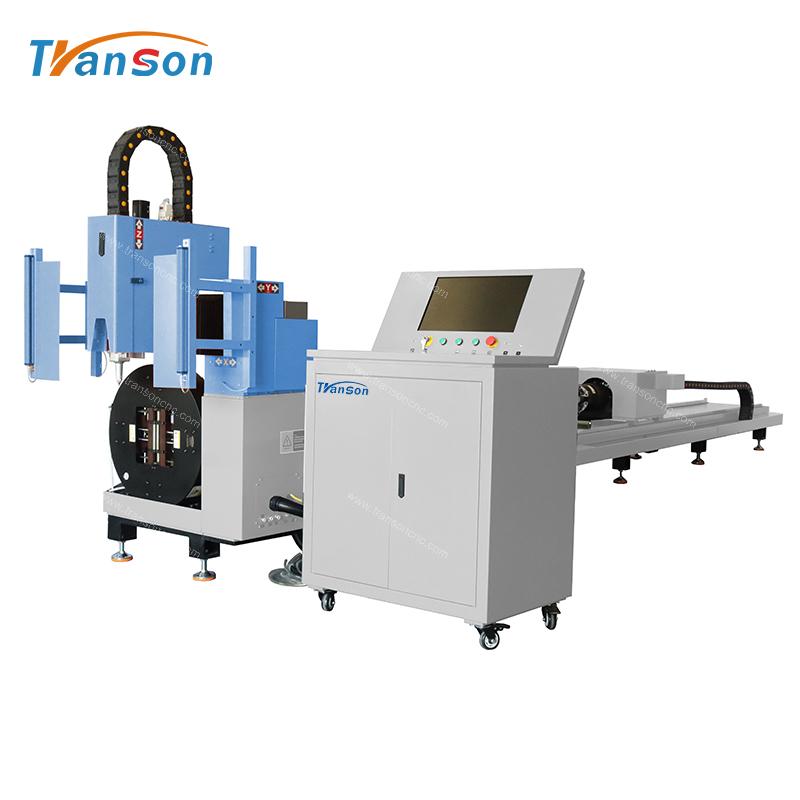

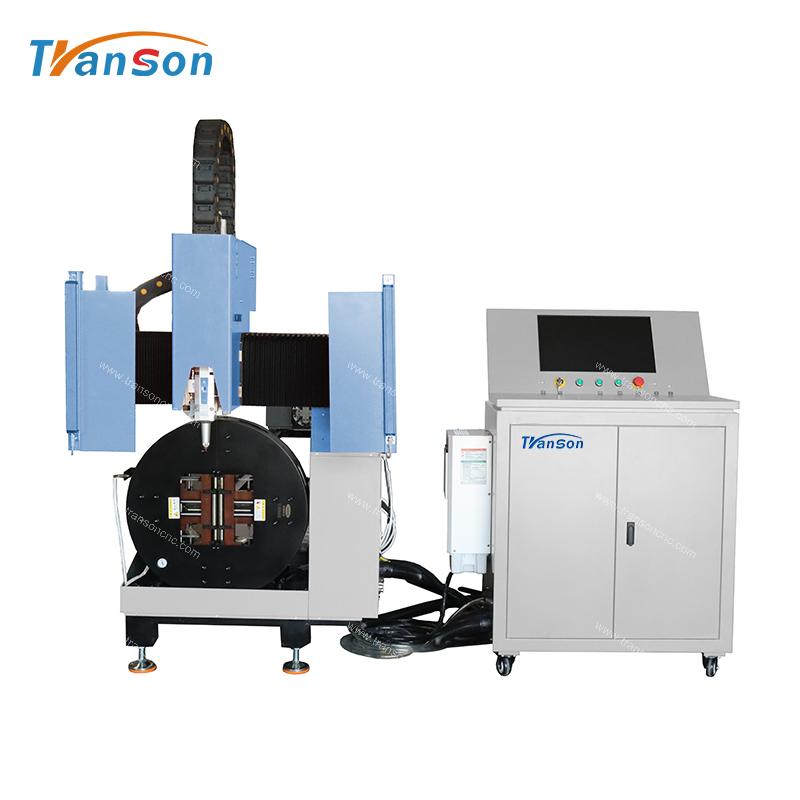

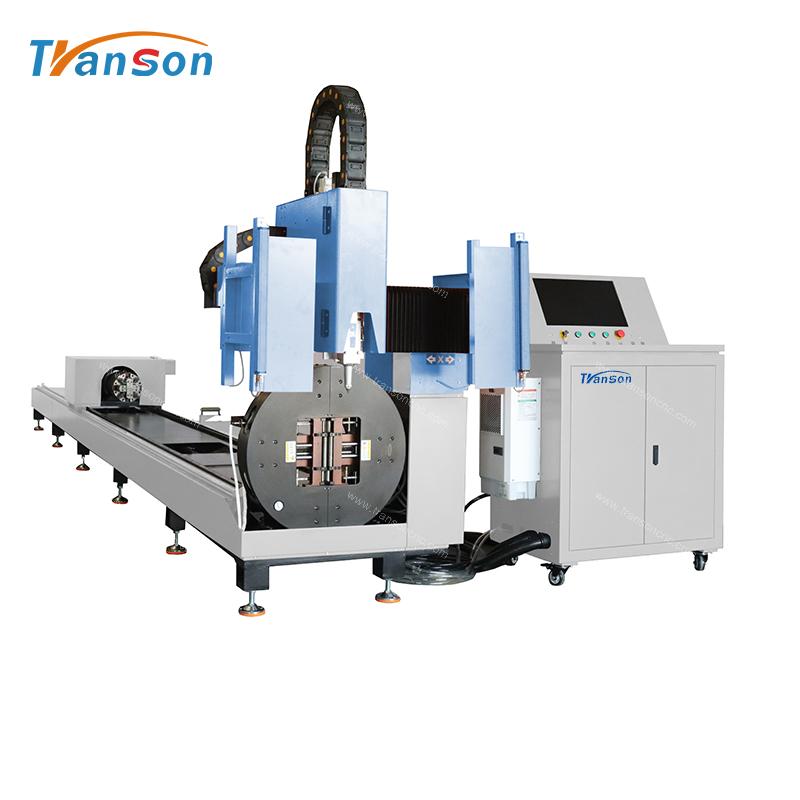

6m Metal Tube Fiber Laser Cutting Machine

TSF 6m 3m Metal tube fiber laser cutting machine

Model No.: TSF

Cooling System: Water Cooling

Applicable Material: Metal

Structure Type: Gantry Type

Metal Tube Length: 6m, Optional 3m

这里可以自定义设置

TSF 6m TUBE CUTTING MACHINE

1.The whole structure is welded, stable performance, to ensure the stable operation

2. With 650℃ high temperature heat treatment working bed and a large milling machine high precision machining to ensure the stability and smoothness of the working bed.

3. Operation system, easy control system, easy to learn and operating.

4. High quality, high efficiency fiber laser generator, low processing cost, saving help energy conservation and environmental protection..

5. Automatic chuck the front and bottom, easy to feeding, designed for saving material.

6. Equipped with servo system from Japan, gear rack movement structure using, to ensure the high speed, high precision, high reliability.

7. New beautiful designed, fully enclosed protective cover.

Machine Videos

Technical Parameters

Description	Specification
Product Name	Transon Fiber Laser Cutting Machine
Model	TSF
Type	Metal Tube cutting
Length of tube	6m, Optional 3m
Diameter for round tubes (outcicle diameter)	Φ20-Φ200mm
Laser Power	1500w/2000w/3000w/6000w /12000w optional
cooling way	Water cooling
Laser Type	Fiber
Wavelength	1080±5nm
Control system / Cutting Head	Bochu /Raytools/Au3tech optional
X/Y Max Speed	60m/min
Maximum acceleration	1.0G
repeat positioning accuracy	±0.02 mm
Voltage	220V/50HZ , 1 phase for 1500w-2000w 380v/50hz, 3 phase for 3000w-6000w
Drive system	Servo motor for x y z axis
Transmission way	Rack and Gear

PRODUCT DETAILS

APPLICATION

Product introduction

It’s professional tube cutting fiber laser machine, suitable for all kinds of stainless tube, round tube, square tube and oval tube. Improve the quality of tube cutting products, make cutting become simple.

Application industry

Applicable to sports equipment,pipe building materials, water pipe, oil pipe line, etc

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
