60w 4060co2 Laser Engraving And Cutting Machine For Glass...

Overview

Quick Details

Application:: LASER CUTTING

Applicable Material:: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal, Bamboo

Condition:: New

Laser Type:: CO2

Cutting Area:: 600mm*400mm

Cutting Speed:: 0-40000mm/min

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, DSB

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: RDWorks V8

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: RECI

Laser Head Brand:: Transon

Servo Motor Brand:: Stepper

Guiderail Brand:: PMI

Control System Brand:: RuiDa

Weight (KG):: 230 KG

Key Selling Points:: High Safety Level

Optical Lens Brand:: Wavelength

Warranty:: 1 Year

After-sales Service Provided:: Online support, Video technical support

After Warranty Service:: Video technical support, Online support

Applicable Industries:: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Model industry

Local Service Location:: United Kingdom, Philippines, Peru, Pakistan, Russia, Japan, Romania

Showroom Location:: United Kingdom, Peru, Russia, Romania

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Product name:: C02 Laser Engraving Cutting Machine

Keyword:: Co2 Laser Cuting Engravering Machine

Laser power:: 40W/60W/90W/100W

Function:: Cutting Nonmetal Materials

Laser tube:: Sealed CO2 Glass Tube and Metal Tube

Cutting materials:: Acrylic Wood Mdf Plywood Plactical

Working area:: 600*400mm

Name:: Transon CNC Laser Cutting Engravering Machine

Type:: Water Cooling CO2 Laser Cutting and Engravering Machines

Laser source:: Raycus IPG

Supply Ability

Supply Ability:: 300 Set/Sets per Month

Product Description

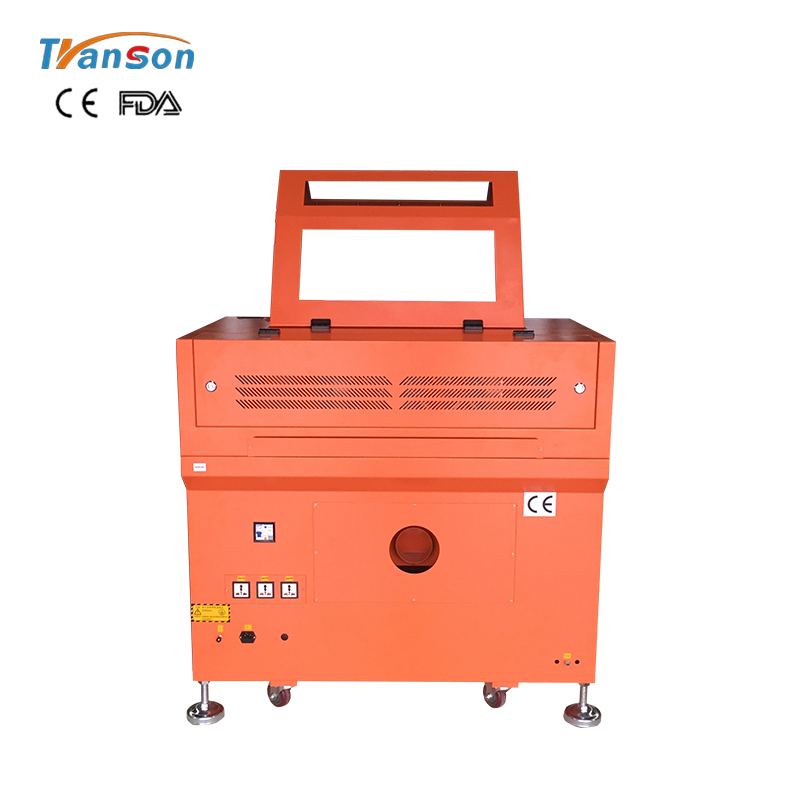

TN4060 60W CO2 laser cutting engraving machine

Our CO2 Laser Cutter has been widely used for engraving and cutting on nonmetal material, including Acrylic, Organic Glass, Crafts, Furniture, Glasses, Wood, PVC, Lightings, Advertising and decorating, pater, packaging ithography, mark plate, atomic stamp & seals, bamboo products, trademarks, embroidery, apparel and other industries. Adoptable for clothing tailoring, embroidery cutting, leather punch Pierced menthol cutting carving processing.

Model	TN4060
Working area	600mm400mm/23.62in15.75in
Laser power	40W/60W/80W/100W
Laser type	CO2 sealed laser tube, water-cooled
Worktable	Standard with Metal slat worktable
Engraving speed	0-70000mm/min
Cutting speed	0-40000mm/min
Highest scanning precision	2500DPI
Power supply	220V/50Hz , 110V/60Hz
Min. shaping character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported	AI, DXF,PLT,DST,DSB, EPS,DAT,NC,BMP,RDB, GIF, JPG, JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP, WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW,
Software supported	CorelDraw, PhotoShop, AutoCAD,TAJIMA
Control system	High speed DSP control system brand Ruida or Leetro
Machine work software	RDWorks V8 (Ruida)
Laser output control	1-100% by setting in the software
Interface	USB 2.0
Driving system	Stepper motor or optional Servo motor
Color separation	Yes
Optional part	Up and down worktable/ Honeycomb worktable/ Red dot pointer/ Auto focus/ Rotary attachment with rollor/ Rotary attachment with clip
Spare parts suggested	Extra laser tube/Extra 1 lens and 3 mirrors

Product details

Observation windown design Laser head Linear guider

CO2 Laser tube Laser power supply Core control system

Control pannel Water chiller Air pump

Honeycomb worktable Metal slat worktable Tool box

Three mirrors and one lens

Optional Parts

Up and down worktable Red dot pointer

Rotary device with roller Rotary device with clip

Application

Applicable industries

Marble, stone, tomb stone, wood, bamboo, organic glass, crystal, plastic, garments, paper,
leather, rubber, ceramic, glass and other nonmetal materials.

Applicable materials

Advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging,paper industry.

Acrylic Fabric Double color sheet

Glass bottle Leather MDF

Stone Wood MDF

Packing and Shipping

Our laser machines package include 3 layers:

1, Outside package: Polywood case with metal belt

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof plastick bag to cover all the machine.

Certifications

Exhibition

Our factory

Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC router and Laser engraver.

Our purpose is supply the machines with best ratio in quality to price.

Our machine has exported to worldwide, such as: Uk, Poland, Finland, Croatia, Italy, Holland, United States,

Mexico, Brazil, Colombia, Canada, Argentina, Russia, India, Thailand, Singapore, Malaysia, U.A.E an so on.

In order to establish a long term business, we will give our distributor maximum profits to support your efforts to resell our products in your markets.Welcome friends from worldwide to visit our fatory and give us your valuable suggestions. We wish to establish long business relationship and friendship with you.

We welcome more and more clients come to visit our factory and use our machine.

FAQ

Q1: Are you a factory or trading company?

A: We are a manufacturer found in 2010.

Q2: Where are you located? How can we visit you?

A: We locates in Jinan city of Shandong, in the north of China.Tell us your flight nimber or train number,we will pick you up.

Q3: How can I choose suitable machine?

2) What work table size you will need?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us: 1) What work you will do?

Usually we need 30% as deposit, balance paid before shipment.

Q4: What's your payment terms? Delivery time and MOQ? A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc. Delivery Time: 7-10 days after payment

A: We have a professional package suitable for oversea transportation. Machine will be fixed well

MOQ: 1set Q5: If I bought a machine, how could you make it safe while shipping. in the case. Q6: What's your quality control system?

Q7: What's your after-sales service?

A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm. A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years.

If you have any other questions, please write email to us or call us, we will reply you ASAP.

2) Engineers available service machinery overseas 3) 7X24hours online support and whole life maintenance.
