60w 1390 Organic Glass Laser Engraving And Cutting Machine...

Overview

Quick Details

Application:: Laser Engraving

Applicable Material:: Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, ceramic

Engraving Area:: 1300mm*900mm

Laser Type:: CO2

Engraving Speed:: 0-70000mm/min

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, DSB

Condition:: New

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: RECI

Laser Head Brand:: Transon

Servo Motor Brand:: Stepper

Guiderail Brand:: PMT

Control System Brand:: RuiDa

Optical Lens Brand:: Wavelength

Weight (KG):: 450 KG

Key Selling Points:: High Safety Level

Warranty:: 1 Year

After-sales Service Provided:: Online support

Applicable Industries:: Hotels, Building Material Shops, Machinery Repair Shops, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Model industry

After Warranty Service:: Video technical support, Online support

Local Service Location:: United Kingdom, Peru, Russia, Romania

Showroom Location:: United Kingdom, Peru, Russia, Romania

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Product name:: Marble Granite Stone Laser Engraving and Cutting Machine

Laser power:: 60W/80W/100W

Laser tube:: CO2

Keywords:: 60W nonmetal materials Laser Engraving and Cutting Machine

Control system:: Ruida Control System

Working area:: 1300mm*900mm

Laser tube type:: Glass CO2 Laser Tube

Cutting Speed:: 0-40000mm/min

Function:: Cutting Engraving Non-metal Materials

Type:: Water Cooling CO2 Laser Engraving Machines

Supply Ability

Supply Ability:: 300 Set/Sets per Month

Products Description

1390 CO2 laser cutting engraving machine can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency.

The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting. It's with high compatibility powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, Al and many other graphs, support win 7, win 8 and win 10 computer operating system.

Product details

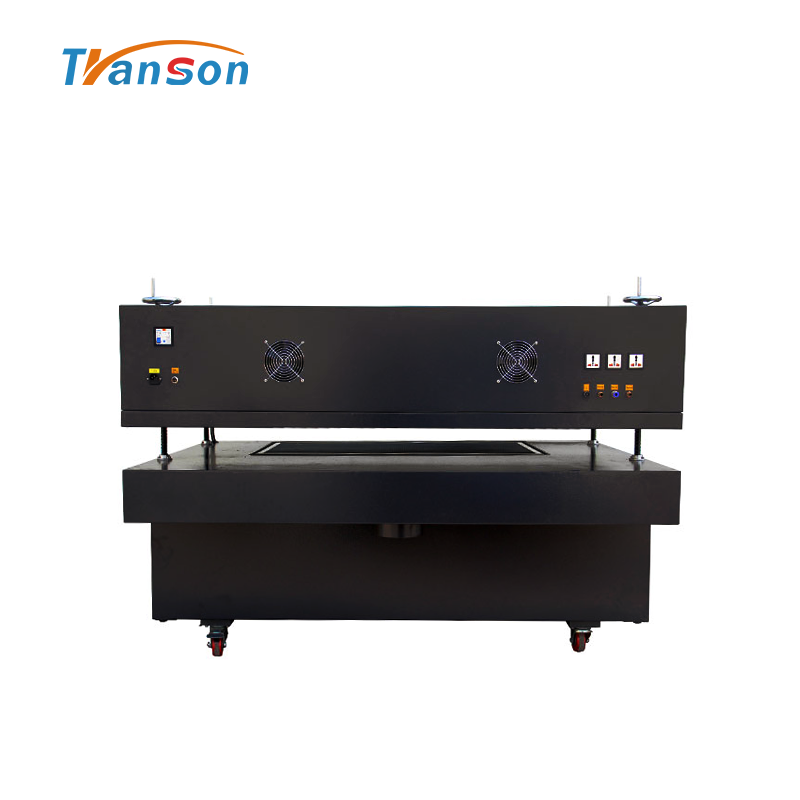

Back socket Observation window design Laser head

Hand move up down system Full direction wheel and position leg control pannel

Model	TSD1390
Working area	1300mm900mm/51.18in35.43in
Laser power	60W/80W/100W
Laser type	CO2 sealed laser tube, water-cooled
Worktable	Standard with up and down worktable
Engraving speed	0-70000mm/min
Cutting speed	0-40000mm/min
Highest scanning precision	2500DPI
Power supply	220v/50Hz , 110v/60Hz
Min. shaping character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported	BMP, PLT, DST, DXF, AI
Software supported	CorelDraw, PhotoShop, AutoCAD,TAJIMA
Control system	High speed Ruida DSP control system
Machine work software	RDWorks V8 (Ruida) support 15 languages
Laser output control	1-100% by setting in the software
Interface	USB
Color separation	Yes
Optional part	Metal slat worktable/Honeycomb worktable/Red dot pointer / Auto focus
Optional part		Rotary attachment with roller / Rotary attachment with clip
Spare parts	Extra laser tube
Spare parts		Extra 1 lens and 3 mirrors

Application

Packing and Shipping

Our laser machines package include 3 layers: 1, Outside package: Polywood case with metal belt 2, Middle package: We use foam to cover the machine. 3, Inner package: We use waterproof plastick bag to cover all the machine.

Certifications

Exhibition

Our factory

FAQ

Q1: Are you a factory or trading company? A: We are a manufacturer found in 2010. Q2: Where are you located? How can we visit you? A: We locates in Jinan city of Shandong, in the north of China.Tell us your flight nimber or train number,we will pick you up. Q3: How can I choose suitable machine? A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us: 1) What work you will do? 2) What work table size you will need? Q4: What's your payment terms? Delivery time and MOQ? A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc. Usually we need 30% as deposit, balance paid before shipment. Delivery Time: 7-10 days after payment MOQ: 1set Q5: If I bought a machine, how could you make it safe while shipping. A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case. Q6: What's your quality control system? A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm. Q7: What's your after-sales service? A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years. 2) Engineers available service machinery overseas 3) 7X24hours online support and whole life maintenance. If you have any other questions, please write email to us or call us, we will reply you ASAP.

This product can easily stand at par with the international competition. It allows enterprises to carry out full production without fear of human failure rate. The promising industry trend creates more development space for this product to apply. It allows enterprises to carry out full production without fear of human failure rate.

60W 1390 organic glass Laser Engraving and Cutting Machine
