50w Desktop Fiber Laser Marking Engraving Machine For Metal...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.002mm

Graphic Format Supported:: AI, BMP, Dst, DXF, DXP, PLT, Dwg, SVG,JPC,NC,G,BOT,GBR,BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF.

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: RAYCUS

Control System Brand:: BJJCZ

Marking Head Brand:: SINO

Weight (KG):: 130 KG

Key Selling Points:: Multifunctional

Warranty:: 3 years

After-sales Service Provided:: Online support, Field maintenance and repair service, Video technical support

Applicable Industries:: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Advertising Company

After Warranty Service:: Video technical support, Online support, Spare parts

Local Service Location:: Turkey, United Kingdom, Peru, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Marking Area:: 110mm*110mm

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Hot Product 2019

Warranty of core components:: 3 years

Core Components:: PLC, Raycus fiber laser source

Fiber laser source brand:: Raycus

Fiber laser source life span:: 100,000 hours above

Fiber laser marking machine computer:: Windows 10 computer

Frequency of pulse:: 20~250KHz

Power supply:: 220V/60Hz /8A (110V/60Hz /15A can choose)

Working area:: 110mm*110 mm(Standard) can choose 150*150mm 200*200mm 300*300mm

Marking depth:: <1mm

Mini marking tex size:: 1mmx1mm

Marking speed:: <5000mm/s

Marking material:: Metal Non-metal

Supply Ability

Supply Ability:: 300 Set/Sets per Month

Product Description

This is one of Transon factory hottest fiber laser marking machine, it can mark text, picture, series number, QR code, on all metal material and part nonmetal, include stainless steel, steel, aluminum, gold, silver, leather, plastic, ABS, etc. What's more, the 50W power can also do some cut work of thin metal sheet, like jewelry cut of silver, gold, aluminum.

Transon this fiber laser marking machine with CE and FDA certificate, black and white two color for choice. Each color we have enough shell in stock, can send out within one week.

Machine with strong metal plate body, environment protect perfect painting. What's more, its high precise machine body suit not only normal mark but also high precise mark work.

Specification

Transon Fiber Laser Marking Machine For Metal And Nonmetal
Model	TSF-20/ TSF-30/ TSF-50/ TSF-100
Laser type	Fiber Laser
Laser power	20W/ 30W/ 50W/ 100W
Beam quality	M2< 1.5
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~250KHz
Power supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling system	Air Cooling
Graphic format supported	AI, PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR, BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF
Working area	110mm*110 mm(Standard)
Marking depth	<1mm
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-450W
Operation temperature	0~40°C
Operation system	Microsoft Windows 10 system
Operating environment	Clean and free of dust
Warranty for fiber laser source	Three years

Product details

Raycus 50W fiber laser source

Hot sale Raycus brand fiber laser source, with 100,000 hours life span and 2 years warranty. Each fiber laser source standard with test port.

Optional:

1, JPT M7 20W 30W 60W 80W 100W MOPA fiber laser source.

2, MAX 20W 30W 50W 100W

3, IPG 20W 30W

Sino-Galvo High Speed Scan Head

High speed Sino-Galvo scan head, scan head with two outer red dot pointer and one inner red dot pointer. The inner red dot pointer see laser path and easy position. The outer red dot pointer for easy find focus length, no need use ruler each time.

Wavelegth Opex Field Lens

Machine standard with Wavelength brand 110x110mm marking area field lens. But users can buy extra field lens for bigger area mark.

Optional lens:

150x150mm,

175x175mm,

200x200mm,

300x300mm,

400x400mm.

We will calibrate and record the parameters for each field lens for our users.

Control System: Original JCZ

Machine with ORIGINAL BJJCZ control card, support add extra rotary device.

Software: EZCAD 2.12 Professional fiber laser marking software

EZCAD software compatible with other software like Photoshop, AUTOCAD,
users can use these software to make design then import the files to EZCAD to mark.
All files EZCAD support: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF.

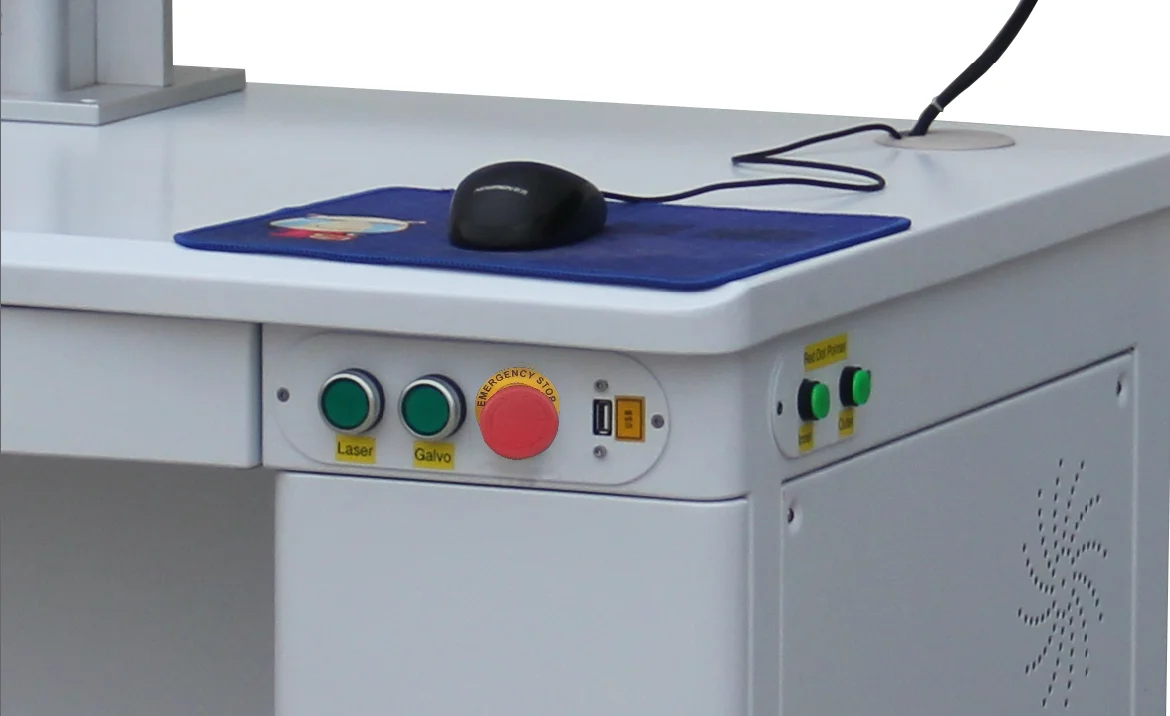

Control Buttons

Machine with 3 buttons:

1, Emergency stop button: give power for all machine.

2, Laser button: give power to fiber laser

3, Galvo button: give power to scan head

4, USB port: support read file from USB.

5, Air switch: for protect whole machine in case anything urgent happen, safety enough.

Aluminum Worktable

Whole aluminum worktable with holes, and with a 90 degree tool for easy position the marking object.

Optional Parts For Choice

1. Dia.65mm rotary device, for fix ring, bracelet, cylinder object to mark while rotate.

2. Dia. 80mm rotary device, for fix cylinder object to mark while rotate. Not suit for ring.

3. 2D worktable, for slightly moving the marking object in X Y axis. It will be precise than hand move.

4. Fix plate, when do long time marking or cutting work, the material shape may change because hot. This fix plate can keep material surface flat.

5. 3D worktable, for slightly moving the marking object in X Y Z axis. It will be precise than hand move.

6. Laser goggles for prevent fiber laser radiation to operator's eyes during laser work. protect wavelength range 800-2000nm.

7. Rotary worktable, it suit for mass mark of small items, the worktable will rotate to mark the next items after finish mark. Suit for mark pens, tools, etc. Worktable size can customize.

8. Slide Worktable in X axis.

For enlarge the marking area, then can mark bigger area than the field lens can reach.

Slide worktable in both X Y axis also available.

9. Conveyor belt for pens mass mark.

10. Button and motor control up down of scan head, no need use hand to move up down the scan head.

11. Software control up down of scan head, no need use ruler again. Just input the height of marking object to Z, then "apply".

12. 800mm high column, suit for mark on thick object, especially when install 300 x 300mm lens. standard column is 500mm high.

Application

This fiber laser marking machine can do mark of character, text, picture, QR code, series numbers, for all metal and part nonmetal.

1, Application material

All metal: Stainless steel, steel, aluminum, gold, silver, brass, copper, titanium, coating material, anodized or treated metal, etc.

Nonmetal: Hard plastic, rubber, marble, granite, ceramic, ABS, leather, electroplating materials, coating materials, epoxy,etc.

2, Application industry

Jewelry industry, hardware tools, led bulb, animal ear tag, advertising industry, beverage, food packaging,

Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines, bio-pharmaceutical industry, liquor industry, health care products, plastic buttons, bathing supplies, business cards, cosmetics packaging, car decoration, etc.

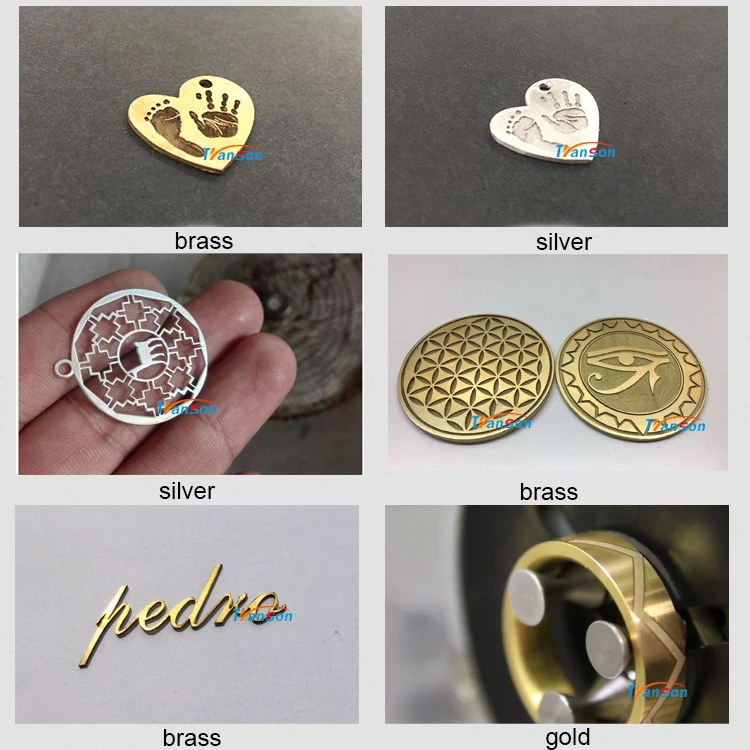

Jewelry industry mark and cut of silver, gold, brass

Marking photos on metal, this is anodized aluminum.

Logo, photos mark on stainless steel, and coating material. Can also mark on curved surface.

Mark logo on plastic, like animal ear tags

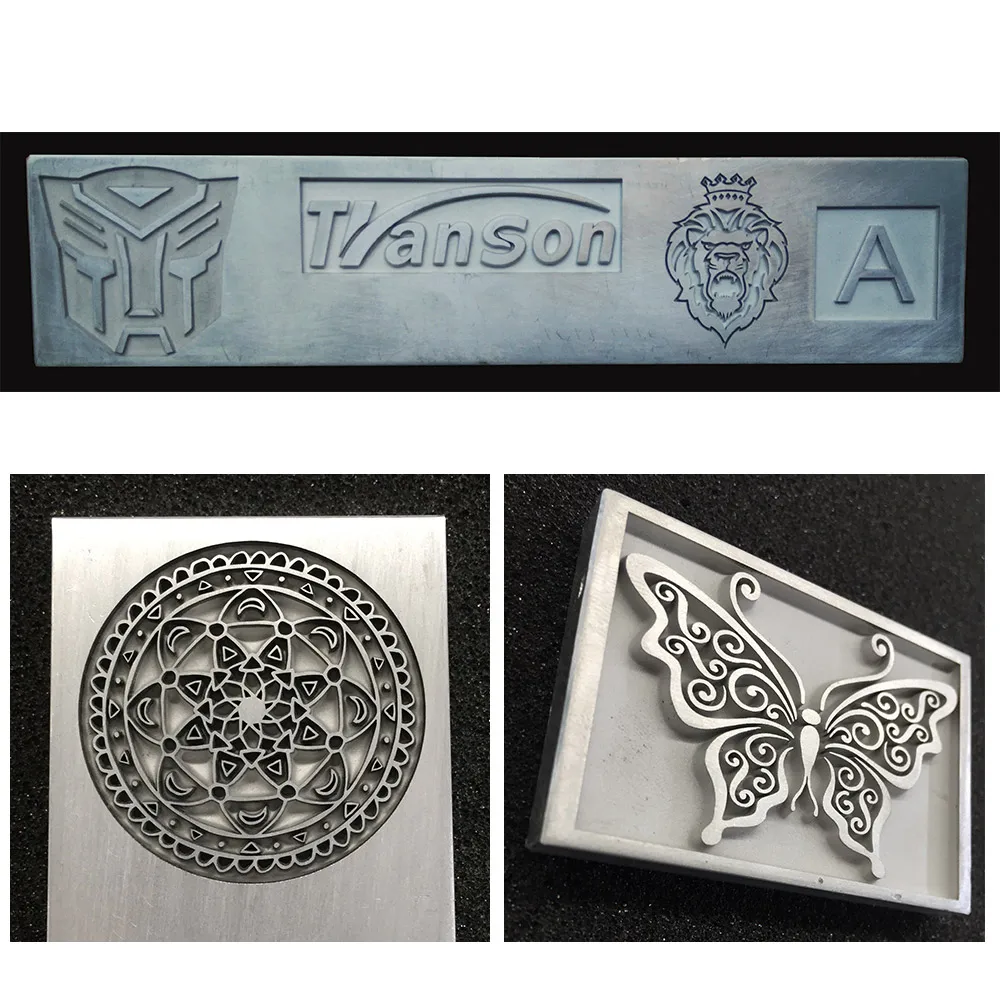

2D deep mark on aluminum

Optional 3D Marking function for reference.

Certifications

CE, FDA, ISO9001, Certificate of Original

All our CNC machines are CE, FDA certified, and transon factory with ISO9001 certified. What's more, we can offer users certification of original for get better tax when they import.

Transon Company

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer found in 2010. We specialized in manufacture of fiber laser cutting machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter, and we support OEM.

After 10 years growth, Transon CNC has won an excellent reputation in the global market. Our CNC machines have sold to more than 100 countries and we have some long-term cooperate agents in Euro, Asia and South America. We are looking for distributors all over the world, welcome worldwide customer come to visit our factory to cooperate.

FAQ

FAQ:

Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010, all our CNC machines are assemble and calibrate by our full experience engineers.

Q2: Where are you located? How can we visit you?
A: We welcome worldwide customer visit us anytime. Factory locates in Jinan city of Shandong, in the north of China, near Beijing
and Qingdao.

Q3: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, and Alibaba Trade Assurance.
Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set

Q4: What's your quality control system?
A: All our CNC machines with CE and FDA certificate. Our QC department will do full test of each machine after finish and calibrate, and we will send you test video and photos for confirm.

Q5: What's your after-sales service?
A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years.
2) Engineers available service machinery overseas
3) 7X24 hours online support and whole life technical support.

Q6: If I don't know how to use the machine, can you teach me?
A: There is a U memory disc send together with the machine including machine install video, some video of how to use machine, machine user manual and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
1) Online call or video call (Email, Skype, Whatsapp, Wechat, Phone)
2) Remote desktop software (Team viewer)

Please fee free contact us if you have any doubts, we will reply you as soon as we get your message or email.
