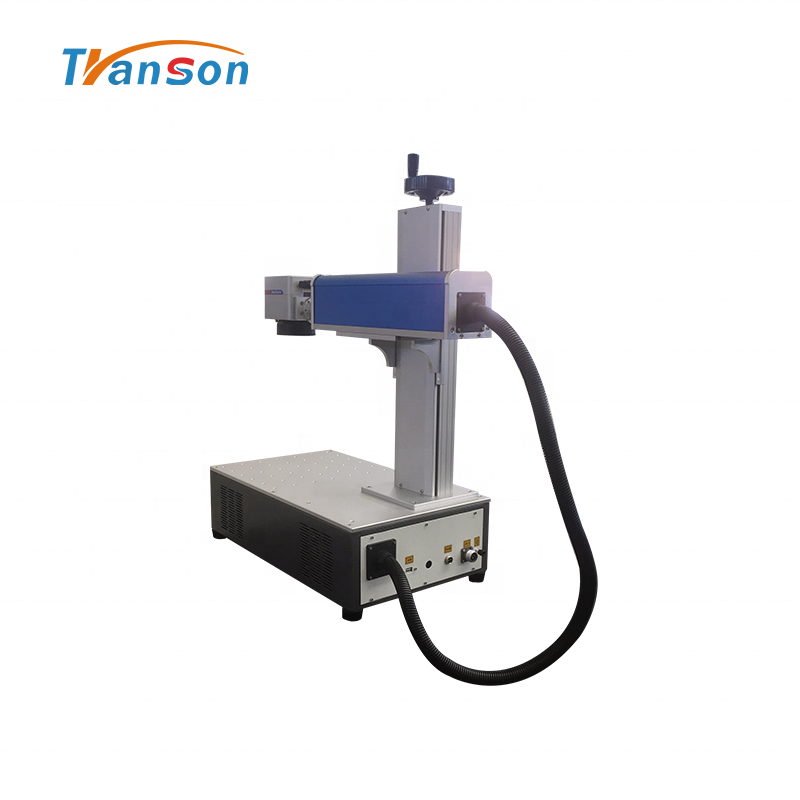

30W Faith High quality Economical super mini fiber laser marking machine

这里可以自定义设置
30W Faith High quality Economical super mini fiber laser marking machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Marking
Working Accuracy:
0 ~0.5mm
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, DXP, JPG
Laser Type:
Fiber Laser
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
Super
Control System Brand:
JCZ
Marking Head Brand:
SINO
Weight (KG):
150 KG
Key Selling Points:
Easy to Operate
Warranty:
2 years
After-sales Service Provided:
Online support, Video technical support
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, Home Use, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Non Metal Material
After Warranty Service:
Video technical support, Online support
Local Service Location:
United Kingdom, Peru, Pakistan, Russia, Romania
Showroom Location:
United Kingdom, Peru, Pakistan, Russia, Romania
Marking Area:
110mm*110mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
3 years
Core Components:
Raycus laser source
Product name:
mini fiber marking machine - Dynamic focusing
Laser source:
Super
Laser Power:
20W/30W/50W
Working area:
200*200mm
Lifespan of laser device:
100, 000 Hours
Marking Depth:
0 ~0.5mm
Marking material:
Non Metal and Metal
Laser wavelength:
1064 nm
Marking Speeed:
<7000mm/s
Keywords:
30w engineering plastics Mini 20W Fiber Laser Marking Machine
Supply Ability
Supply Ability:
100 Set/Sets per Month
Product Description
Fiber laser engraving machine have widely application on jewellery processing field, such as rings, bracelet, necklace, chains etc. Both we can use it on gold&silver cutting and engraving.
FIBER LASER MARKING MACHINE Advantage
1) Under operation system: windowns xp , windowns 7 ,windows8/10
2) Support Characters , digital, series NO, Date codes
3) Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix Font,One-Dimensional bar code,
Two-Dimensional bar code , and so on
4) Common types of images are supported. (bmp, jpg, gif, tga, png, tif...)
5) Common vector images are supported. (ai, dxf, dst, plt...)
6) Flexible variable text : changes the text real time while in laser processing . Excel datasheet is supported.
7) Dometic and Imported fiber laser source.
8) Excellent optical mode, long operating life, up to 100,000HS
9) The highest electro-optical conversion efficiency, up to 80%, but gross power less than 600W
10) Small size, steady, without maintenance, easy to operate
11) High precision, suited for fine processing on all metal and some non-metal.
12) This machine adapts the fiber laser and has high electro- optical conversion rate, the quality of laser beam is good,cooling
with air- cooling methods, it has smaller shape, low power and much more energy-efficient.
13) Divergent Angle is about a quarter of the pump laser semiconducto, especially mainly used in precise, fine marking,low using
cost, electro-optic conversion efficiency is up to 30% .
Model
TSF-20/TSF-30/TSF-50
Laser type
Mini Fiber Laser
Laser power
20W(30W/50W optional)
Beam quality
M2<1.5
Laser wavelength
1064±1nm
Power adjustment range
10~100%
Output fiber length
1~2m
Frequency of pulse
20~250KHz
Power supply
220V/60HZ/8A(110V/60HZ/15A can choose)
Cooling system
Air Cooling
Graphic format supported
Image Files: BMP.JPG.JPEG.GIF.TGA.PNG.TIF. TIFF
Vector Files: Al.PLT. DXF.JPC.SVG.NC.G.BOT.GBR. DST
Working area
Standard:110*110mm,
Optional:50*50mm,75*75mm,150*150mm,175mm*175mm,200*200mm,300*300mm
Marking depth
<1mm
Marking speed
<7000mm/s
Min. line width
0.05mm
Repeatability accurac
0.003mm
Power Machine
300w-800w(Depend on fiber laser power)
Operation temperature
0~40°C
Operation system
Compatible with Microsoft Windows XP、7、8、10 system
Operating environment
Clean and free of dust
Warranty
Three years
Packing /Package size
650mm*350mm*860mm/840mm*450mm*380mm
Net /Gross Weight
36kg/56kg
Product details
Hand lifting Focus lens
Control Buttons Galvanometer Scanner
Optional parts
Rotary device 2D worktable
Lens field Lens goggles
Application

Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances,
communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle,cooking utensils, stainless

Applicable Materials

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin,ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Plastic
Aluminum
Stainless steel
Packing and Shipping
Our laser machines package include 3 layers: 1, Outside package: Polywood case with metal belt 2, Middle package: We use foam to cover the machine. 3, Inner package: We use waterproof plastick bag to cover all the machine.
Certifications
Exhibition
Our factory
Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC router and Laser engraver. Our purpose is supply the machines with best ratio in quality to price. Our machine has exported to worldwide, such as: Uk, Poland, Finland, Croatia, Italy, Holland, United States, Mexico, Brazil, Colombia, Canada, Argentina, Russia, India, Thailand, Singapore, Malaysia, U.A.E an so on. We welcome more and more clients come to visit our factory and use our machine. In order to establish a long term business, we will give our distributor maximum profits to support your efforts to resell our products in your markets.Welcome friends from worldwide to visit our fatory and give us your valuable suggestions. We wish to establish long business relationship and friendship with you.

FAQ

Q1: Are you a factory or trading company? A: We are a manufacturer found in 2010. Q2: Where are you located? How can we visit you? A: We locates in Jinan city of Shandong, in the north of China.Tell us your flight nimber or train number,we will pick you up. Q3: How can I choose suitable machine? A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us: 1) What work you will do? 2) What work table size you will need? Q4: What's your payment terms? Delivery time and MOQ? A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc. Usually we need 30% as deposit, balance paid before shipment. Delivery Time: 7-10 days after payment MOQ: 1set Q5: If I bought a machine, how could you make it safe while shipping. A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case. Q6: What's your quality control system? A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm. Q7: What's your after-sales service? A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years. 2) Engineers available service machinery overseas 3) 7X24hours online support and whole life maintenance. If you have any other questions, please write email to us or call us, we will reply you ASAP.
The product is widely used in public areas like housing, education&research institutions, hospitals, hotels restaurants, and cinema halls. It provides the option to cut thicker materials. Customers who bought this product one year ago have come to rely on it thanks to its high precision and durability. It provides the option to cut thicker materials.
