We have many CO2 laser engraving cutting machine for choice:

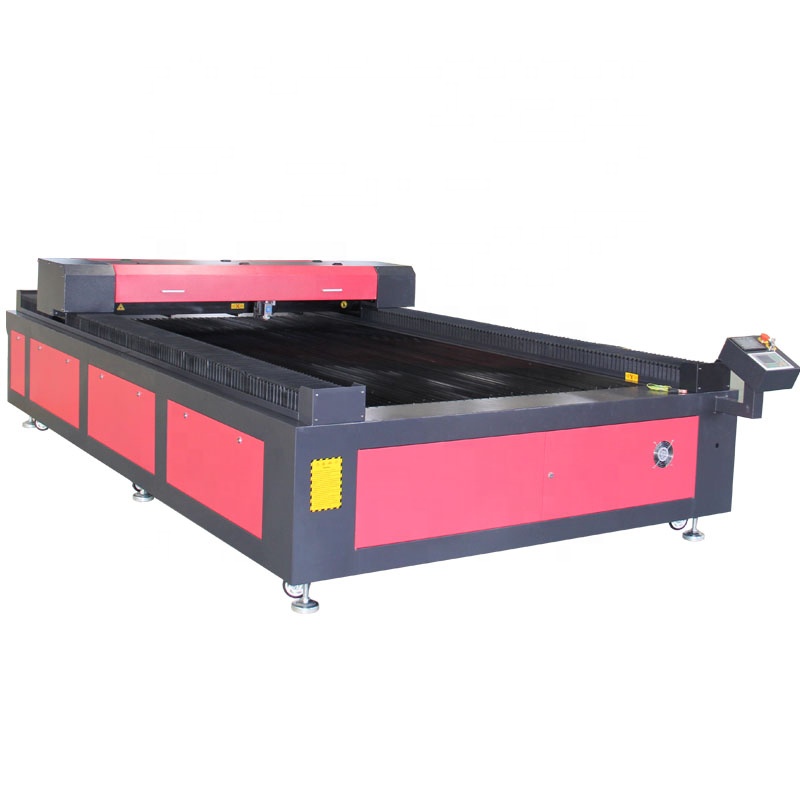

Feature of TSH1325 metal laser cutting machine
1). Configure China top Reci brand laser tube, 10,000 hours lifespan, 12 month warranty.
2). Configu high power water chiller CW5200, that can control the water temperature automatically.
3). When cut metal, the living focus system can detect the focus length automatically, so if metal sheet surface not flat no problem.
4).Can cut thin metal sheet and pipe, can engrave and cut nonmetal material.
Acrylic, perspex, wood, plywood, thin metal sheet like stainess steel sheet, carbon steel sheet, metal pipe, etc.
1, Cut metal thickness for reference
Stainless steel: Reci W6 max 1.2mm, Reci W8 max 2mm
Carbon steel: Reci W6 max 2mm, Reci W8 max 3mm
2, Cut nonmetal thickness for reference, W6 tube
Parameter of TSH1325 metal laser cutting machine
Reci W6 130W-150W glass tube/ W8 150-180W glass tube
CO2 sealed laser tube,water-cooled
Resetting positioning accuracy
220V/50HZ , 110V/60HZ
0 - 45°C
5 - 95%
Min. shaping character
English 1.0 x 1.0mm
Graphic format supported
BMP, PLT, DST, DXF, AI, etc.
CorelDraw, PhotoShop, AutoCAD,TAJIMA
1, Standard knife worktable ( for hard material like wood, acrylic, MDF, etc. )
2, Honeycomb worktable( for soft material like leather, fabric,etc.)
3,Rotary device with roller: (for heavy and fragile round materials like glass cup, bottles, etc. engraving, it should equiped together with up and down worktable)
4, Rotary device with clip: (for round mateials like wood, and light glass cup etc engraving, it should equiped together with up and down worktable)
5, Motorized up and down worktable system, only 1/3 of the worktable can up down.
1, Cut: Thin metal sheet, metal pipe(stainless steel, carbon steel). Almost all nonmetal like wood, acrylic,paper, leather, MDF, etc.
2, Engrave: Almost all nonmetal material like wood, MDF, leather, paper,acrylic, etc.
Samples: Cut 1.5mm thick stainless steel
This TSH1325 Co2 laser engraving cutting machine do engrave of 5mm high text on wood:

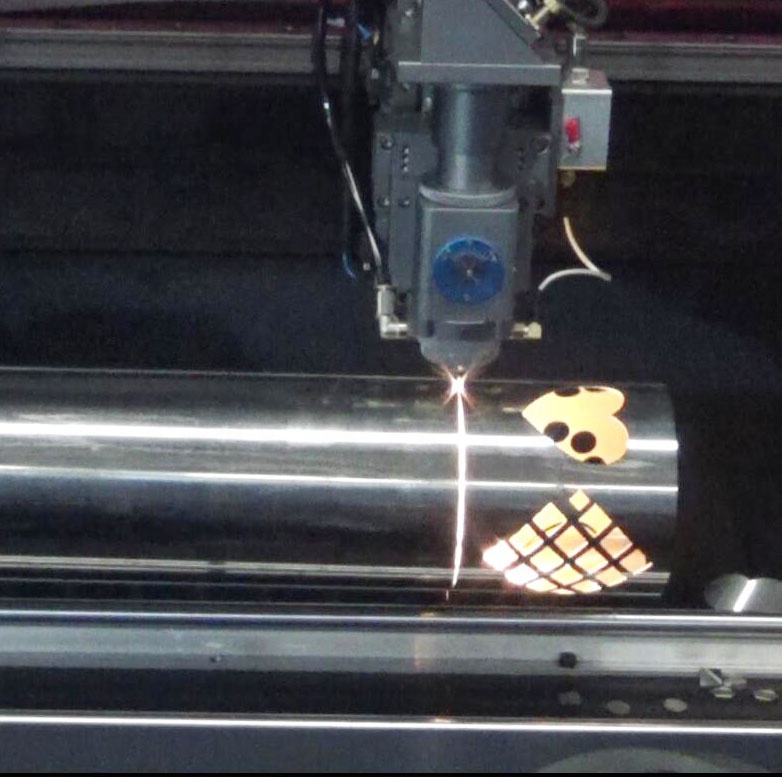

If machine add optional rotary device and up down worktable, this TSH1325 Co2 laser engraving cutting machine can cut metal pipe.
Special laser head for metal and nonmetal:
Machine back socket:
|1||USB port LED panel|
|2||Ruida DSP offline controller|
|5||Air Assist Pump|
|6||CW5200 Whater Chiller|
|8||Exhaust Fan tube|
|9||Reci brand laser tube|
|10||Imported Lens and Mirrors (installed in the machine )|
|11||Water flow sensor|
|12||User manual of machine (English version)|
|13||User manual of software|
|16||U flash memory disk|
|17||Tool box include tools|
Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010.
Q2: Where are you located? How can we visit you?
A: We locates in Jinan city of Shandong, in the north of China.
Q3: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work you will do?
2). What work table size you will need?
Q4: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc.
Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
Q5: If I bought a machine, how could you make it safe while shipping.
A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case.
Q6: What's your quality control system?
A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm.
Q7: What's your after-sales service?
A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years.
2) Engineers available service machinery overseas
3) 7X24hours online support and whole life maintenance.
Q8: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disc send together with the machine including machine user manual and software user manual .
2) Online (Skype, Whatsapp, Wechat, Phone)
3) Remote desktop software (Team viewer)
4) Demo Video
Q9:This is my first time buy machine from China, how i buy machine from you?
A:Choose suitable machine through talking with our seller manager → Pay to us→ manufacture and testing machine(about 3-5 workdays) →shipping to you
If you have any other questions, please write email to us or call us, we will reply you ASAP.
