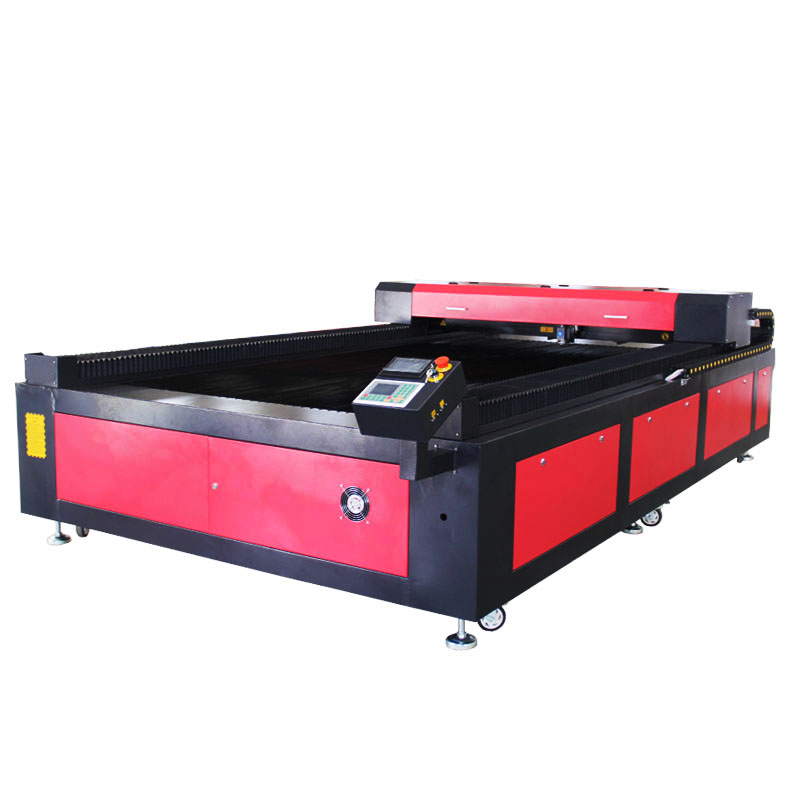

280w Yongli 1500x3000mm Mixedlaser Cutting Machine For...

Overview

Quick Details

Application:: LASER CUTTING

Applicable Material:: Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crytal

Condition:: New

Laser Type:: CO2 Laser

Cutting Area:: 1500 mm x 3000mm

Cutting Speed:: 20m/min

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, JPEG

Cutting Thickness:: 0-30mm

CNC or Not:: Yes

Cooling Mode:: water cooling

Control Software:: Metalcut

Place of Origin:: Shandong

Brand Name:: Sino

Certification:: ce, ISO, FDA

Laser Source Brand:: DLT

Laser Head Brand:: DLH

Servo Motor Brand:: stepper motor and driver

Guiderail Brand:: PMT

Control System Brand:: Ruida

Key Selling Points:: Cutting Metal

Optical Lens Brand:: Wavelength

Warranty:: 1 Year

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Garment Shops, Manufacturing Plant, Retail, Energy & Mining, Food & Beverage Shops, Advertising Company

Working area:: 1500mm x 3000mm

Working table:: Standard with Metal slat worktable

Cutting speed:: 20m/min

Lifespan of laser device:: 10000hours

Laser Wavelength:: 10.64um

Highest Scanning Preasion:: 2500DPI

Min.shaping characters:: English 1.0mm x 1.0mm;Chinese Charactes 1.5mm x 1.5mm

Interface:: USB

Laser power:: 300W(280w as optional)

OPERATING TEMPERATURE:: 0-45 ℃

Supply Ability

Supply Ability:: 300 Set/Sets per Month

280w-300w Yongli 1500x3000mm Mixed Laser Cutting Machine For Carbon Steel

Application

This machine apopts advanced famous DLT-300 Beam Combination laser tube as laser source which can provide higher power.

The standard Laser power is 280W as.Strong Powerful Laser is able to cut metal and non-metal,it is mainly widely applied to those two aspects:

1. cut thick metal sheet with living focus system

2.engrave and cut nearly all nonmetal materials

DLT series Beams Combination Laser Tube

Here are some sample this kind of machine cut

Advantages

This machine has 4 advantages:

(1)Widely application. Not only nonmetal material but also metal materials such as carbon and stainless.The laser power is 300W,so it can cut thick materials

(2)High Precision.This machine can meet most customers' the need.

Its Min. Shaping Character is 1.5mm x 1.5mm for Chinese and 1.0mm x 1.0mm for English.

Its cutting speed is 40meters/minute.

(3)Support PC.It can support nearly all software runs in Microsoft Windows Systems.

(4)Strong Powerful Cutting.The power of laser tube is 280W.The cutting ability is rather strongly.

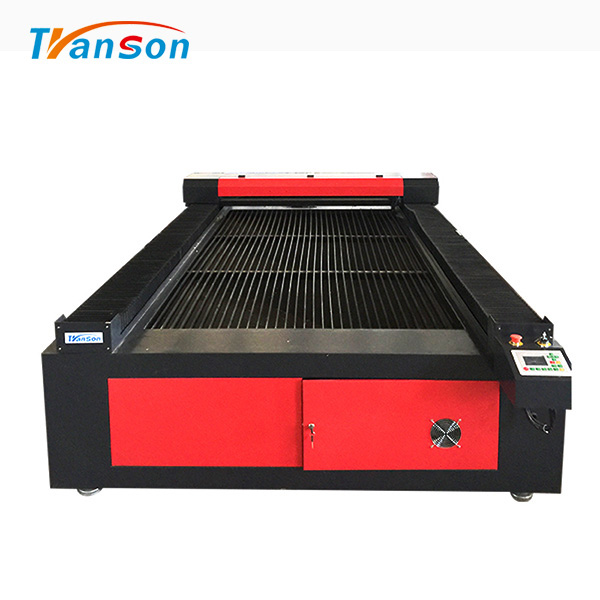

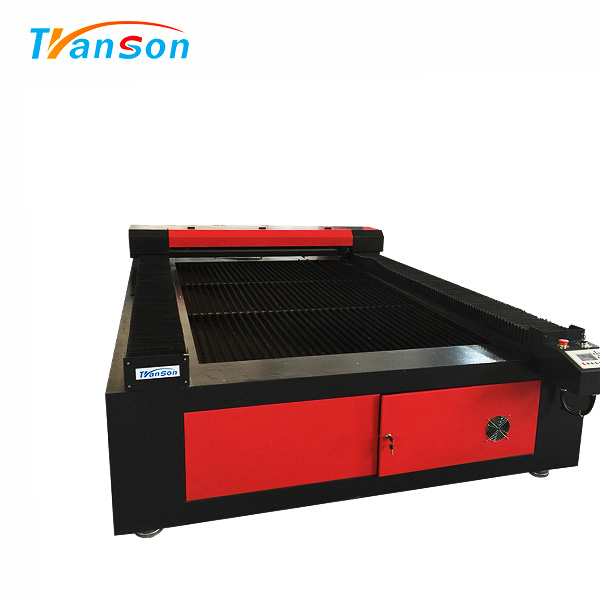

Detailed Image

Standard parts are as below

Parameters

All detailed parameters are as below:

Laser Power	280W
Laser Type	CO2
Cooling Type	Water Cooling
Cutting Speed	40m/min
Power Requirement	110V/220V, 50HZ/60HZ
Min. Shaping Character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic Format Supported:	RLD file. Import: PLT, DST, DXF, AI,DSB... Export: PLT
Software Supported	CorelDraw, PhotoShop, AutoCAD,TAJIMA
Control System	Ruida DSP control system
Machine Work Software	MetalCut
Laser Output Control	1-100% by setting in the software
Interface	USB
Operating Temperature	0-45 ℃
Operating Humidity	5-95%
Spare Parts	Extra laser tube/Extra 1 lens and 3 mirrors
Compatible PC	Windows XP/ 7 /8 / 10 PC

280w Yongli 1500x3000mm MixedLaser Cutting Machine For Carbon Steel 300watts

Online Customization

280w-300w Yongli 1500x3000mm Mixed Laser Cutting Machine For Carbon Steel
