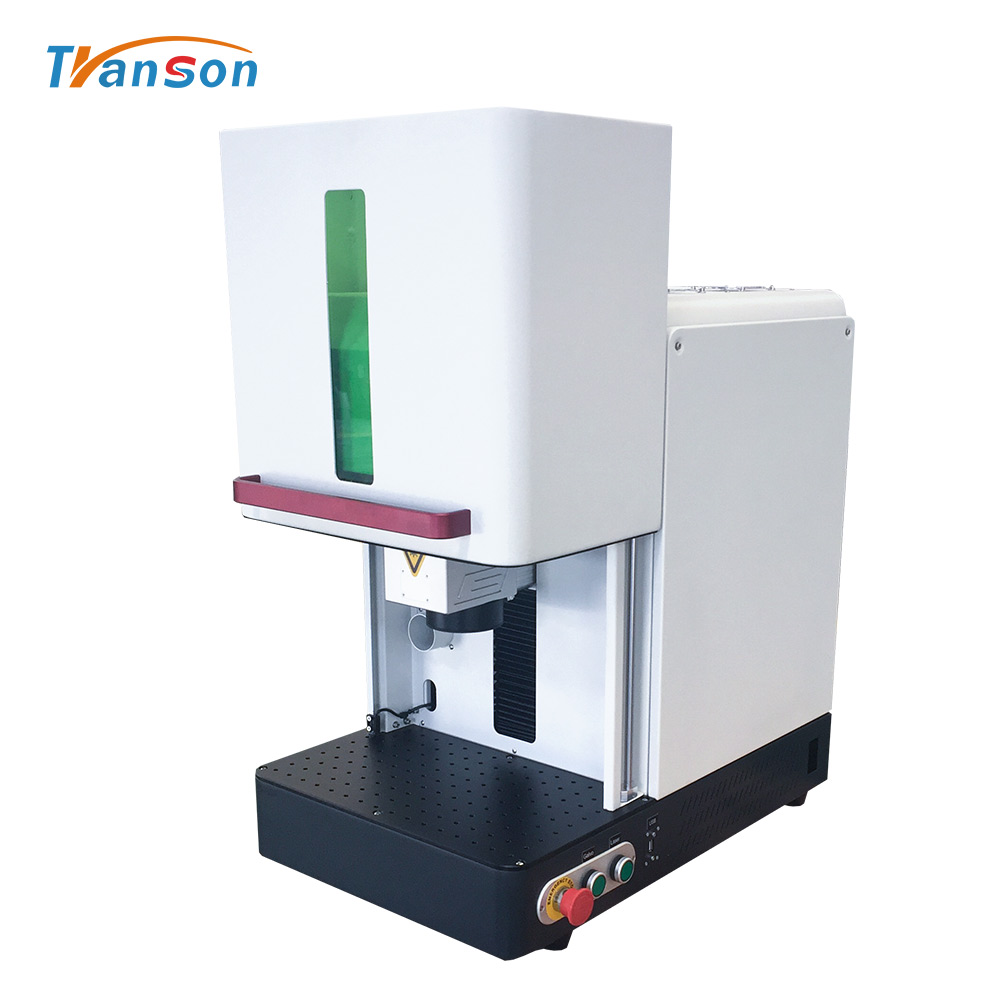

20w The New Style Auto Sealed Enclosed Fiber Laser Marking...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.001mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, GIF TIF JPG JPEG TGA PNG TIFF

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: RAYCUS

Control System Brand:: BJJCZ

Marking Head Brand:: SINO

Weight (KG):: 92 KG

Key Selling Points:: Easy to Operate

Warranty:: 3 years

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company

After Warranty Service:: Video technical support, Online support

Local Service Location:: United Kingdom, Philippines, Peru, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Marking Area:: 110mm*110mm

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Hot Product 2019

Warranty of core components:: 3 years

Core Components:: PLC

Beam quality:: M2< 1.5

Laser wavelength:: 1064±1nm

Frequency of pulse:: 20~80KHz

Cooling system:: Air Cooling

Marking speed:: <5000mm/s

Marking depth:: <1mm

Repeatability accuracy:: 0.003mm

Min. line width:: 0.05mm

Operation temperature:: 0~40°C

Operating environment:: Clean and free of dust

Supply Ability

Supply Ability:: 300 Set/Sets per Month

Products Description

Advantages
1).Wide range: Can be used on many materials like metal, plastic, leather, alloy etc. Can be used in many industries like Jewelry
engraving, Medical devices, Phone case engraving, Hardware industry, stainless steel tableware, electron components marking etc.
2).Permanent marking: Laser marking is a permanent marking. It won’t fade, run or become less discernable as time passes like
traditional marking including ink jet, hand engraving, dot-peen marking.
3).Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
4).Easy to operate: Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch
easier than YAG diode marking machine.
5).High precision: 0.003mm re-position accuracy. Minimum line width 0.01mm.
6).Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.
7).Portable: Small footprint, easy to move and transportation. Size like a computer case.

Benefits
1).Environmentally friendly: Using no harsh chemicals during the process. No need water chiller to cool, small size small
occupation, can be easily installed in many places.
2).Cost-effective: No maintenance during the 100,000 hours working life. One machine can be used in many different materials &
industry. Minimal part replacement
3).High efficiency: Computer operated, suitable for automatically processing(like production line, automatically filling line).

Parameters:

Model	TSF-20 /TSF-30 Mini Sealed Model
Laser type	Fiber Laser
Laser power	Raycus 20W/ 30W (IPG, JPT, Max optional)
Beam quality	M2< 1.5
Laser wavelength	1064±1 nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~80KHz
Power supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling system	Air Cooling
Graphic format supported	BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF
Graphic format supported		AI, PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR
Working area	110mm110 mm(Standard) can choose 5050 150150 175175 200*200 (mm) If use rotary device, the max support 150x150mm field lens.
Marking depth	<1mm
Marking speed	<5000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300-600W
Operation temperature	0~40°C
Operation system	Microsoft Windows system

Details Images

Hot sale Raycus brand fiber laser source, with
100,000 hours life span and 3 years warranty. Each fiber laser source standard with test report.
Optional: MAX, JPT, IPG brand, JPT MOPA colorful mark fiber laser source.

PS:this price is for Raycus 20w,other configuration need to consult.

EZCAD Software
Machine with EZCAD software, it compatible with other software like Photoshop, AUTOCAD, Coreldraw,
users can use these softwares to make design then import the file to EZCAD to mark.
The files EZCAD support: AI, PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF.

Original BJJCZ Control Card

This advanced original BJJCZ control system, support add rotary device to laser marking machine.

Control Buttons
Buttons for Power,
Scan head, Laser.
Humanized contol system
Easy to learn，dust proof design

Black sockets

Top LED Light

Optional Parts

Optional Parts For Choice

Dia.65mm rotary device, for fix ring, bracelet, cylinder object to mark while rotate.

Dia. 80mm rotary device, for fix cylinder object to mark while rotate. Not suit for ring.

2D worktable, for slightly moving the marking object in X Y axis. It will be precise than hand move.

Fix plate, when do long time marking or cutting work, the material shape may change because hot. This fix plate can keep material surface flat.

3D worktable, for slightly moving the marking object in X Y Z axis. It will be precise than hand move.

Laser goggles for prevent fiber laser radiation to operator's eyes during laser work. protect wavelength range 800-2000nm.

Rotary worktable, it suit for mass mark of small items, the worktable will rotate to mark the next items after finish mark. Suit for mark pens, tools, etc. Worktable size can customize.

Slide Worktable in X axis.

For enlarge the marking area, then can mark bigger area than the field lens can reach.

Slide worktable in both X Y axis also available.

Conveyor belt for pens mass mark.

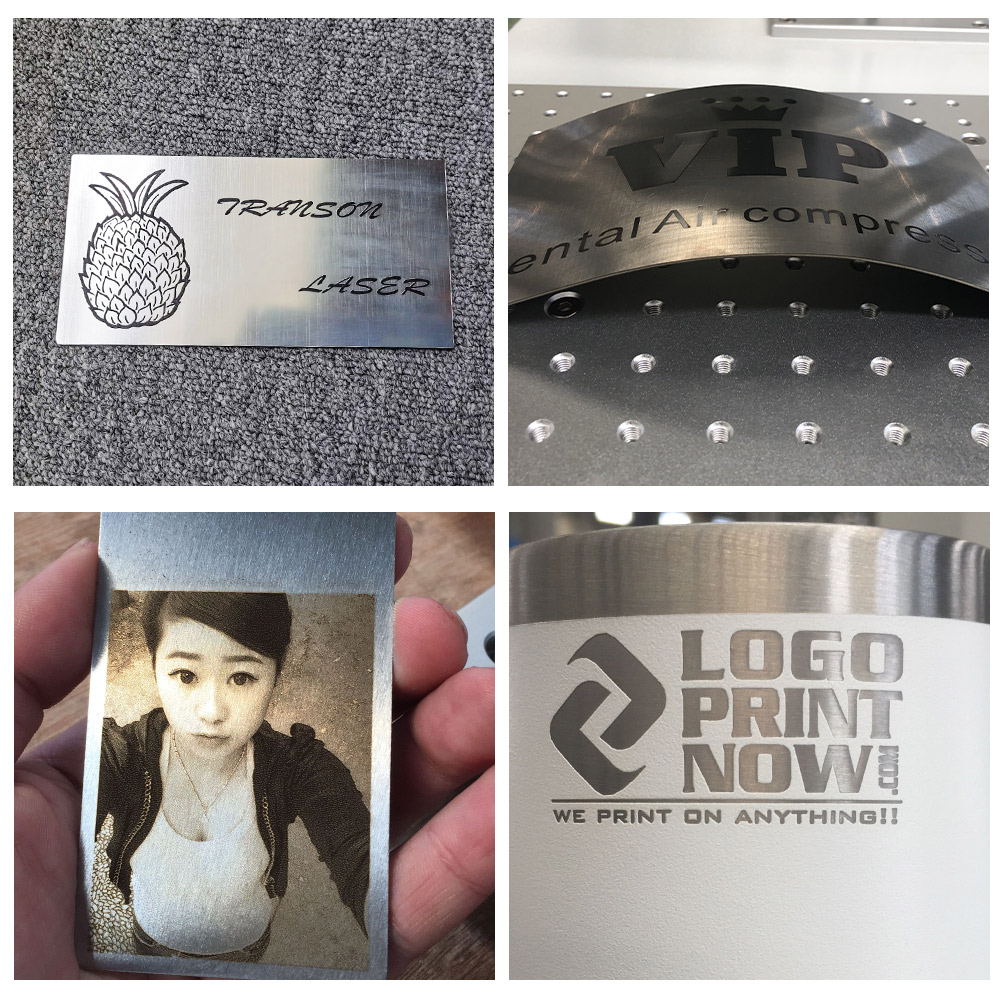

Application

This Fiber Laser Marking Machine Can Mark All Metals And Some Nonmetals
Metals: Gold,Silver,Stainless Steel,Copper,Aluminum, Brass,etc
Alloy and metal oxides: Anodized Aluminum
Some non-metallic materials: silicon wafer, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.

Marking Pens

Marking Brass

Marking Gold

and Silver

Marking Stainless

Marking Titanium Steel

Marking Plastic

Certifications

CE, FDA, ISO9001, Certificate of Original

All our CNC machines are CE, FDA certified, and transon factory with ISO9001 certified. What's more, we can offer users certification of original for get better tax when they import.

Factory&Exhibition

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer found in 2010. We specialized in manufacture of fiber laser cutting machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter, and we support OEM.
After 10 years growth, Transon CNC has won an excellent reputation in the global market. Our CNC machines have sold to more than 100 countries and we have some long-term cooperate agents in Euro, Asia and South America. We are looking for distributors all over the world, welcome worldwide customer come to visit our factory to cooperate.

Good Feedback

Our products are well received

FAQ

FAQ:
Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010, all our CNC machines are assemble and calibrate by our full experience engineers.

Q2: Where are you located? How can we visit you?
A: We welcome worldwide customer visit us anytime. Factory locates in Jinan city of Shandong, in the north of China, near Beijing
and Qingdao.

Q3: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1).What work you will do?
2). What work table size you will need?

Q4: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, and Alibaba Trade Assurance.
Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set

Q5: What's your quality control system?
A: All our CNC machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send
you test video and photos for confirm.

Q6: What's your after-sales service?
A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years. Wholelife maintanence.
2) Engineers available service machinery overseas
3) 7X24hours online support and whole life maintenance.

Q7: If I don't know how to use the machine, can you teach me?
A: There is a U disc send together with the machine including machine install video, some video of how to use machine, user manual
and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
1) Online call or video call (Email, Skype, Whatsapp, Wechat, Phone)
2) Remote desktop software (Team viewer)
