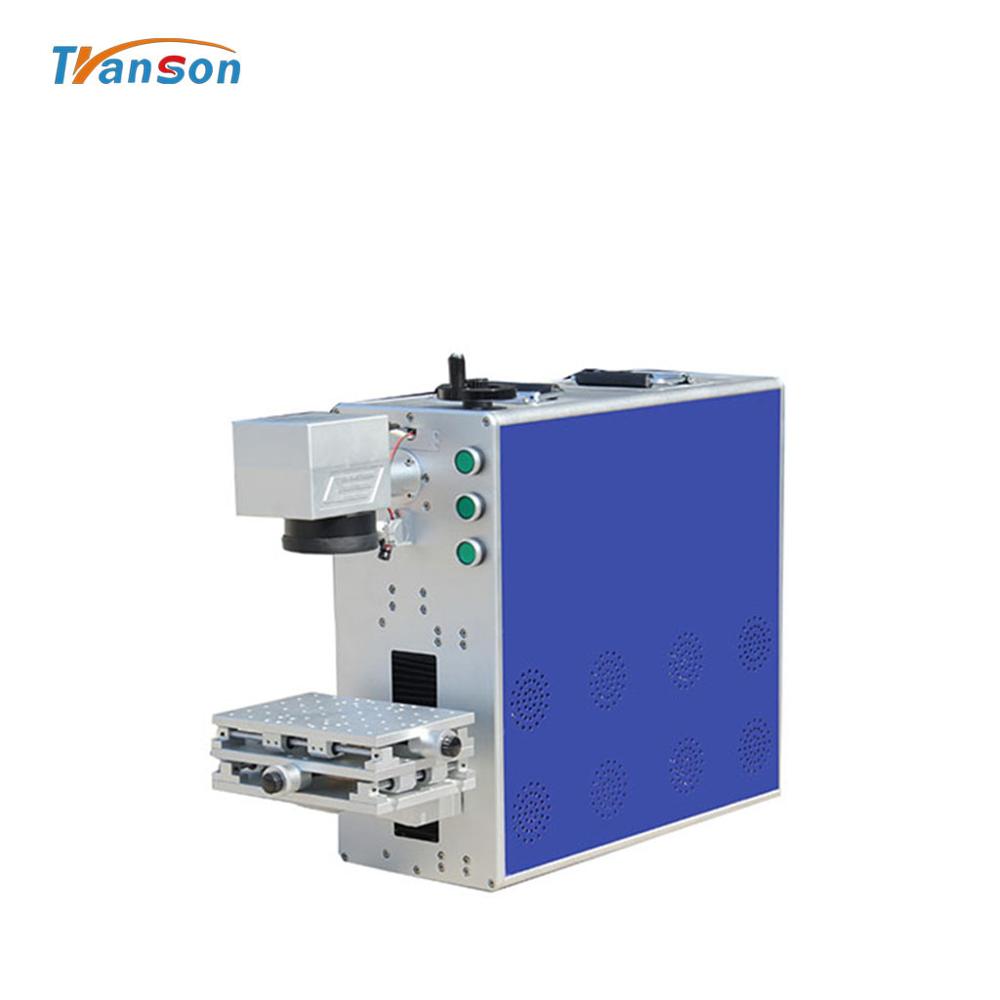

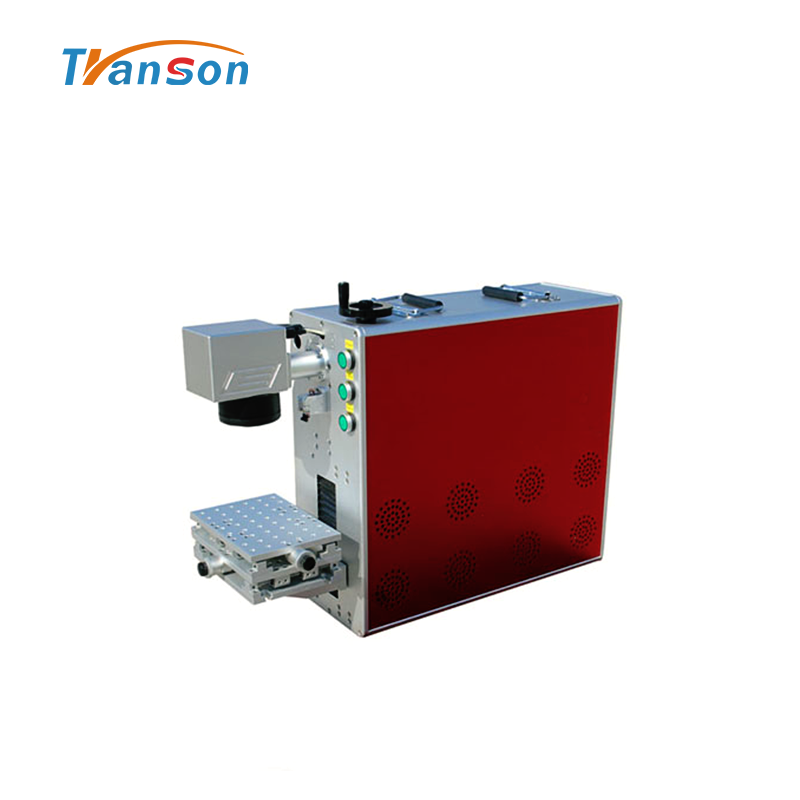

20w Portable Fiber Laser Marking Machine

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: <1mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, DXP, JPG

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FEDS

Laser Source Brand:: RAYCUS

Control System Brand:: Transon

Marking Head Brand:: SINO

Weight (KG):: 39 KG

Key Selling Points:: Easy to Operate

Warranty:: 2 years

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Hotels, Building Material Shops, Manufacturing Plant, Home Use, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Non Metal Material

After Warranty Service:: Video technical support, Online support

Local Service Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Product name:: Portable Fiber Laser Marking

Laser source:: REYCUS

Laser Power:: 20W/30W

Working area:: 110*110 Standard

Lifespan of laser device:: 100, 000 Hours

Marking Depth:: <1mm

Marking material:: Metal and nonmetal

Laser wavelength:: 1064 nm

Marking Speeed:: <7000mm/s

Keywords:: Laser Markng Machine

Supply Ability

Supply Ability:: 100 Set/Sets per Month

Product Description

Portable Fiber Laser Marking Machine can be marking for metal and Nonmetal Materials. The characters are long life span, high precision, low maintenance easy to carry suitable Shipping by Air-timely Delivery.

Model	TSF
Laser type	Fiber Laser
Laser power	20W/30W
Beam quality	M2<1.5
Laser wavelength	1064±1nm
Power adjustment range	10-100%
Output fiber length	1~2m
Frequency of pulse	20-250KHz
Power supply	220V/60HZ /8A(110V/60HZ/15A can choose)
Cooling system	Air Cooling
Graphic format supported	DWG.DXF.PLT.CNC.GBR.DST.AL.BMP
		XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Workng area	110mm*110 mm(Standard)
Marking depth	<1mm
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-450W
Operation temperature	0~40°C
Operation system	Microsoft Windows 7, 8, 10 system
Operating environment	Clean and free of dust
Warrant	Two vears

Product details

Handlifting Focusing lens Switch

Galvanometer Scanner A-red B-blue

2D Working stage

Optional Parts

Rotary device Lens field Laser goggles

Application

Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances,
communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle,cooking utensils, stainless steel products and other industries.

Applicable Materials

Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating
materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.

Packing and Shipping

Certifications

Exhibition

Our factory

Using this product will help manufacturers to hire more highly skilled workers who are equipped with technical machine know-how. This, in turn, will make the manufacturers more competitive. It is compatible with software such as CAD or Adobe. Pressures to reduce costs and maximize profits have encouraged many manufacturers to choose this product. It is really effective in improving productivity. It is compatible with software such as CAD or Adobe.
