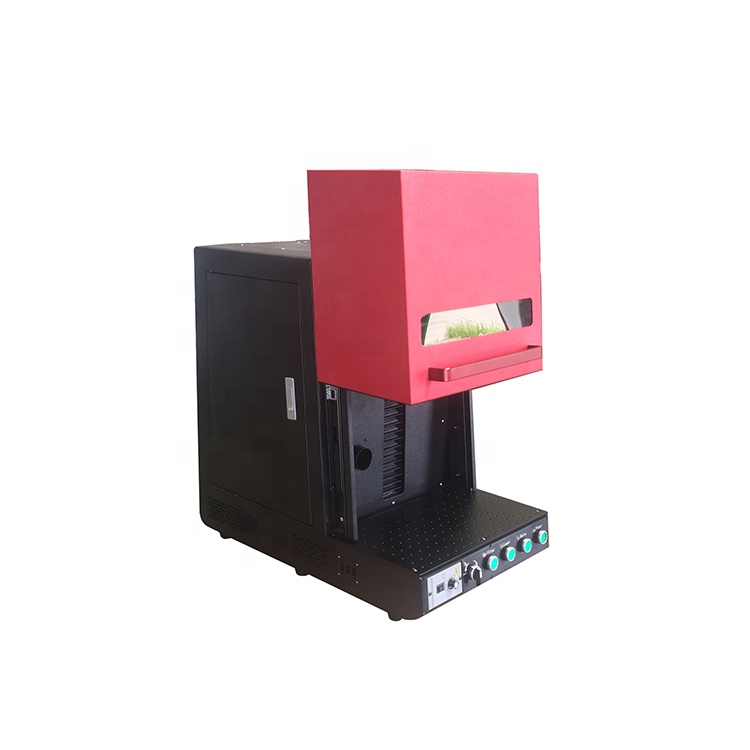

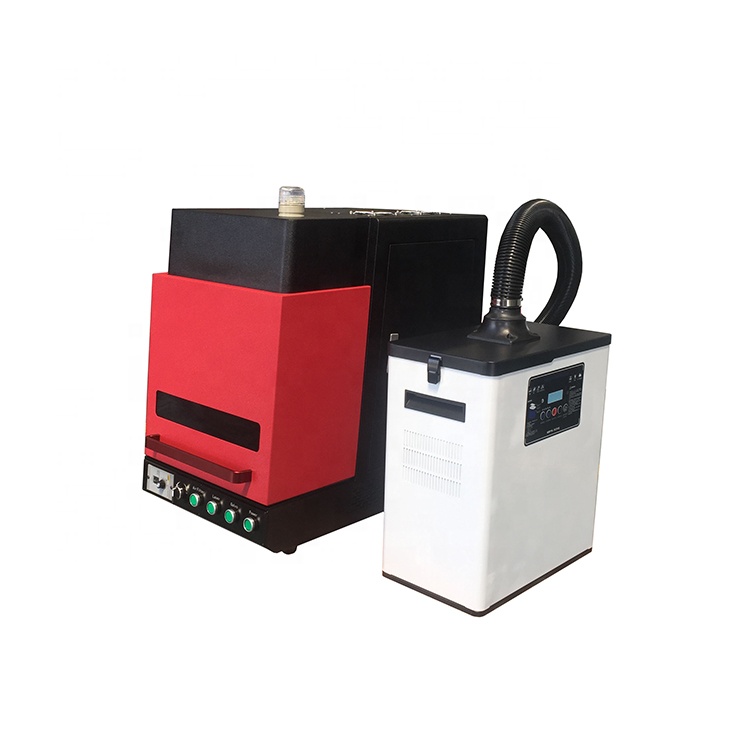

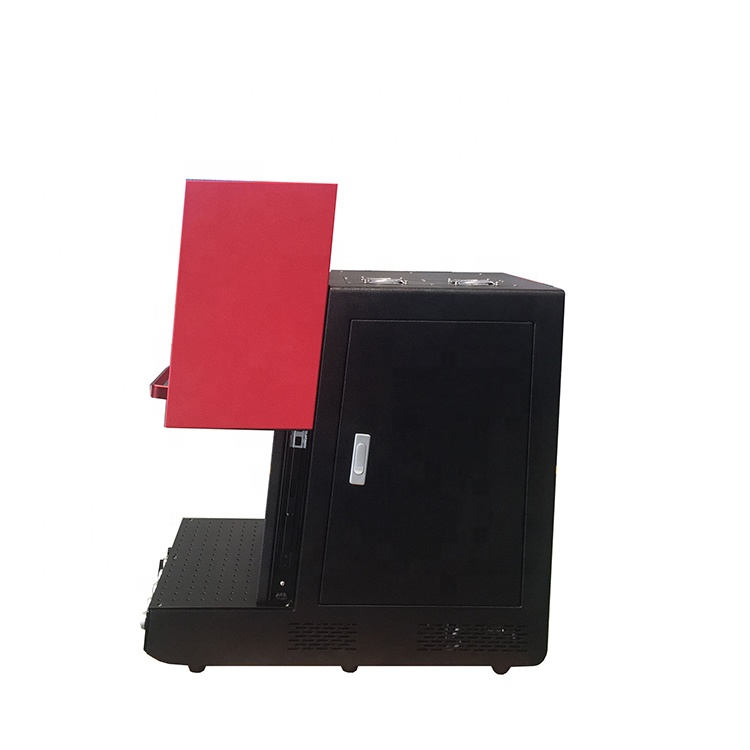

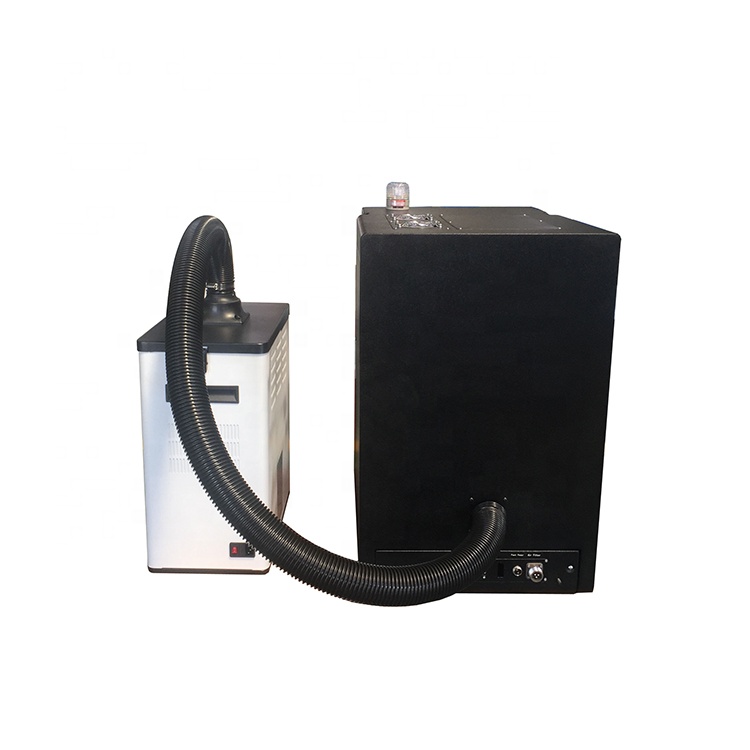

20w Metal Desktop Mini Fiber Laser Marking Machine For Jewelry...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0.002mm

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: /

Control System Brand:: /

Warranty:: 1 Year

After-sales Service Provided:: Field maintenance and repair service

Applicable Industries:: Manufacturing Plant

Beam quality:: M2< 1.5

Laser wavelength:: 1064±1 nm

Power adjustment range:: 10~100%

Output fiber length:: 1~2m

Frequency of pulse:: 20~250KHz

Power supply:: 220V/60Hz /8A (110V/60Hz /15A can choose)

Working area:: 110mm*110 mm(Standard) can choose 150*150mm 200*200mm 300*300mm

Marking depth:: <1mm

Marking speed:: <5000mm/s

Min. line width:: 0.05mm

Supply Ability

Supply Ability:: 200 Set/Sets per Month mini fiber laser marking machine

Portable mini Air Cooling optical fiber laser marking machine

Application materials:
Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
Alloy and metal oxides: Anodized Aluminum
Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.

Application Industry:
1.Electrical Engineering and Electrical part and component
2.Mobile (Cover, battery, keyboard, IPhone Case)
3.Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4.Building materials,PVC pipe
5.Car motor car spare part, Instrument and meters and cutting tool
6.plastic case,aviation and aerospace,
7.military product,hardware fitting and accessory,sanitary appliance
8.food and beverage ,Medicine package and medical instrument,solar Pv industry

Mini Fiber Laser Marking Machine
Model	TSF
Laser type	Fiber Laser
Laser power	20W
Beam quality	M2< 1.5
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~250KHz
Power supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling system	Air Cooling
Graphic format supported	DWG.DXF.PLT.CNC.GBR.DST.AI.BMP
	XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Working area	110mm*110 mm(Standard)
Marking depth	<1mm
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-450W
Operation temperature	0~40°C
Operation system	Microsoft Windows 7, 8, 10 system
Operating environment	Clean and free of dust
Warranty	Two years

This product is becoming a must for the domestic and international market. With a compact design, it has a small footprint. With continuous improvement, the product is believed to have greater sales growth in the future. With a compact design, it has a small footprint.

20w Metal Desktop Mini Fiber Laser Marking Machine For Jewelry Ring Bracelet
