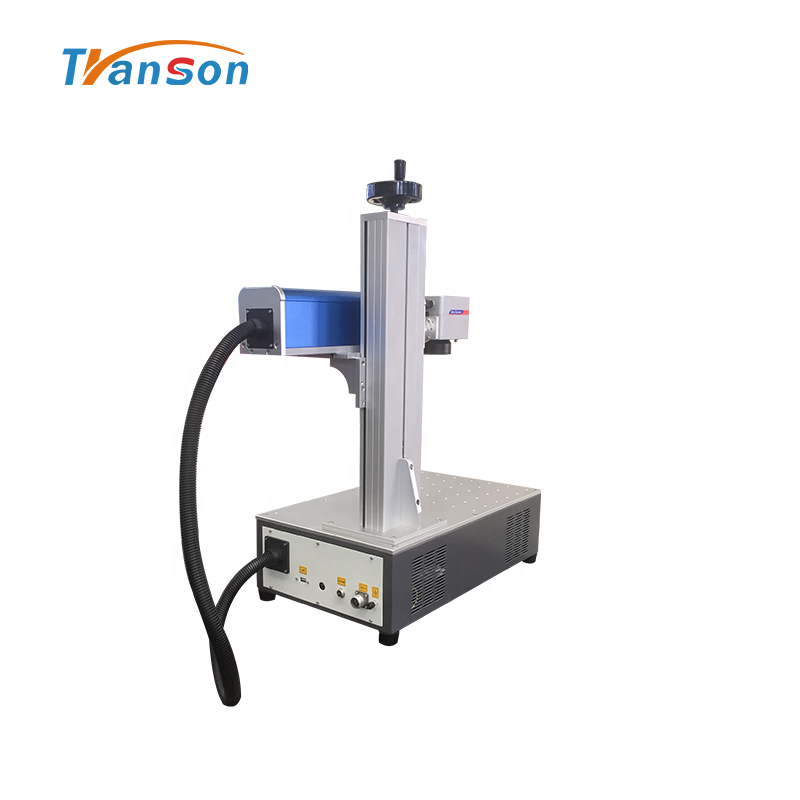

20w Economical Super Mini Fiber Laser Marking Machine For Aluminium...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: 0 ~0.5mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, DXP, JPG

Laser Type:: Fiber Laser

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: Super

Control System Brand:: JCZ

Marking Head Brand:: SINO

Weight (KG):: 150 KG

Key Selling Points:: Easy to Operate

Warranty:: 2 years

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Hotels, Building Material Shops, Manufacturing Plant, Home Use, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Non Metal Material

After Warranty Service:: Video technical support, Online support

Local Service Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Marking Area:: 110mm*110mm

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: Not Available

Core Components:: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine

Product name:: mini fiber marking machine - Dynamic focusing

Laser source:: RayCus

Laser Power:: 20W/30W/50W

Working area:: 200*200mm

Lifespan of laser device:: 100, 000 Hours

Marking Depth:: 0 ~0.5mm

Marking material:: Non Metal and Metal

Laser wavelength:: 1064 nm

Marking Speeed:: <7000mm/s

Keywords:: 30w engineering plastics Mini 20W Fiber Laser Marking Machine

Supply Ability

Supply Ability:: 100 Set/Sets per Month

Product Description

Fiber laser engraving machine have widely application on jewellery processing field, such as rings, bracelet, necklace, chains etc. Both we can use it on gold&silver cutting and engraving.

FIBER LASER MARKING MACHINE Advantage
1) Under operation system: windowns xp , windowns 7 ,windows8/10
2) Support Characters , digital, series NO, Date codes
3) Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix Font,One-Dimensional bar code,
Two-Dimensional bar code , and so on
4) Common types of images are supported. (bmp, jpg, gif, tga, png, tif...)
5) Common vector images are supported. (ai, dxf, dst, plt...)
6) Flexible variable text : changes the text real time while in laser processing . Excel datasheet is supported.
7) Dometic and Imported fiber laser source.
8) Excellent optical mode, long operating life, up to 100,000HS
9) The highest electro-optical conversion efficiency, up to 80%, but gross power less than 600W
10) Small size, steady, without maintenance, easy to operate
11) High precision, suited for fine processing on all metal and some non-metal.
12) This machine adapts the fiber laser and has high electro- optical conversion rate, the quality of laser beam is good,cooling
with air- cooling methods, it has smaller shape, low power and much more energy-efficient.
13) Divergent Angle is about a quarter of the pump laser semiconducto, especially mainly used in precise, fine marking,low using
cost, electro-optic conversion efficiency is up to 30% .

Model	TSF-20/TSF-30/TSF-50
Laser type	Mini Fiber Laser
Laser power	20W(30W/50W optional)
Beam quality	M2<1.5
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~250KHz
Power supply	220V/60HZ/8A(110V/60HZ/15A can choose)
Cooling system	Air Cooling
Graphic format supported	Image Files: BMP.JPG.JPEG.GIF.TGA.PNG.TIF. TIFF
Graphic format supported		Vector Files: Al.PLT. DXF.JPC.SVG.NC.G.BOT.GBR. DST
Working area	Standard:110110mm, Optional:5050mm,7575mm,150150mm,175mm175mm,200200mm,300*300mm
Marking depth	<1mm
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability accurac	0.003mm
Power Machine	300w-800w(Depend on fiber laser power)
Operation temperature	0~40°C
Operation system	Compatible with Microsoft Windows XP、7、8、10 system
Operating environment	Clean and free of dust
Warranty	Three years
Packing /Package size	650mm350mm860mm/840mm450mm380mm
Net /Gross Weight	36kg/56kg

Product details

Hand lifting Focus lens

Control Buttons Galvanometer Scanner

Optional parts

Rotary device 2D worktable

Lens field Lens goggles

Application

Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances,
communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle,cooking utensils, stainless

Applicable Materials

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin,ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

Plastic

Aluminum

Stainless steel

Packing and Shipping

Our laser machines package include 3 layers: 1, Outside package: Polywood case with metal belt 2, Middle package: We use foam to cover the machine. 3, Inner package: We use waterproof plastick bag to cover all the machine.

Certifications

Exhibition

Our factory

Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC router and Laser engraver. Our purpose is supply the machines with best ratio in quality to price. Our machine has exported to worldwide, such as: Uk, Poland, Finland, Croatia, Italy, Holland, United States, Mexico, Brazil, Colombia, Canada, Argentina, Russia, India, Thailand, Singapore, Malaysia, U.A.E an so on. We welcome more and more clients come to visit our factory and use our machine. In order to establish a long term business, we will give our distributor maximum profits to support your efforts to resell our products in your markets.Welcome friends from worldwide to visit our fatory and give us your valuable suggestions. We wish to establish long business relationship and friendship with you.

FAQ

Q1: Are you a factory or trading company? A: We are a manufacturer found in 2010. Q2: Where are you located? How can we visit you? A: We locates in Jinan city of Shandong, in the north of China.Tell us your flight nimber or train number,we will pick you up. Q3: How can I choose suitable machine? A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us: 1) What work you will do? 2) What work table size you will need? Q4: What's your payment terms? Delivery time and MOQ? A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc. Usually we need 30% as deposit, balance paid before shipment. Delivery Time: 7-10 days after payment MOQ: 1set Q5: If I bought a machine, how could you make it safe while shipping. A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case. Q6: What's your quality control system? A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm. Q7: What's your after-sales service? A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years. 2) Engineers available service machinery overseas 3) 7X24hours online support and whole life maintenance. If you have any other questions, please write email to us or call us, we will reply you ASAP.

It has good economic value and broad market acceptance. It is available with powers to suit the requirement. Transon has the most advanced machine to test the quality of laser marking machine before its loading. It is available with powers to suit the requirement.
