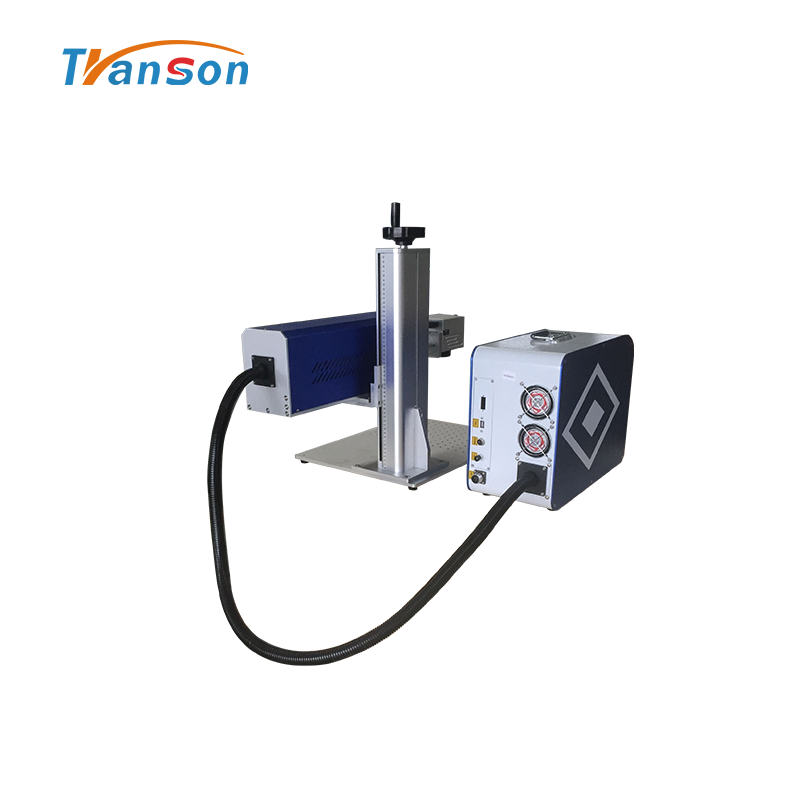

20w Co2 Industry Laser Equipment Laser Marking Machine

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: <0.03mm

Graphic Format Supported:: AI, PLT, BMP, Dst, TIF

Laser Type:: CO2

Condition:: New

CNC or Not:: Yes

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: DAVI

Control System Brand:: Transon

Marking Head Brand:: SINO

Weight (KG):: 82 KG

Key Selling Points:: High Safety Level

Warranty:: 1 Year

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Video technical support, Online support

Local Service Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Marking Area:: 110mm*110mm

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Product name:: 20w CO2 Laser Marking Machine

Laser Power:: 20W/30W

Laser source:: DAVI

Applicable Material:: Non-metal Materials

Keywords:: Co2 Laser Marking Machine

Marking area:: 100*100mm,200*200mm

Name:: CO2 Laser Marking Machine

Laser wavelength:: 10.6μm

Marking Speed:: ≤7000mm/s

Marking Depth:: ≤0.3mm(adjustable according to materials)

Supply Ability

Supply Ability:: 100 Set/Sets per Month

Product Description

What is the application area of CO2 laser marking machine ? The main processing object is non-metal, widely used in food packaging, pharmaceutical packaging, architectural ceramics, clothing accessories, leather, fabric cutting, craft gifts, rubber products, electronic components packaging, shell nameplate and so on. Suitable for paper, wood, glass, leather and other materials.

Characture:
1) High precision marking, swift, engraving depth controllable.
2) Applied on most of non-metal material.
3) Excellent beam quality, high photoelectric conversion efficiency, good performance and can be competent at fine processing.
4) Windows interface adopted, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, etc.
5) Support PLT,PCX, DXF,BMP and other formats, execute SHX, TTF font directly, support automatic code, serial number, batch
number, two-dimensional bar code marking, and garphic anti marking function available.

Type	TS-CO2-20W
Laser power	20W
Laser Wavelen gth	10 . 6μm
Laser Repetition Fre quency	≤25KHZ
Marking Area	100mm100mm / 200mm200mm
Marking Deep	≤0 . 3mm
Linear Speed	≤7000mm / s
Min.Line Width	0 . 1mm
Min.Letter	0 . 4mm
Repeatable Accuracy	±0.01mm
Gross Power	0.8-1 5KW
Power Requirement	220V / 50HZ
Package size	1180mm630mm510mm
Grosse weight	80kg
Cooling system	Air Cooling
Machine size	1000mm700mm400mm
Packing size	1080mm780mm410mm
Gross weight	82kg

Product details

Control button Hand lifting Galvanometer Scanner

Worktable

Scale column CO2 RF Laser Device Red dot pointer

Optional parts

2D Worktable Rotary Device Field lens

Laser goggles Outsider red dot pointer

Application

Applicable Industries

RF CO2 Laser Marking Machine is widely used in shoes, clothing, packaging, toys, food, beverages, glasses, communication products, auto parts, luggage buckle, medicine, cosmetic, beverage, wine, mineral water,chemical products, tobacco, plastic & rubber product accessories, building materials and other manufacturing products or packaging.

Applicable Materials

Paper, plastics, wood, glass, acrylic, painted pottery, leather and other non-metallic materials and oxidation plating paint.

Packing and Shipping

Our laser machines package include 3 layers: 1, Outside package: Polywood case with metal belt 2, Middle package: We use foam to cover the machine. 3, Inner package: We use waterproof plastick bag to cover all the machine.

Exhibition

Certifications

Our factory

Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC router and Laser engraver. Our purpose is supply the machines with best ratio in quality to price. Our machine has exported to worldwide, such as: Uk, Poland, Finland, Croatia, Italy, Holland, United States, Mexico, Brazil, Colombia, Canada, Argentina, Russia, India, Thailand, Singapore, Malaysia, U.A.E an so on. We welcome more and more clients come to visit our factory and use our machine. In order to establish a long term business, we will give our distributor maximum profits to support your efforts to resell our products in your markets.Welcome friends from worldwide to visit our fatory and give us your valuable suggestions. We wish to establish long business relationship and friendship with you.

FAQ

Q1: Are you a factory or trading company? A: We are a manufacturer found in 2010. Q2: Where are you located? How can we visit you? A: We locates in Jinan city of Shandong, in the north of China.Tell us your flight nimber or train number,we will pick you up. Q3: How can I choose suitable machine? A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us: 1) What work you will do? 2) What work table size you will need? Q4: What's your payment terms? Delivery time and MOQ? A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc. Usually we need 30% as deposit, balance paid before shipment. Delivery Time: 7-10 days after payment MOQ: 1set Q5: If I bought a machine, how could you make it safe while shipping. A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case. Q6: What's your quality control system? A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm. Q7: What's your after-sales service? A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years. 2) Engineers available service machinery overseas 3) 7X24hours online support and whole life maintenance. If you have any other questions, please write email to us or call us, we will reply you ASAP.

The product can have a positive impact on a company’s efficiency, enabling employees to work faster and increase productivity. Being computer numerical controlled, it requires fewer labor costs. It significantly reduces waste in production because of how accurately this product can operate. This will eventually help reduce production costs. Being computer numerical controlled, it requires fewer labor costs.
