1530 Metal And Nonmetal Laser Cutting Machine W8 150W

这里可以自定义设置
1530 Metal And Nonmetal Laser Cutting Machine W8 150W
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
LASER CUTTING
Applicable Material:
Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crytal
Condition:
New
Laser Type:
CO2, CO2 Sealed Laser Tube, Water-cooled
Cutting Area:
1500*3000mm
Cutting Speed:
0-18000mm/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, DXP
Cutting Thickness:
0-20mm
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
MetalCut
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Warranty:
1 Year, 1 Year
After-sales Service Provided:
Online support, Free spare parts, Video technical support, Overseas service center available
Metal Laser Cutting Machine Power:
Reci W8 150W
Working area:
1500mm*3000mm
Software supported:
CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut
Motor And Driver:
Stepper (servo optional)
Package Size:
3920*2270*1110mm
Net weight:
1000kgs
Gross Weight:
1150kgs
Supply Ability
Supply Ability:
200 Set/Sets per Month
Video Description

1530 Metal And Nonmetal Laser Cutting Machine W8 150W



Features: enable to cut metal and nonmetal



1, Cut thin metal sheet, with living focus system

W6: stainless steel max 1.2mm, carbon steel max 2mm

W8: stainless steel max 1.5mm, carbon steel max 3mm



2, Engrave and cut almost all nonmetal material











Machine Parameters:



Transon Metal and Nonmetal CO2 Cutting Engraving Machines

Model

Cabinet model: TSH1290/ TSH1390/ TSH1490/ TSH1610/

Flatbed model: TSH1318/ TSH1325/ TSH1530

Working Area

1200*900mm/ 1300*900mm/ 1400*900mm/ 1600*1000mm

/1300*1800mm/ 1300*2500mm/ 1500*3000mm

Laser Power

150W/180W/280W/300W

Laser Type

CO2

Cooling Type

Water Cooling

Cutting Speed

20m/min

Power Requirement

110V/220V, 50HZ/60HZ

Min. Shaping Character

English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Graphic Format Supported:

RLD file. Import: PLT, DST, DXF, AI,DSB... Export: PLT

Software Supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Control System

Ruida DSP control system

Machine Work Software

MetalCut

Laser Output Control

1-100% by setting in the software

Interface

USB

Operating Temperature

0-45 ℃

Operating Humidity

5-95%

Spare Parts

Extra laser tube/Extra 1 lens and 3 mirrors

Compatible PC

Windows XP/ 7 /8 / 10  PC



Product Details







Application

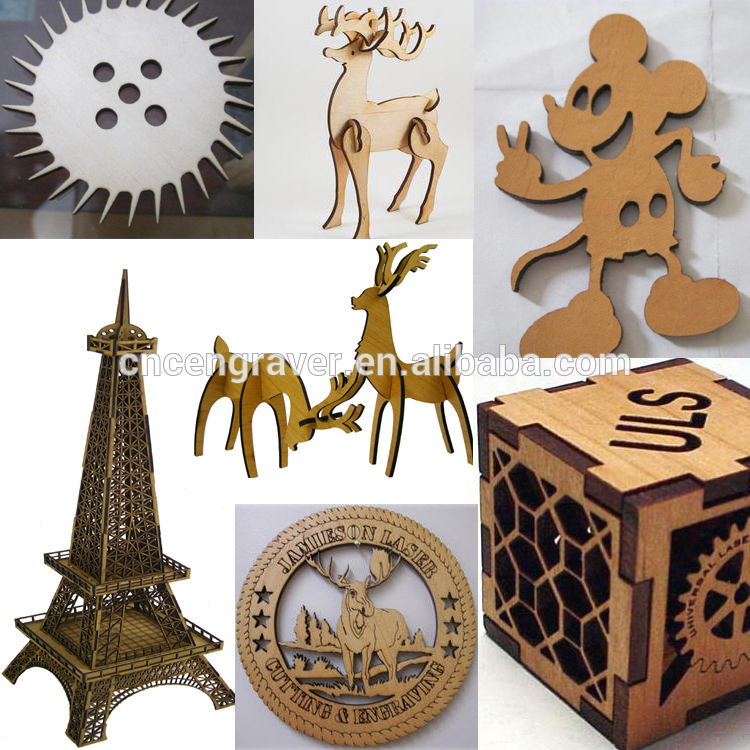

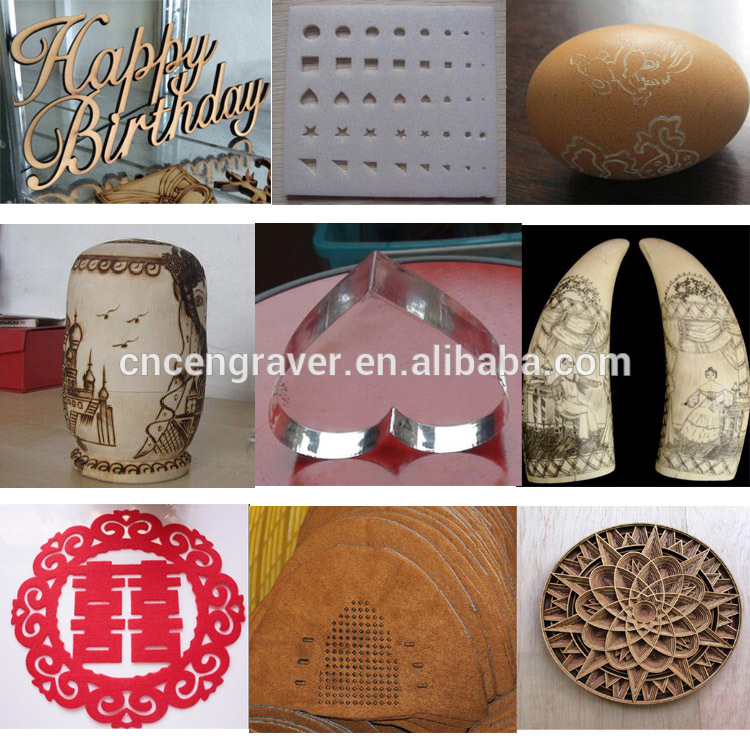

More sample we tested:



Packaging & Shipping

Our laser machines package include 3 layers:

1, Outside package: Polywood case with metal belt

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof plastick bag to cover all the machine.



 One set TSH1530 metal and Nonmetal laser cutting machine mainly include the following:

1,1500*3000mm worktable size
2, Reci W8 150-180W laser tube
3, CW5200 water chiller to cool glass tube
4, Metal slat worktable (Motorized up and down function optional)
5, Stepper motor and driver
6, Air fan and air hose 3 sets
7, Air assist pump 1 set
8, Auto living system for cut metal
9,Tool box include all data lines, U disk, user manual, etc.





Company Information

 Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer with ability of research and development, design and production. Our products include fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter.



Transon CNC has won an excellent reputation in the golbal market. We are cooperating with many well-known companies all over 100 counties, including Turkey, United Kingdom, United States, Korea, russia, Peru, Chile, etc. We alos maintain a friendly long-term cooperation with domestic laser research institues all over the years.















FAQ

Q: Are you a factory or trading company?

A: We are a manufacturer.

Q: Where are you located? How can we visit you?

A: We locates in Jinan of Shandong, in the north of China.

Q: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:

1) .What work table size you will need?

2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?

A: We accept T/T(bank transfer), L/C, Paypal, West union, Alibaba Trade Assurance, etc.

Delivery Time: 7-10 days after payment

MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.

A: We have a professional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?

A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: What's your after-sales service?

A: 1) Warranty 1 year for whole machine.

2) Engineers available service machinery overseas

3) Full operator training

Q: If I don't know how to use the machine, can you teach me?

A: 1) There is a U disc including machine user manual and software user manual c/w machine.

2) Online (skype, phone, Whatsapp, Wechat, etc.)

3) Remote desktop software (Team viewer)

4) Demo Video

Q:This is my first time buy machine from China, how i buy machine from you?

A:Choose suitable machine through talking with our seller manager → Pay to us→ manufacture and testing machine(about 2-3 workdays) →shipping to you



This product greatly meets customers' particular requirements with its outstanding characteristics. It features an air-cooled motor design. The product is popular in domestic and foreign market and has remarkable market potential. It features an air-cooled motor design.
