100w Large Format Dynamic Focusing Laser Marking Machine...

Overview

Quick Details

Application:: Laser Marking

Working Accuracy:: <0.03mm

Graphic Format Supported:: AI, PLT, DXF, BMP, TIF

Laser Type:: CO2

Condition:: New

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: DAVI

Control System Brand:: Transon

Marking Head Brand:: SINO

Weight (KG):: 495 KG

Key Selling Points:: High Safety Level

Warranty:: 1 Year

After-sales Service Provided:: Online support, Video technical support

Applicable Industries:: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Video technical support, Online support

Local Service Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Marking Area:: 110mm*110mm

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: PLC, Laser source

Product name:: 100W CO2 Laser Marking Machine

Laser Power:: 100W 150W

Laser source:: DAVI

Applicable Material:: Non-metal Materials

Keywords:: Co2 Laser Marking Machine

Marking area:: 600x600mm (optional 1200x1200mm)

Name:: CO2 Laser Marking Machine

Laser wavelength:: 10.6μm

Marking Speed:: ≤7000mm/s

Marking Depth:: ≤0.3mm(adjustable according to materials)

Supply Ability

Supply Ability:: 100 Set/Sets per Month

Product Description

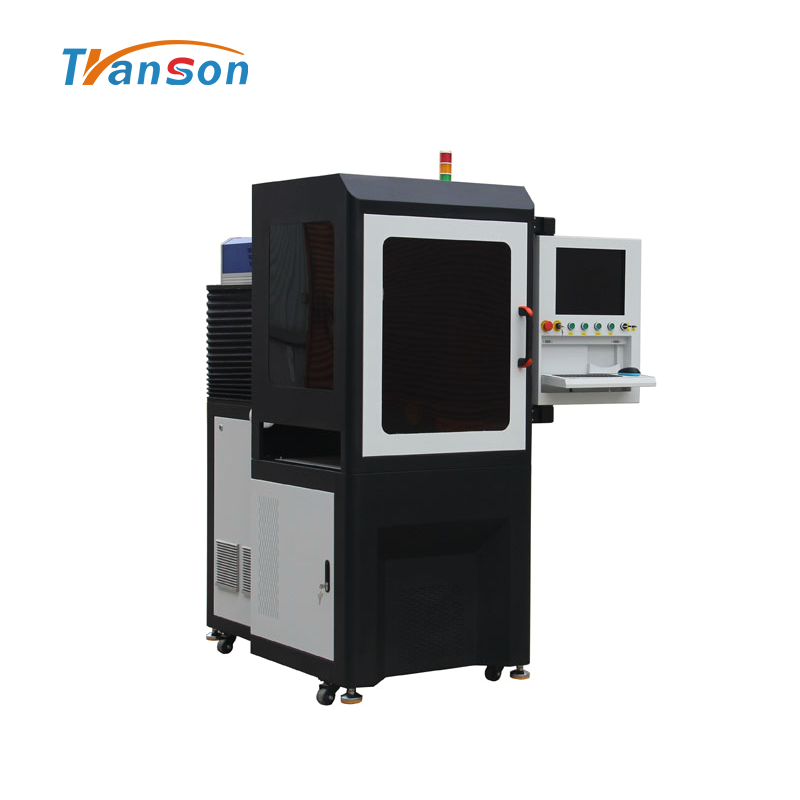

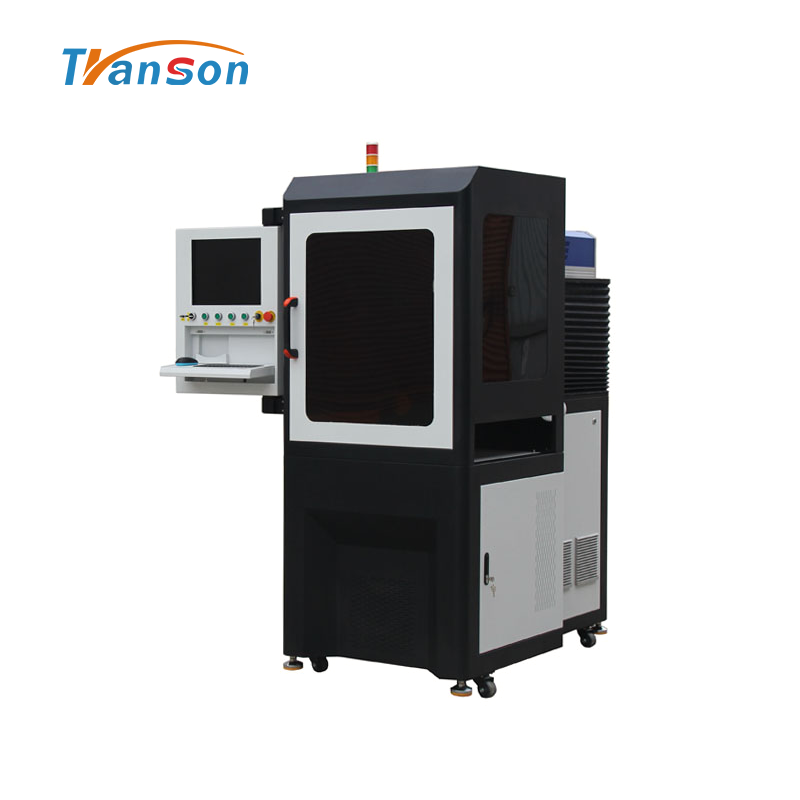

Large Format Dynamic Focusing Co2 Galvo Laser Marking Machine

The CO2 laser marking machine is equipped with a made-in-China radio frequency laser (metal seal) or a glass laser tube, a fast-speed scanning system with vibrating mirrors and its control system. The CO2 laser marking machine is specially developed for the industries like apparel, leather, artwork and craft and so on to cut and engrave fast on various non-metal materials so as to double the added-value of original products.

Laser power	DAVI 100W RF tube (100W, 150W optional)
Cooling System	Water Cooling
Laser Wavelength	10.6μm
Motor	Servo motor
Making Area	600x600mm (optional 1200x1200mm)
Making Depth	≤0.3mm(adjustable according to materials)
Linear Speed	≤7000mm/s
Min.Line Width	0.1mm
Min.Letter	0.4mm
Repeatable Accuracy	±0.01mm
Electricity Source	220V/50Hz
Operate System	Windows 7/ 8 /10 with big monitor, keyboard, mouse
Operate software	MM3D (support CoreDraw, Photoshop ,AutoCAD, Illustrator, etc.)
Format Support	DWG,DXF,PLT,CNC,GBR,DST,XMLAI,TXT,NC,LPF,AMF,EPS,BMP,CMP,CAL,CUR,EMF,FPX,ICO,WMF,PSD,PNG,JPG,TIF,TGA,PCX,
Suitable for	Nonmetal materials marking or leather cloth quickly cutting
Gross weight	495kgs
Plywood box size	188x110x203cm

Product details

Control buttons and key board

Control cabinet

Honeycomb

LCD screen

Marking head

Multi sockets

RF laser tube

Up down part

Application

Applicable Industries

Glasses industry, leather products, clothing industry, wood products industry, craft gifts, packaging industry and other industries.

Applicable Materials

This kind of CO2 Laser Marker is widely applied for most of the non-metallic materials, such as leather, cloth, wood, bamboo,paper, organic materials, acrylic and some painted metal materials.

Packing and Shipping

Our laser machines package include 3 layers: 1, Outside package: Polywood case with metal belt 2, Middle package: We use foam to cover the machine. 3, Inner package: We use waterproof plastick bag to cover all the machine.

Exhibition

Certifications

Our factory

Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC router and Laser engraver. Our purpose is supply the machines with best ratio in quality to price.Our machine has exported to worldwide, such as: Uk, Poland, Finland, Croatia, Italy, Holland, United States, Mexico, Brazil, Colombia, Canada, Argentina, Russia, India, Thailand, Singapore, Malaysia, U.A.E an so on. We welcome more and more clients come to visit our factory and use our machine. In order to establish a long term business, we will give our distributor maximum profits to support your efforts to resell our products in your markets.Welcome friends from worldwide to visit our fatory and give us your valuable suggestions. We wish to establish long business relationship and friendship with you.

FAQ

Q1: Are you a factory or trading company? A: We are a manufacturer found in 2010. Q2: Where are you located? How can we visit you? A: We locates in Jinan city of Shandong, in the north of China.Tell us your flight nimber or train number,we will pick you up. Q3: How can I choose suitable machine? A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us: 1) What work you will do? 2) What work table size you will need? Q4: What's your payment terms? Delivery time and MOQ? A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc. Usually we need 30% as deposit, balance paid before shipment. Delivery Time: 7-10 days after payment MOQ: 1set Q5: If I bought a machine, how could you make it safe while shipping. A: We have a professional package suitable for oversea transportation. Machine will be fixed well in the case. Q6: What's your quality control system? A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm. Q7: What's your after-sales service? A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years. 2) Engineers available service machinery overseas 3) 7X24hours online support and whole life maintenance. If you have any other questions, please write email to us or call us, we will reply you ASAP.

The product helps save a substantial amount of manpower. By using this product, people can get the same results while employing fewer workers. It is suited for the use of rotary devices, allowing one to engrave cylindrical objects. For manufacturers, the product brings about enormous economic benefits, because it helps improve productivity and cut expenditure on labor. It is suited for the use of rotary devices, allowing one to engrave cylindrical objects.
