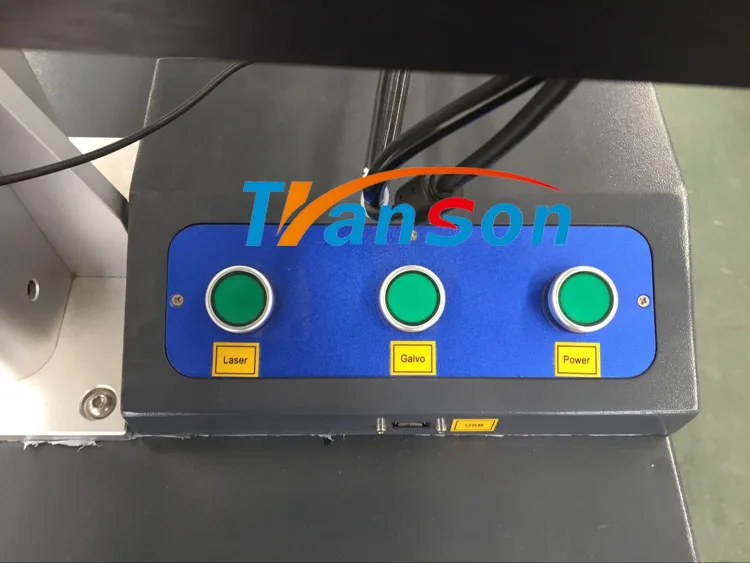

Main buttons:

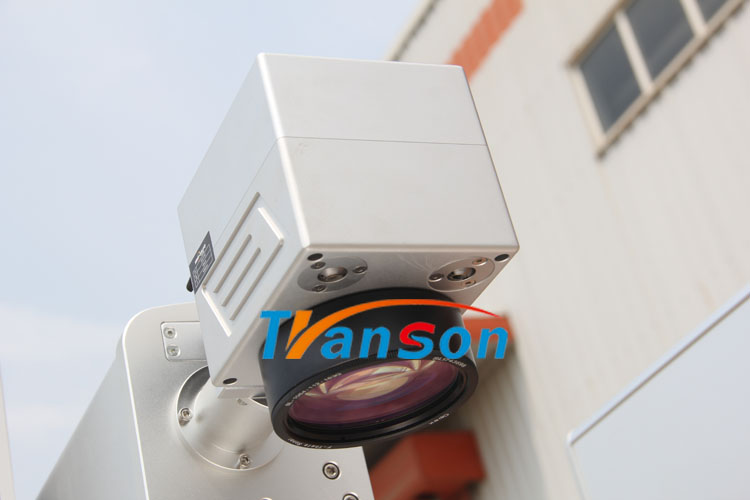

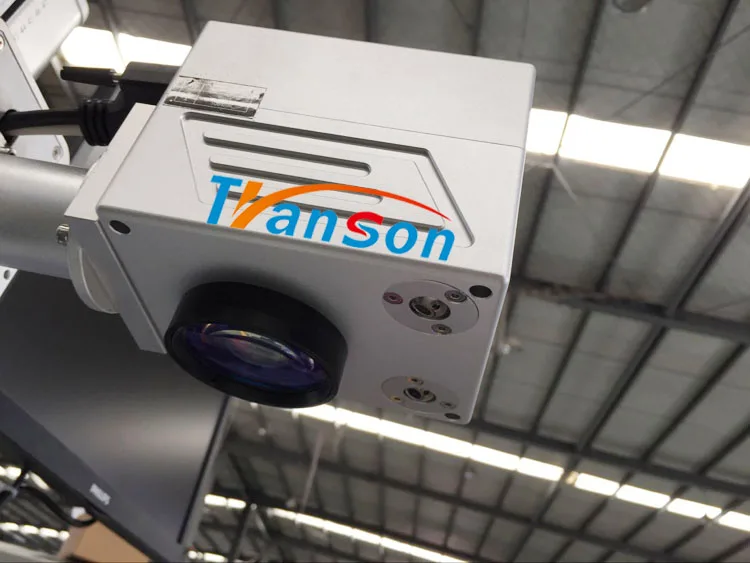

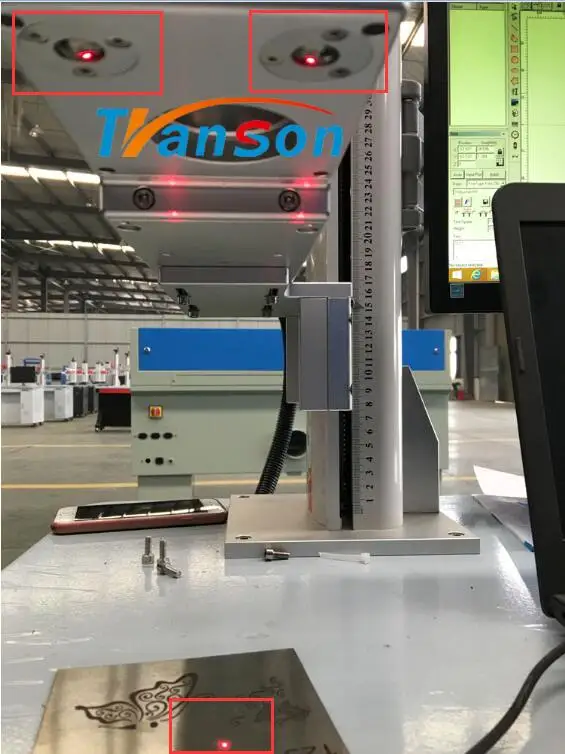

Scan head with inner red dot pointer and out red dot pointer:
Move the handle to move up or down the scan head, when the two red combined to one dot, means find the focus length, no need use ruler to find focus length any more!
Application materials & Industry:
Many type of metails: Gold,Siliver,Stainless Steel,Copper,Aluminum,chrome Brass,etc,
Alloy and metal oxides:Anodized Aluminum,Some non-materials & Special surface treatment silicon wafer.Poly urethane,ceramics,plastic,rubber,epoxy resin,PVC.PC.ABS,Coating film etc.Electrical Engineering and Electrical part and component, Mobile(Cover,battery, keyboard,IPhone)case, jewelry(Ring, pedeant, bracelet), eyeglass,clocks and craft, Building materials, PVC pipe, Car moter car spare part, Instrument and meters and cutting tool.
1). Wide range: Can be used on many materials like metal, plastic, leather, alloy etc. Can be used in many industries like Jewelry engraving, medical devices, phone case engraving, hardware industry, stainless steel tableware, electron components marking etc.
2). Permanent marking: Laser marking is a permanent marking. It won’t fade, run or become less discernible as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.
3). Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
4). Easy to operate: Support almost any windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.
5). High precision: 0.003mm re-position accuracy. Minimum line width 0.01mm.
6). Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.
7). Portable: Small footprint, easy to move and transportation.

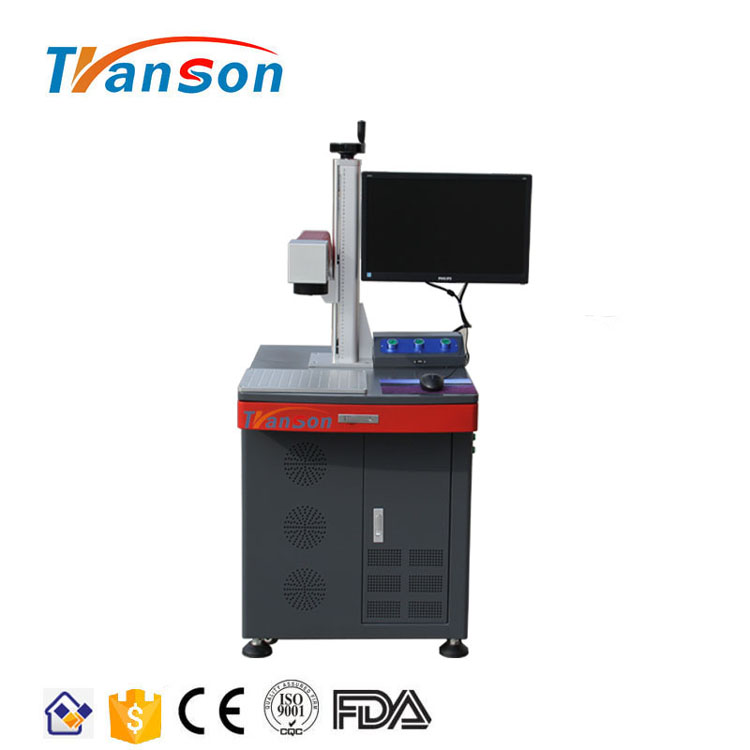

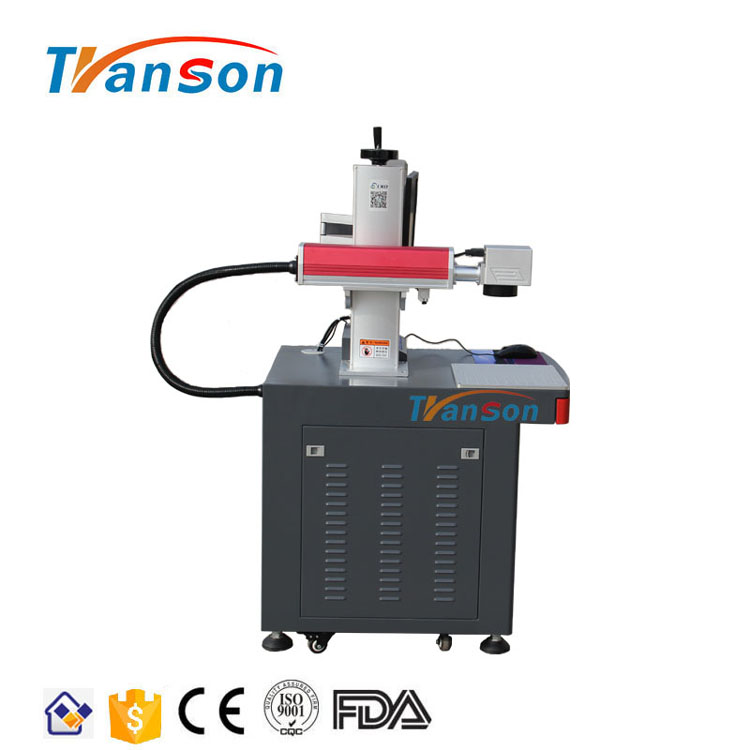

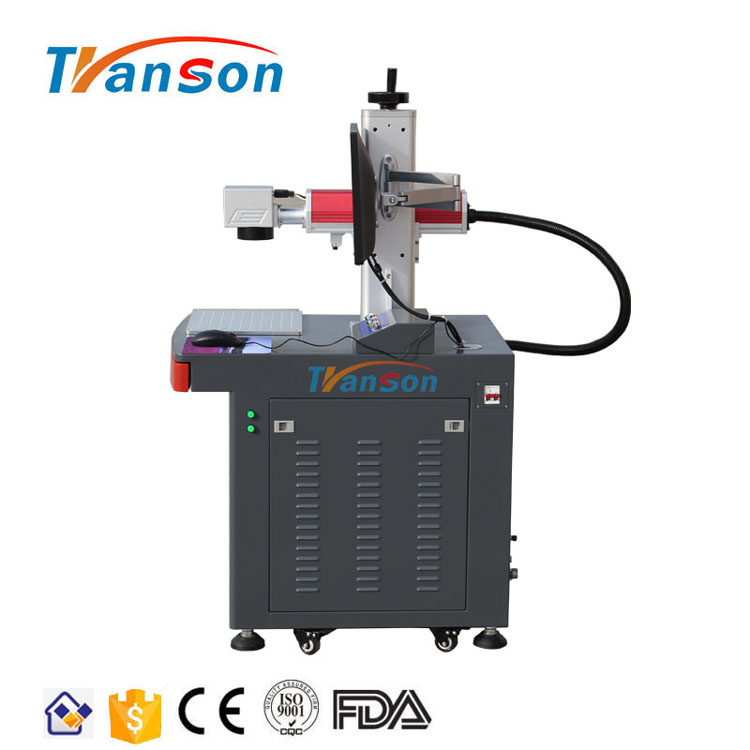

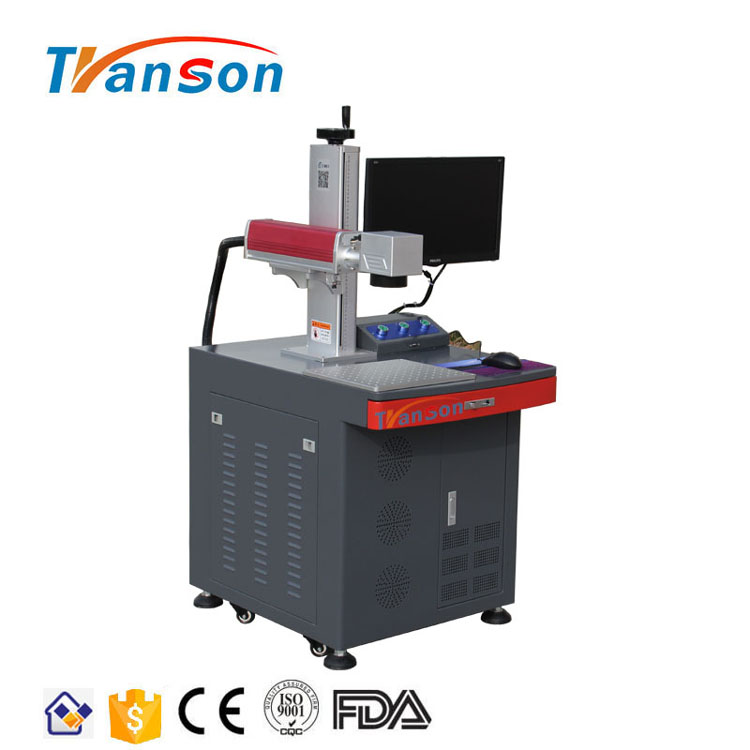

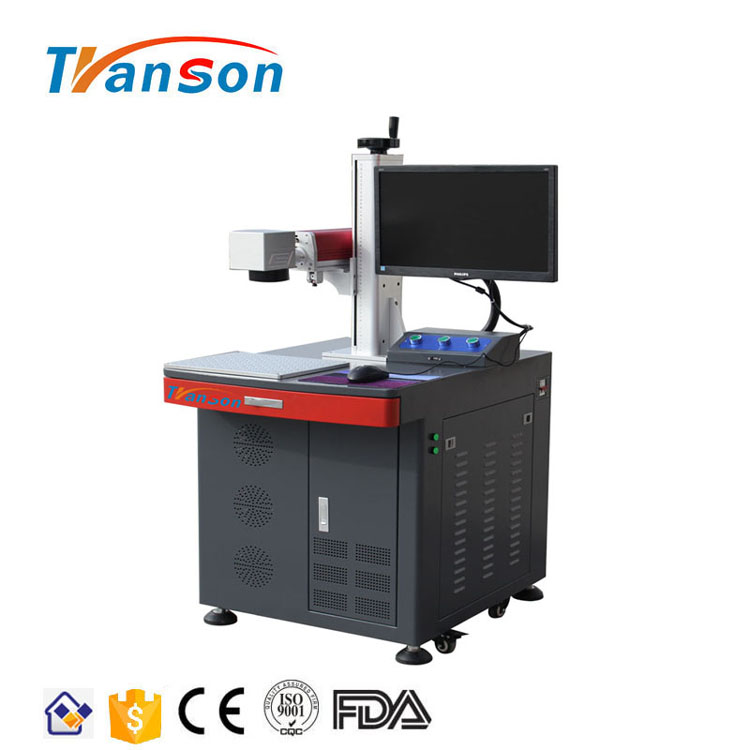

Transon Desktop Fiber Laser Marking machine | |
Model | TSF-100 |
Laser type | Fiber Laser |
Laser power | 100W (20W 30W/50W/60W/70W/120W optional) |
Beam quality | M2< 1.5 |
Laser wavelength | 1064±1nm |
Power adjustment range | 10~100% |
Output fiber length | 1~2m |
Frequency of pulse | 20~250KHz |
Power supply | 220V/60Hz /8A (110V/60Hz /15A can choose) |
Cooling system | Air Cooling |
Graphic format supported | DWG.DXF.PLT.CNC.GBR.DST.AI.BMP |
EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG | |
XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA | |
Working area | Standard: 110*110mm, Optional: 50*50mm, 75*75mm, 150*150mm, 175mm*175mm, 200*200mm, 300*300mm. |
Marking depth | <1mm |
Marking speed | <7000mm/s |
Min. line width | 0.05mm |
Repeatability accuracy | 0.003mm |
Power Machine | 300W-800W(Depend on fiber laser power) |
Operation temperature | 0~40°C |
Operation system | no, can compatible with Microsoft Windows 10 system |
Operating environment | Clean and free of dust |
Warranty | Three years |
If need any optional parts, please contact our sales for details price, the promotion price do not include any optional parts.
1.Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
2.Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
