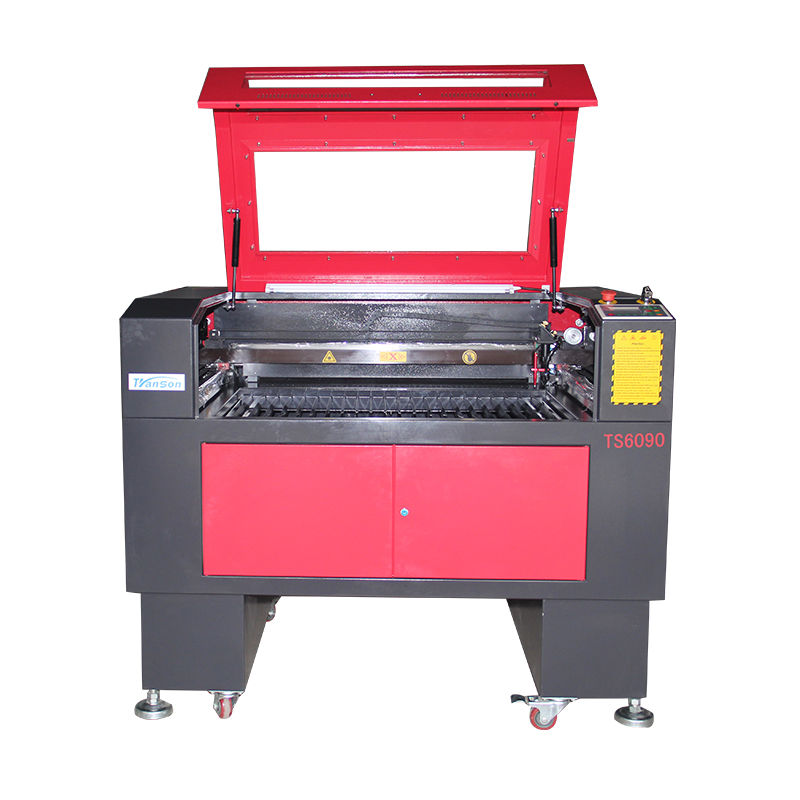

Easy To Use Glass Laser Cutting And Drilling Machine Ts6090s

Overview

Quick Details

Application:: LASER CUTTING

Model Number:: TS6090S

Applicable Material:: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crytal

Condition:: New

Laser Type:: CO2

Cutting Speed:: 0-40000mm/min

Graphic Format Supported:: AI, BMP, Dst, DXF, PLT

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: ArtCut, PhotoShop (Conversion output)

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO

Laser power:: 60W/80W

Engraving speed:: 0-70000mm/min

Power supply:: 220V/50HZ , 110V/60HZ

Min. shaping character:: English 1.0 x 1.0mm

Operating temperature:: 0 - 45°C

Equipment size:: 1350mmx950mmx970mm/53.1in*37.4in*38.2in (60W)

Driving system:: 2 phases stepper motor

type:: headstone laser engraving machines

After-sales Service Provided:: Engineers available to service machinery overseas

Cutting Area:: 90cm*60cm / 35in*24in

Supply Ability

Supply Ability:: 30 Set/Sets per Month

Product description:

In order to meet the demands of deep materials processing, TS laser flat bed adopts the hardened stable underpan made of reinforced material, linear guides and precise gear driving system are used to assure the stability and precision to save time and cost reduction.
Features:
Lower Flat worktable with back door, the distance between laser head and the work table is up to 25cm. It's very convenient for thick and long materials processing.

Parameters

Model	TS6090S
Working area	90cm60cm / 35in24in
Laser power	60W
Laser type	CO2 sealed laser tube, water-cooled,10.6um
Engraving speed	0-60000mm/min
Power supply	220V/50HZ , 110V/60HZ
Min. shaping character	English 1.0 x 1.0mm
Communication interface	USB
Laser output control	1-100% software setting
Software	Lasercut software
Highest Scanning Precision	2500DPI
Locating precision	≤±0.01mm
Operating temperature	0 - 45°C
Work table	Harden Flat plate table
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	ArtCut, PhotoShop (Conversion output) CorelDraw, AutoCAD, Lasercut (Direct output)
Equipment size	1350mmx950mmx970mm/53.1in37.4in38.2in
Package size	1460mmx1060mmx1200mm/57.4in41.7in47.2in
Net Weight	230Kgs
Gross Weight	300Kgs
Spare Parts Recommend (R): Laser Tube(R), Lens(R), Mirror(R)
Optional Parts: 1. Water chiller 2. Rotary tool with rollers/Rotary tool with clips 3. Red dot positioner

Mavhine Manufacture process

Machine standard and optional parts

Sample

Factory

Solution Laser customers

Guarantee & Aftersales Service

1.Guarantee for one year

2.24-hour technical support by email or calling

3.User-friendly English manual for machine using and maintaining

4.Free technician training for large customers.

More model

Warranty
1.12 Months for Machine 2. 3 Months for laser tube, lens and mirror 3. 6 Months for equipments outside, such as water pump, fan, air pump, etc. 4. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material. 5. Lifely and fast technical guide and solution within 24hours by email and web camera.

Warranty

1.12 Months for Machine

2. 3 Months for laser tube, lens and mirror

3. 6 Months for equipments outside, such as water pump, fan, air pump, etc.

4. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.

5. Lifely and fast technical guide and solution within 24hours by email and web camera.

Questions and answer:

Q1.how to get the most suitable machine and best price

please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2: Do you have the manual of machine.

Yes,we have

Q3.If we donot know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.

And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,

like tickets and hotel and meal.

Q4.How about your after-sales service?

we offer you 24 hours service phone,skype or MSN.

Q5.How about your guarantee period?

one year and during the time,if you have any questions ,we will solve it for free.

As a professional manufacturer we can supply different model according

to your different materials. So you also can tell me

1. What materials do you need to process? non metal material?

2. What is the size and thickness of each materials you want to cut?

3. What is your business scope? Are you an end user or distributor?

We will be very happy to help you in any way we can.

Our laser marking machine has a good reputation and market share in some overseas market. It features an air-cooled motor design. Jinan Transon CNC Equipment Co., Ltd. has grown significantly and earned a reputation for leadership, quality and integrity in its respective field. It features an air-cooled motor design.
